AMADA EU: H 1300 II, H 1600 II & H 2116 II Extra Large Capacity Band Saws

When sections become extra-large, you need a machine that can keep up

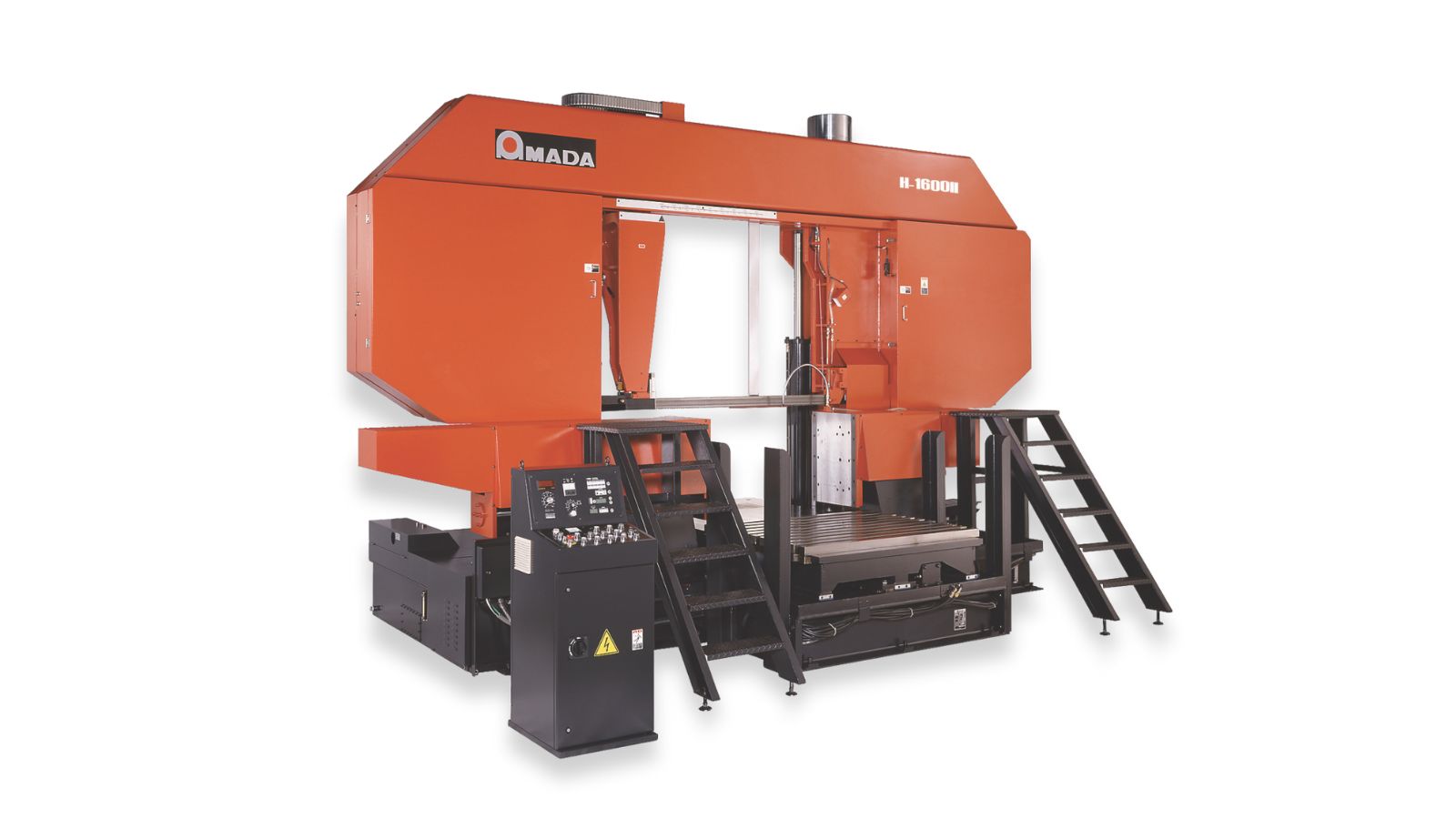

The AMADA H 1300 II, H-1600 II and H 2116 II are part of AMADA’s largest range of horizontal bandsaws and are designed for cutting materials of extremely large dimensions and weight.
These are semi-automatic machines that allow the workpiece to be positioned via push-button control; once the required length is reached, the cutting cycle runs automatically according to the preset parameters.
In these models, the table itself moves to feed the workpiece into the cut, ensuring precise positioning and stable handling even of very heavy loads.
This ensures precise positioning and stable handling, even with very heavy loads.
This range represents the ideal AMADA solution for industrial applications where structural rigidity, precision and operational continuity are essential requirements.

CUTTING DEPTH SETTING FUNCTION

The depth setting function allows controlled cutting on large raw materials, making it possible to obtain multiple finished parts of different sizes from a single workpiece.

HIGH-RIGIDITY SUPPORT COLUMN

The support column is designed to withstand the cutting of very heavy materials, ensuring stability, precision and control even in the most demanding applications.

REINFORCED STRUCTURE FOR LONG SERVICE LIFE

The machine’s reinforced structure ensures maximum rigidity and long service life, even under intensive and continuous operating conditions.

VISUAL ALIGNMENT OF THE CUTTING LINE

The cutting position can be easily determined thanks to a light beam that projects the blade line directly onto the workpiece, simplifying and speeding up positioning operations.

AUTOMATIC RAPID APPROACH

The rapid approach device automatically brings the blade close to the workpiece, reducing idle time and improving overall cycle efficiency.

Hotspots

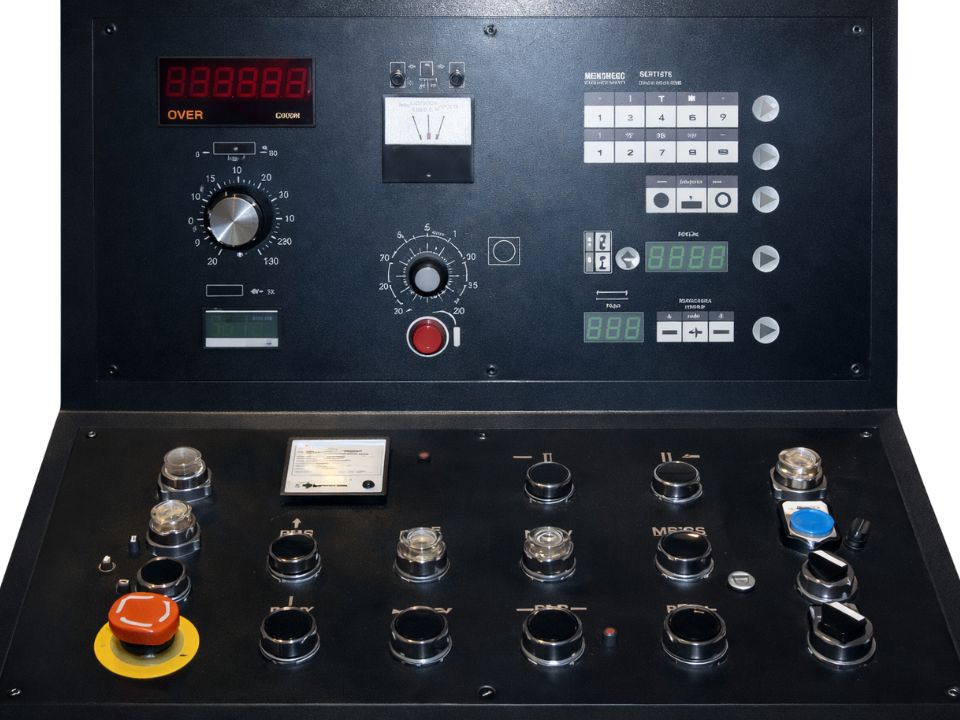

INTUITIVE CONTROL PANEL The operator panel enables simple and immediate management of cutting parameters. The basic cutting conditions, pre-set by AMADA, allow even less experienced operators to achieve reliable and high-performance results.

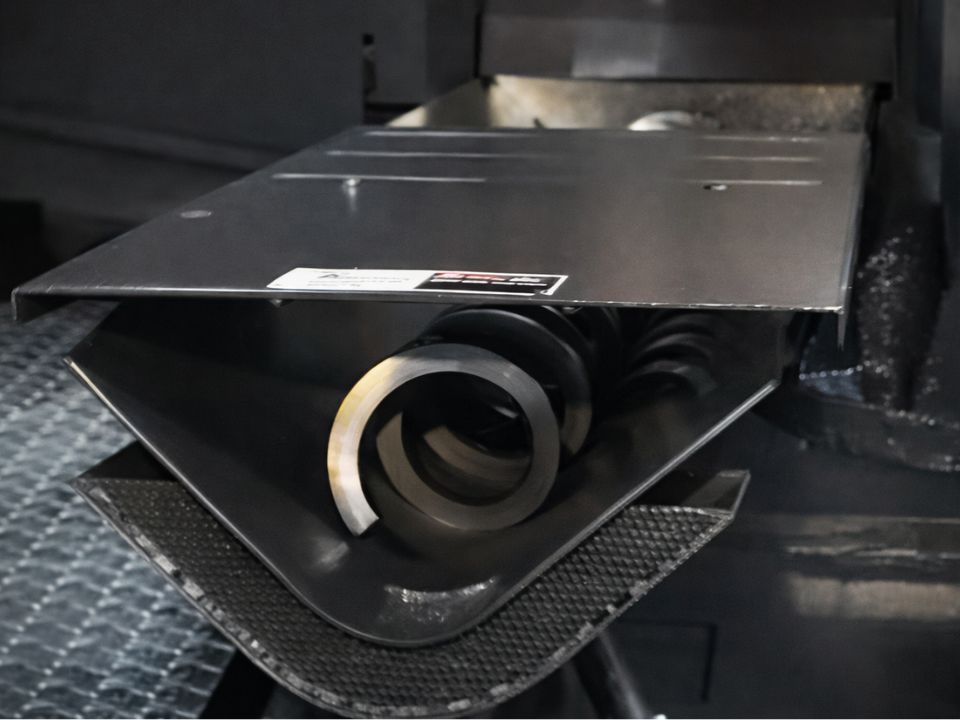

SCREW CHIP CONVEYOR The integrated chip conveyor continuously removes chips generated during cutting, keeping the work area clean even when processing large sections and heavy loads.

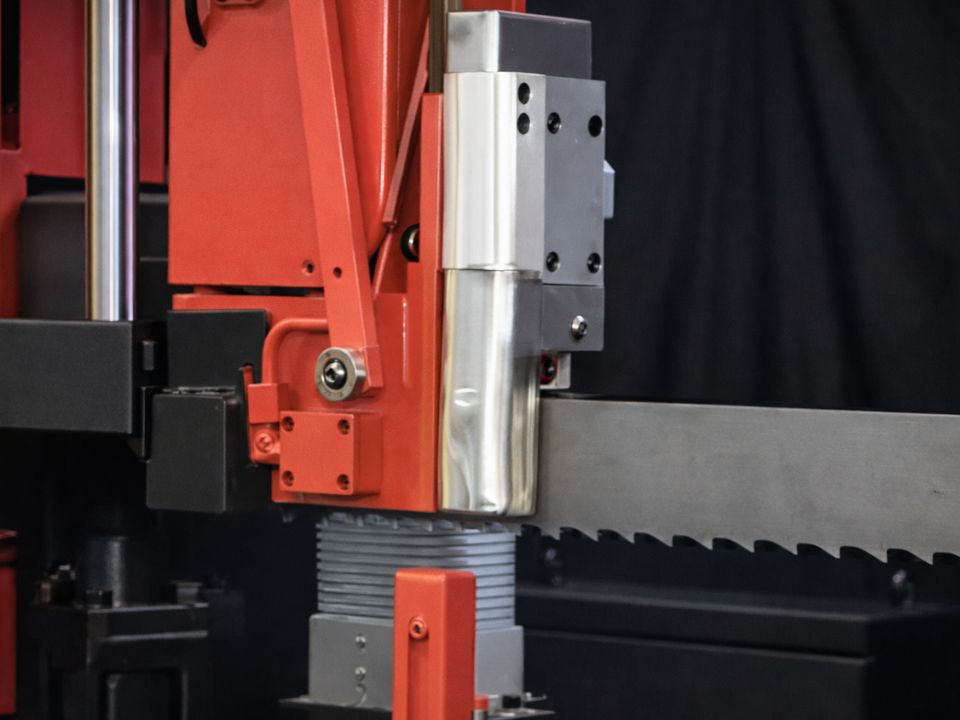

BLADE DEVIATION SENSOR The sensor continuously monitors the cutting angle; if the blade exceeds the preset tolerance, the machine stops automatically, preventing scrap and reducing the risk of blade breakage.

SCREW CHIP CONVEYOR The integrated chip conveyor continuously removes chips generated during cutting, keeping the work area clean even when processing large sections and heavy loads.

			H 1300 II	H 1600 II	H 2116 II
Cutting capacity	Round material	mm	φ 500 ~ φ 1300	φ 600 ~ φ 1600	φ 600 ~ φ 1600
	Min. square material	mm	☐ 600 ~ ☐ 1300	☐ 600 ~ ☐ 1600	☐ 600 ~ ☐ 1600
	Max. square material	mm	☐ 600 ~ ☐ 1300	☐ 600 ~ ☐ 1600	☐ 600 ~ ☐ 2100
Bundle cutting capacity	No
Minimum cutting length manual mode		mm	10	10	10
Minimum cutting length automatic mode		mm	10	10	10
Blade drive motor		kW	15	15	15
Installed power		kVA	24	35	35
Blade size	(W x T x L)	mm	80 x 1.6 x 12300	80 x 1.6 x 15500	80 x 1.6 x 16500
Blade speed		m/min	15 ~ 70	15 ~ 60	15 ~ 60
Feed carriage stroke	Single repeatable stroke	mm	1800	1800	1800
Control unit			CNC	CNC	CNC
Maximum load capacity		kg	24000	40000	40000
Table height		mm	700	810	750
Machine dimensions	(W x L x H)	mm	5597 x 4300 x 3479	7407 x 4895 x 4314	7921 x 4917 x 4320
Machine weight		kg	18500	30000	30000
