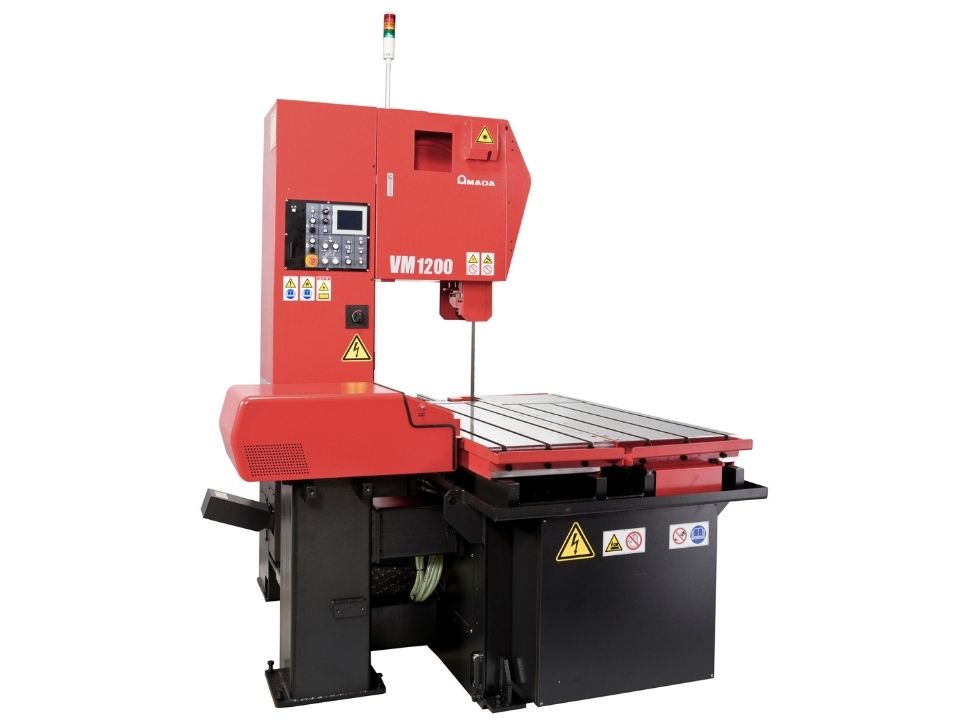

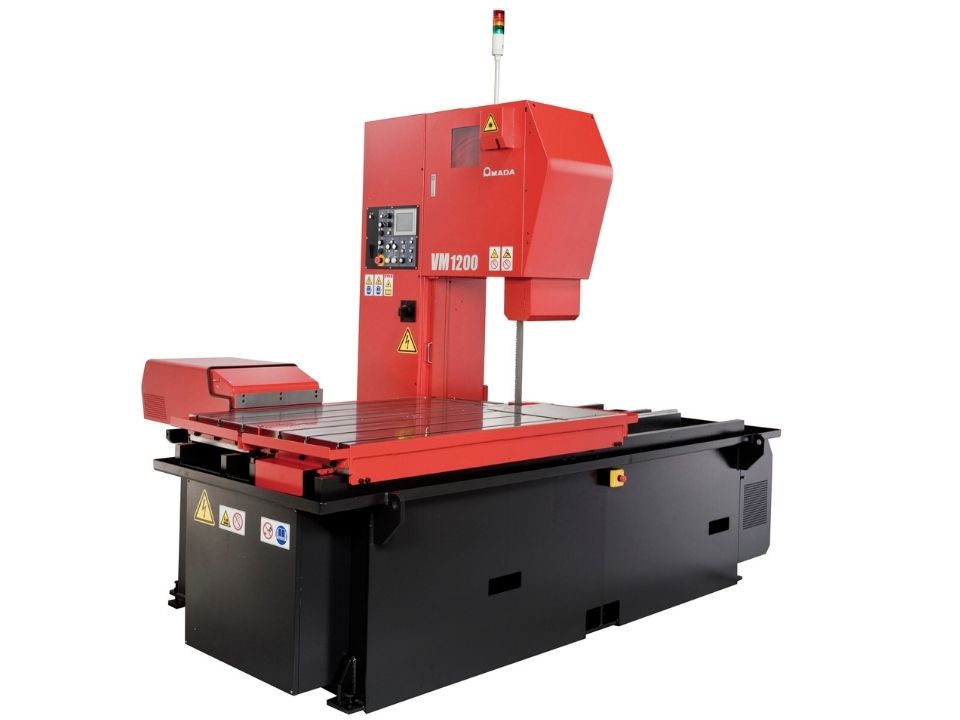

VM 1200

COMPACT AND PRECISE FOR VERTICAL CUTTING OF PLATES UP TO 1,200 MM

/
Back to list
  1. Products
  2. Cutting, Milling & Grinding
  3. Bandsaw Machines
  4. Vertical Plate Saws​
  5. VM 1200

Vertical efficiency and versatility for medium-to-large plates and blocks

The VM 1200 is the ideal solution for cutting medium to large plates and solid blocks with precision and consistency. The vertical cutting configuration simplifies material positioning and reduces setup and handling time, resulting in a cleaner and more efficient cutting process.
Designed for 41 mm bimetal blades, it is compatible with carbide blades and is available, on request, with a 54 mm blade configuration.
Compact, robust and easy to operate, the VM 1200 delivers industrial-level performance in a versatile machine designed to optimise productivity and improve material handling in every cutting cycle.

VERTICAL CUTTING FOR BETTER HANDLING OF LARGE PLATES

The vertical configuration allows easier positioning and orientation of plates and blocks, ensuring smooth and controlled material handling.

ACCURATE TABLE MOVEMENT WITH SERVO AND LINEAR GUIDES

The table travels on linear guides driven by a servo motor, providing precise and repeatable movement for consistent cutting quality.

ADJUSTABLE CUTTING HEIGHT AND BLADE SIZE

The machine supports selectable cutting heights (500 mm or 800 mm) and optional blade widths, allowing users to adapt the setup to different material sizes and applications.

AUTOMATIC BLADE GUIDE AND BRUSH WEAR COMPENSATION

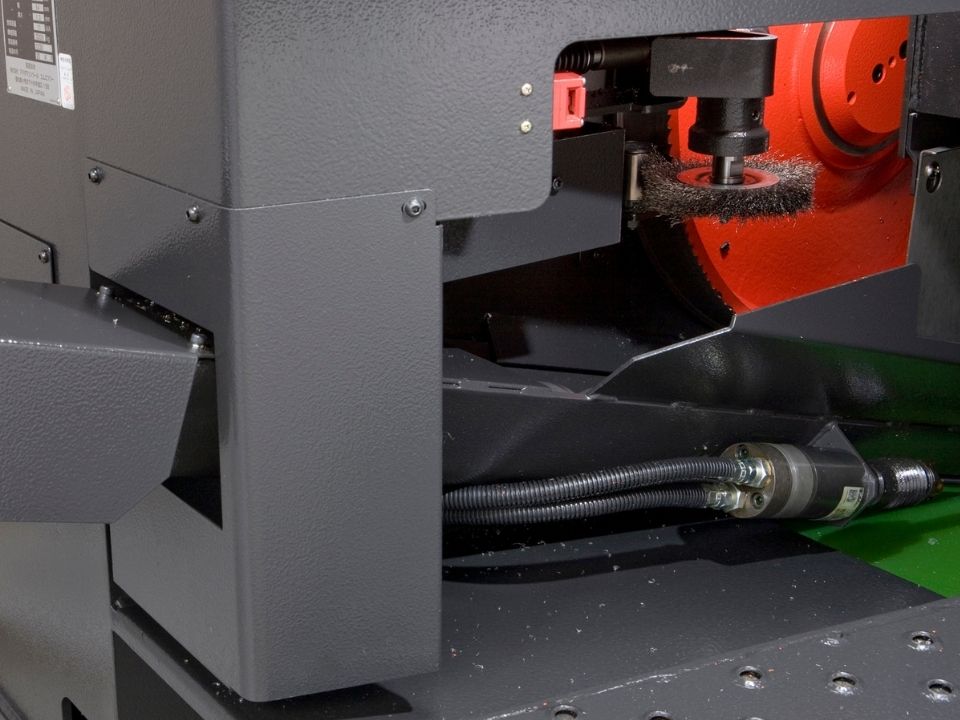

Automatic blade guide positioning and a self-adjusting cleaning brush maintain optimal cutting conditions and reduce manual intervention.

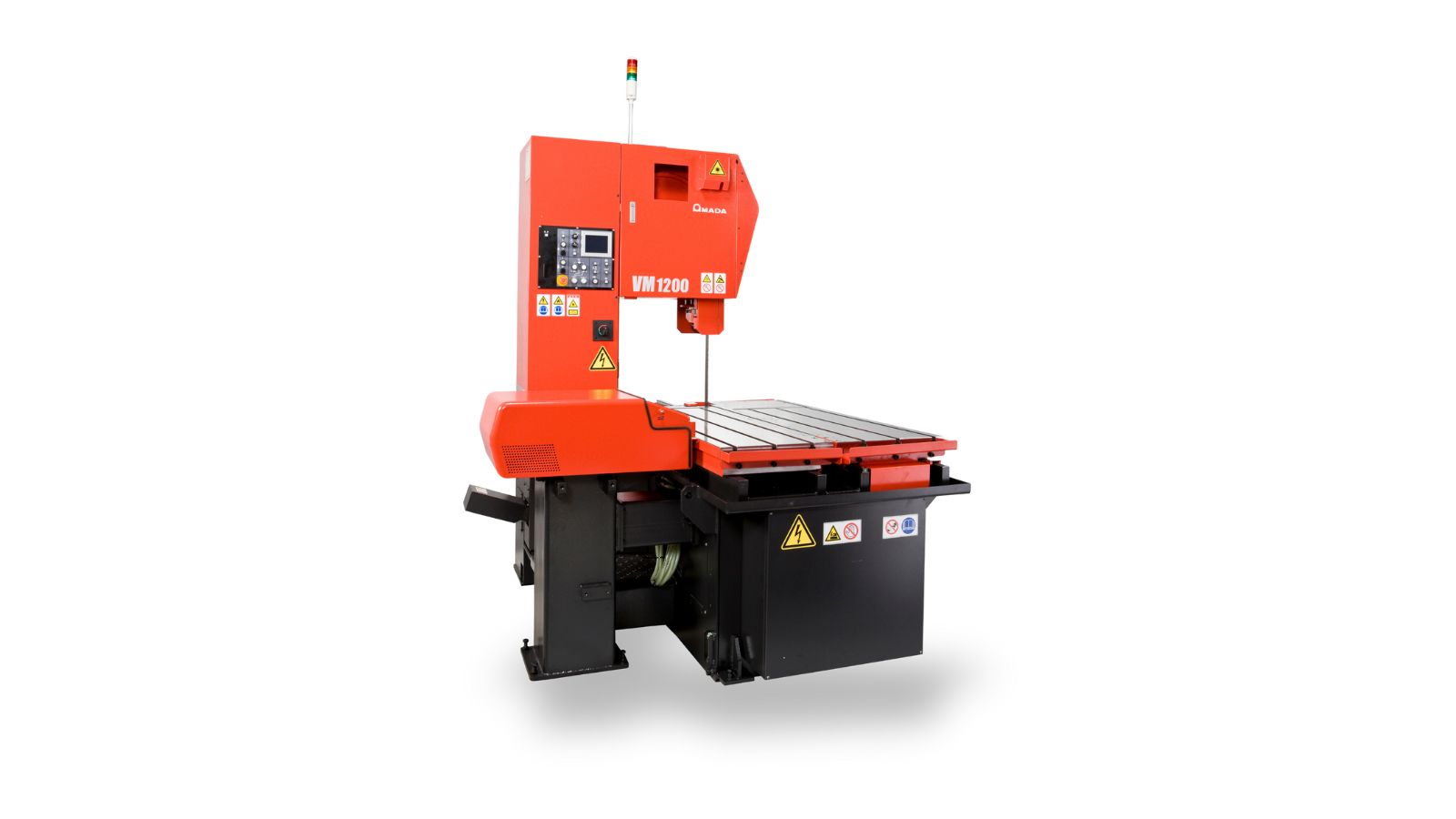

Hotspots

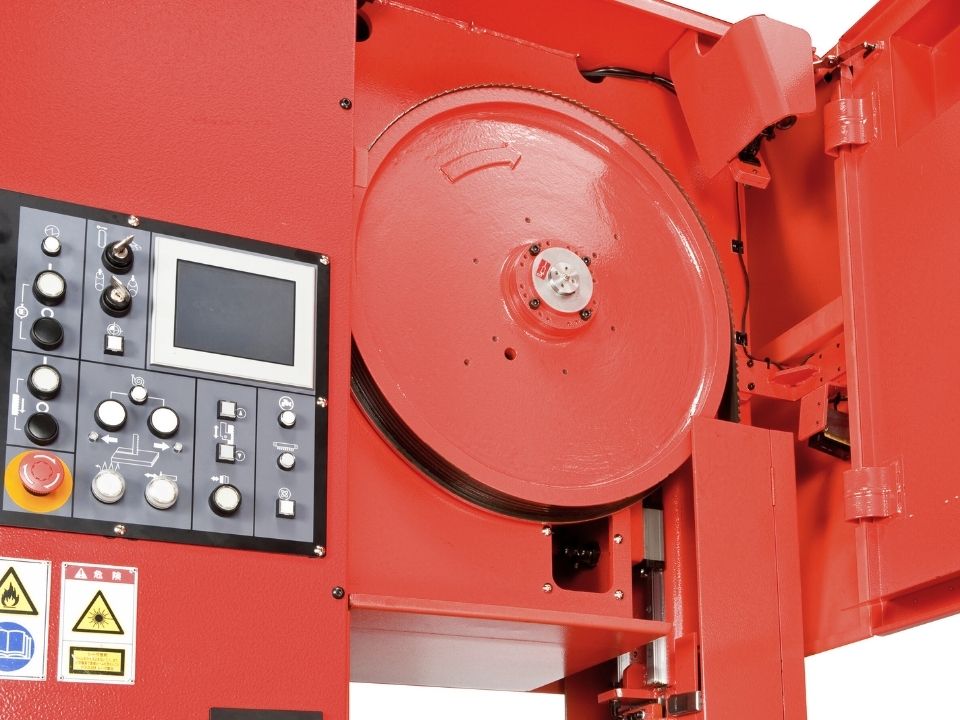

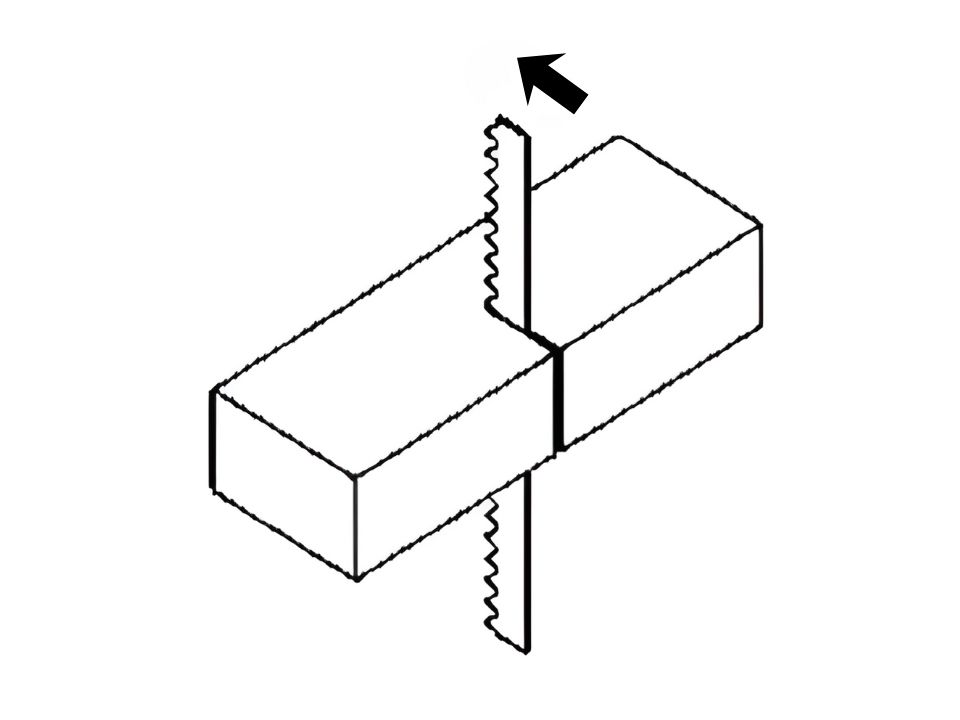

VERTICAL CUTTING HEAD The vertically oriented cutting head enables precise slicing of plates and blocks while maintaining excellent visibility and control.

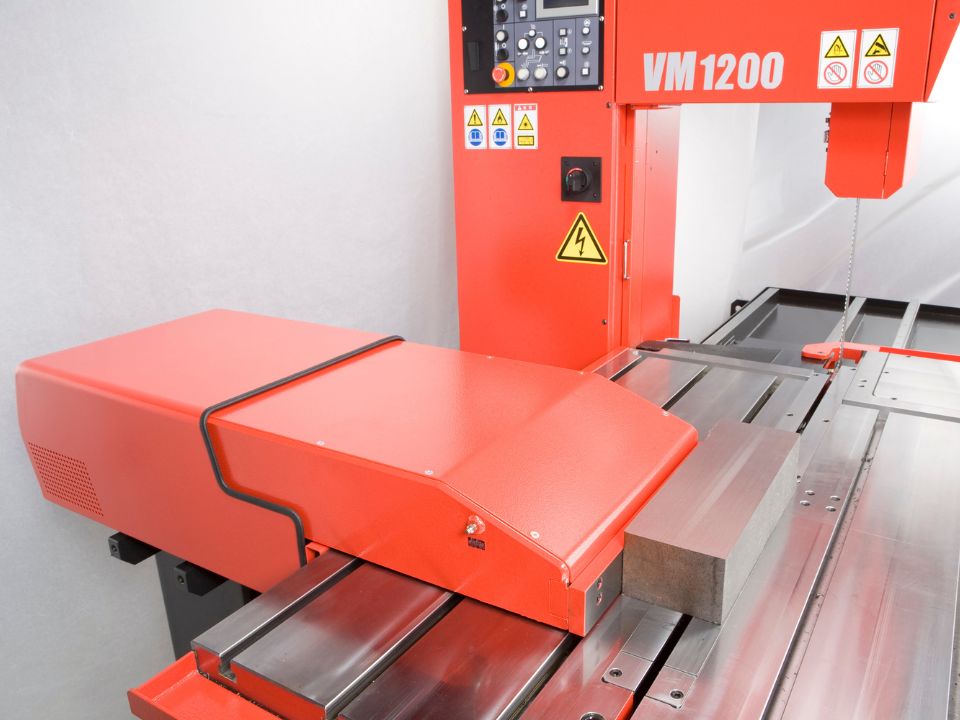

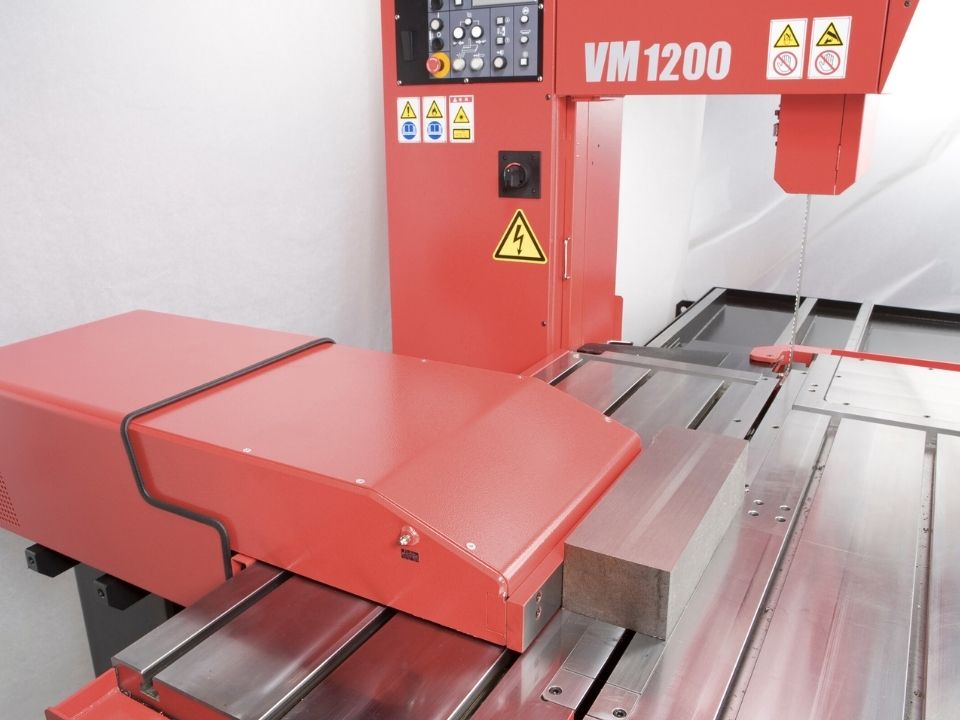

OPTIONAL SERVO-DRIVEN MOVING TABLE Available as an option, the large, stable table moves the workpiece during cutting, allowing accurate control of heavy materials.

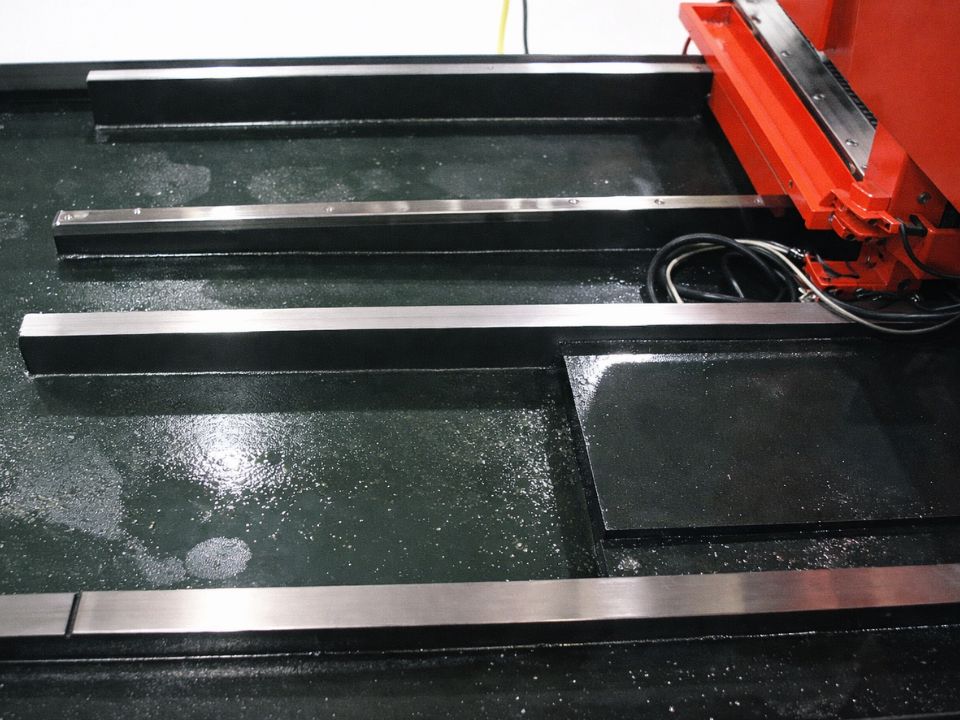

AUTOMATIC BLADE GUIDE SYSTEM The blade guide adjusts automatically according to the programmed material dimensions, improving accuracy and ensuring a stable and safe cutting process.
VERTICAL CUTTING HEAD The vertically oriented cutting head enables precise slicing of plates and blocks while maintaining excellent visibility and control.
OPTIONAL SERVO-DRIVEN MOVING TABLE Available as an option, the large, stable table moves the workpiece during cutting, allowing accurate control of heavy materials.
AUTOMATIC BLADE GUIDE SYSTEM The blade guide adjusts automatically according to the programmed material dimensions, improving accuracy and ensuring a stable and safe cutting process.

Technical Data

      VM 1200
      Standard [1] 54 mm blade [2] 800 mm cutting height [1] + [2]
Cutting capacity Cross cutting mm 508 508 508 508
  Height mm 508 508 800 800
  Longitudinal cutting mm 1219 1219 1219 1219
Blade drive motor   kW 5.5 5.5 5.5 5.5
Blade size (W x T x L) mm 41 x 1.3 x 4670 54 x 1.6 x 4670 41 x 1.3 x 5300 54 x 1.6 x 5300
Blade speed   m/min 10 ~ 90 10 ~ 90 10 ~ 90 10 ~ 90
Control unit     CNC CNC CNC CNC
Table height   mm 1005 1005 1005 1005
Worktable dimensions with T-slots   mm 547 x 1640 547 x 1640 547 x 3095 547 x 3095
Machine dimensions (W x L x H) mm 3263 x 1702 x 2450 3263 x 1702 x 2450 3263 x 1702 x 2765 3263 x 1702 x 2765
Machine weight   kg 3300 3300 3300 3300

Subject to technical modifications / Illustrations partially with special accessories
