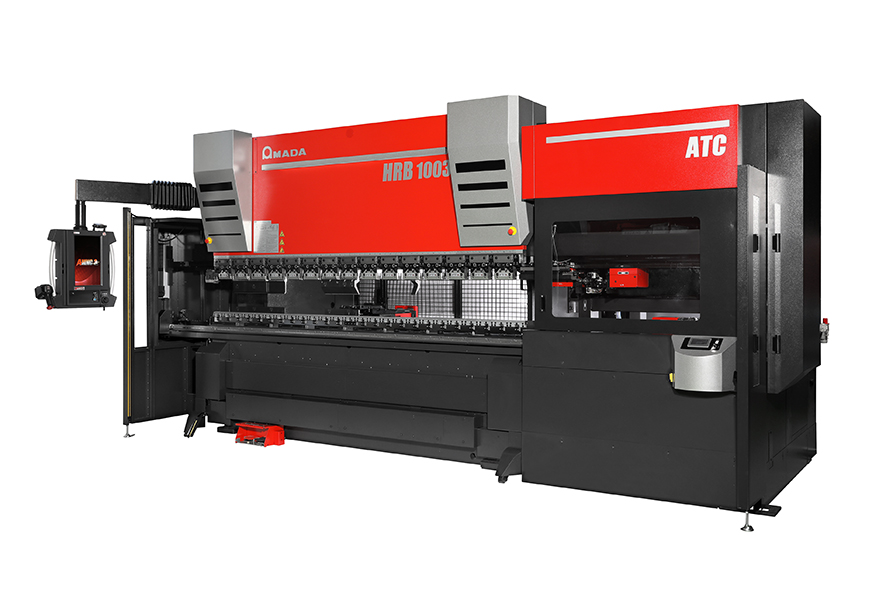

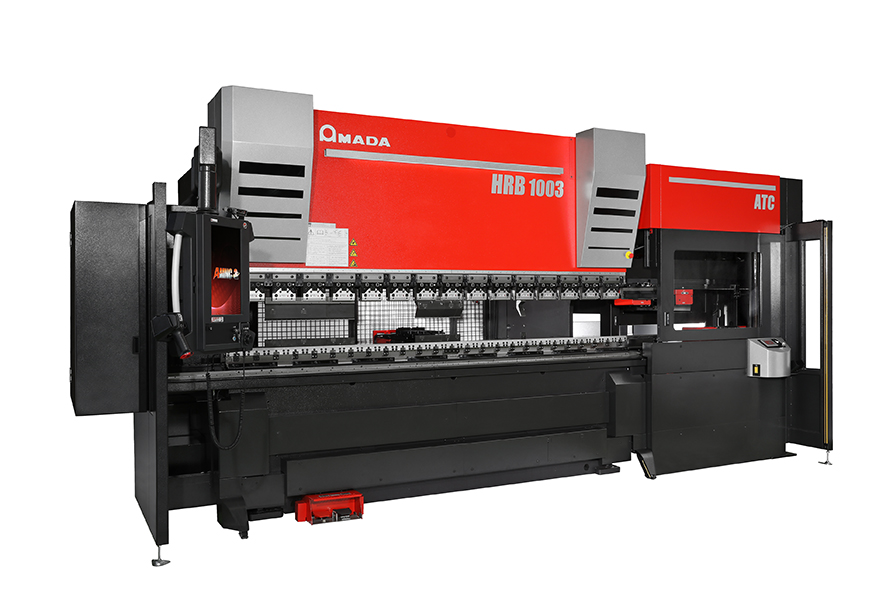

Press brake for variable lot sizes with afh-atc tools

Modern businesses need solutions that are increasingly geared towards reducing production lead times and making processes more efficient. In bending, the critical aspects affecting productivity are tool setup and programming times. AMADA has designed the HRB-ATC series available in the 1003 and 2204 versions, to provide the ideal solution for processing small sized batches with AFH-ATC tools. Thanks to the integrated ATC Automatic Tool Changer and powerful offline VPSS 3i Bend software, increasingly smaller lots and shorter lead times are no longer a problem. Set-up times are drastically reduced due to the Automatic Tool Changer providing high efficiency and precision setup and the possibility for operators, with varying experience, to use the machine effectively.

Download brochure

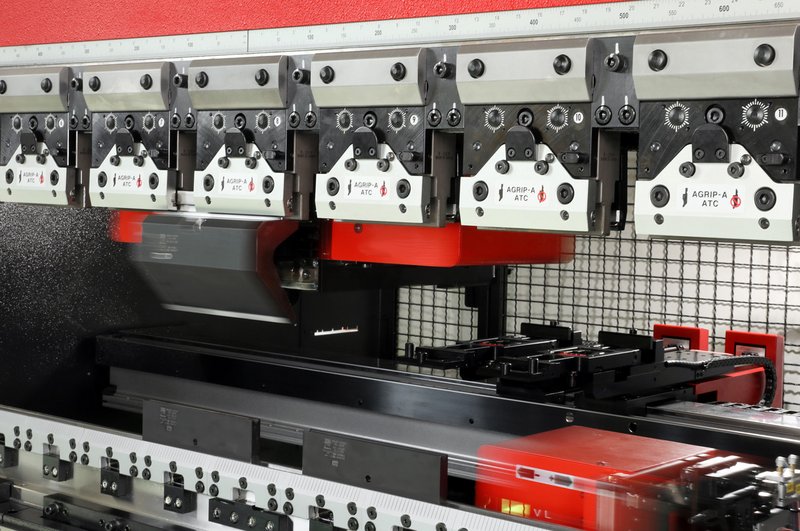

AUTOMATIC TOOL CHANGER

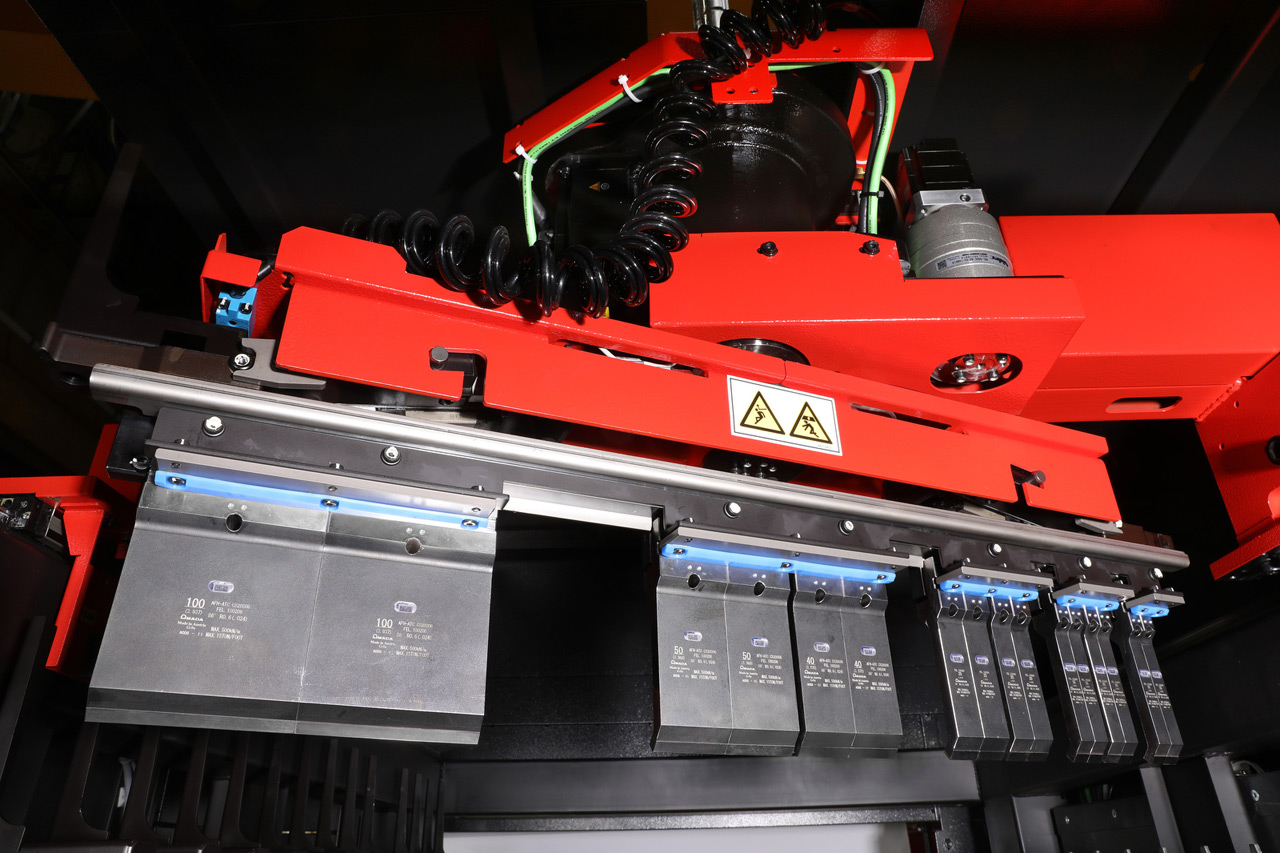

Set-up times are reduced thanks to the Automatic Tool Changer (ATC) for AFH-ATC, which can prepare tool layouts quickly and precisely. The ATC is equipped with a large tool storage, two pairs of tool robots and a unit for the automatic greasing tool clamping. The ATC offers smart management to optimise the set-up configuration, use tools already assembled and install punches, even when reversed.

HYDRAULIC TECHNOLOGY & AUTO-CROWNING

The machine is equipped with a hydraulic drive system with Inverter for effective energy savings; in fact, the hydraulic circuit is operated "on demand" by the bending cycle. The machine offers both high-speed and accurate positioning. The HRB-ATC also features the new auto-crowning system, to maximize the linearity, for constant results over the entire bend length.

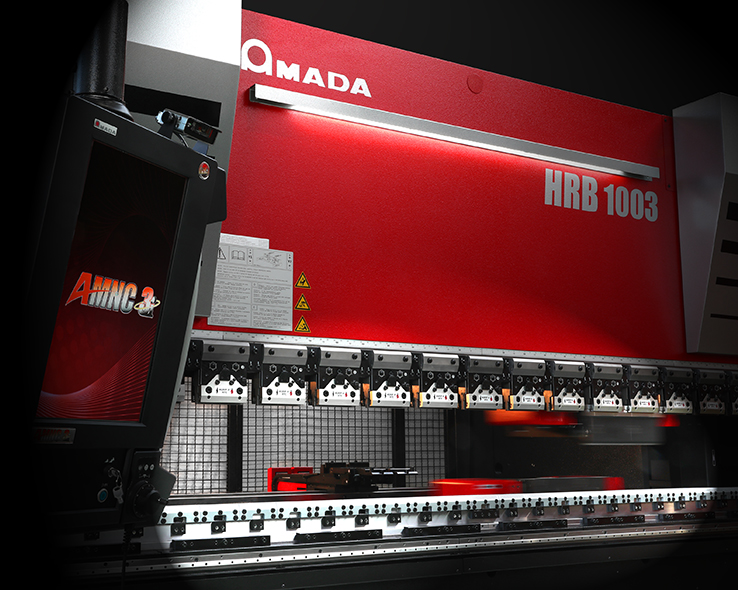

MULTI-TOUCH NUMERICAL CONTROL

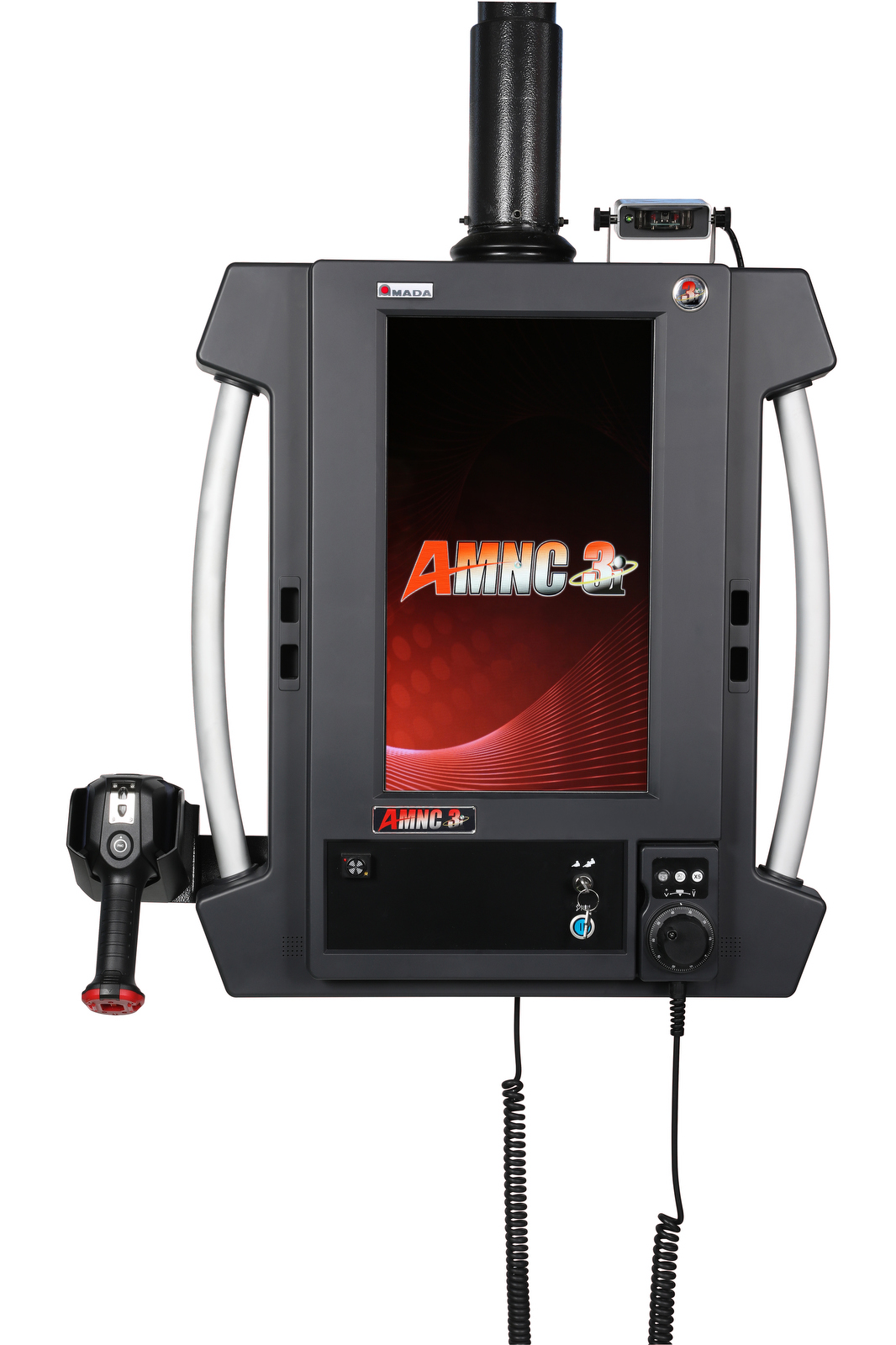

The HRB-ATC features latest-generation AMNC 3i numerical control, the digital heart of the solution. Its 18.5’ touchscreen, with its user-friendly interface and new LITE mode, enables complete management of the process, machine and all its functions, through a simple, intuitive approach.The AMNC 3i offers various types of programming (DIRECT, ANGLE, 2D and 3D), plus complete management of tool set-up, and enables easy, quick programming for even the most complex parts. The AMNC 3i is a powerful and innovative connected tool that makes the HRB-ATC "Industry 4.0” compatible.

BACK GAUGE

The back gauge of the HRB-ATC series has been designed and developed to meet criteria of precision, speed and reliability, offering an excellent performance and flexibility in gauging. The standard configuration has two traditional X axes, plus an additional Delta X function (two independent X axes), two independent Z axes and a R axis. The back gauge of HRB-ATC are also equipped with the Amada patented solution FAST (Finger with Active Safety Technology) to guarantee the best perfomances in every condition.

ANGLE DETECTION

The HRB-ATC can process numerous parts, materials and thicknesses with high precision. Thanks to the option mechanical bending indicator (Bi-S) in fully automatic mode. The angle is measured reading the spring back, to correct the downwards movement of the beam in real time.

ERGONOMIC FEATURES

Bending process productivity is related to machine performance and also to ergonomic features that help the operator carry out work quickly and simply. The HRB-ATC features the option of “Auto Foot Pedal”, the smart sliding pedal that can automatically move opposite the bending station, saving considerable operator time and effort.

Hotspots

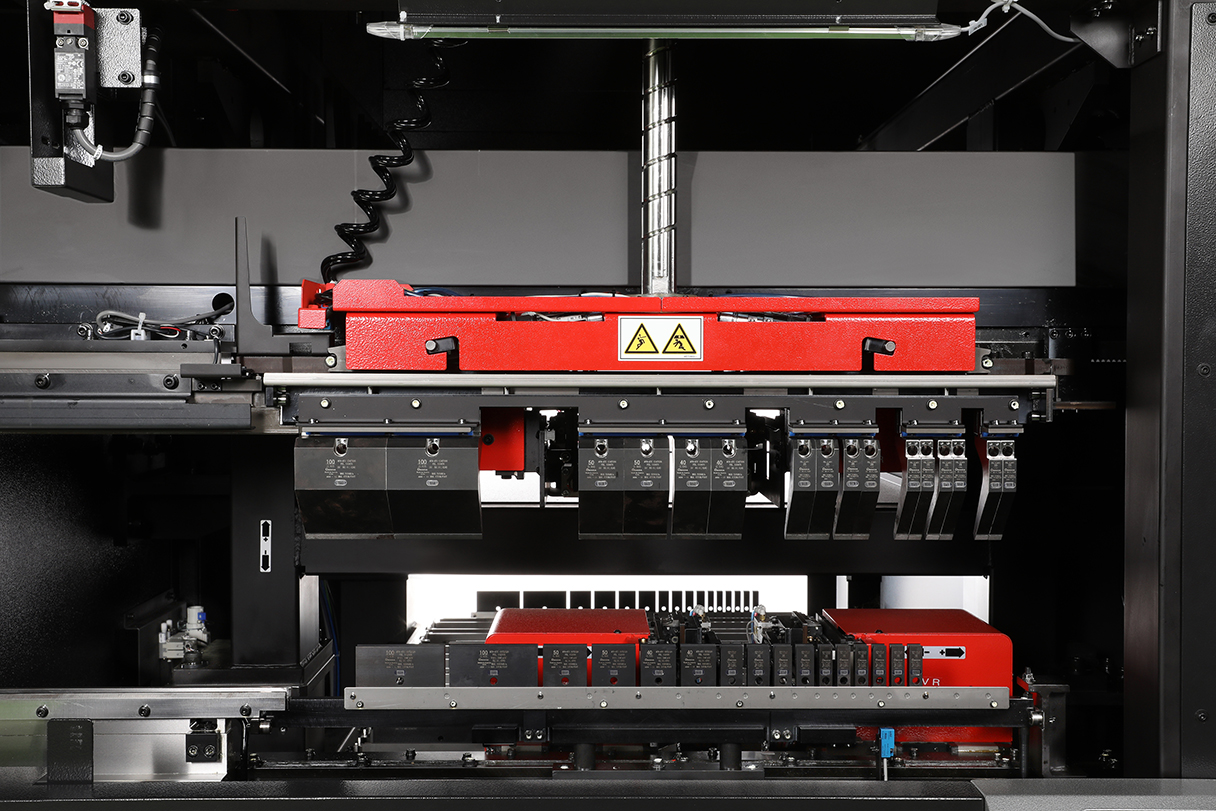

AUTOMATIC SETUP: The automatic system for changing tools (ATC), the only one of its kind on the market for technology and performance, considerably reduces set-up times of AFH tools. So urgent, rush jobs can also be efficiently managed.

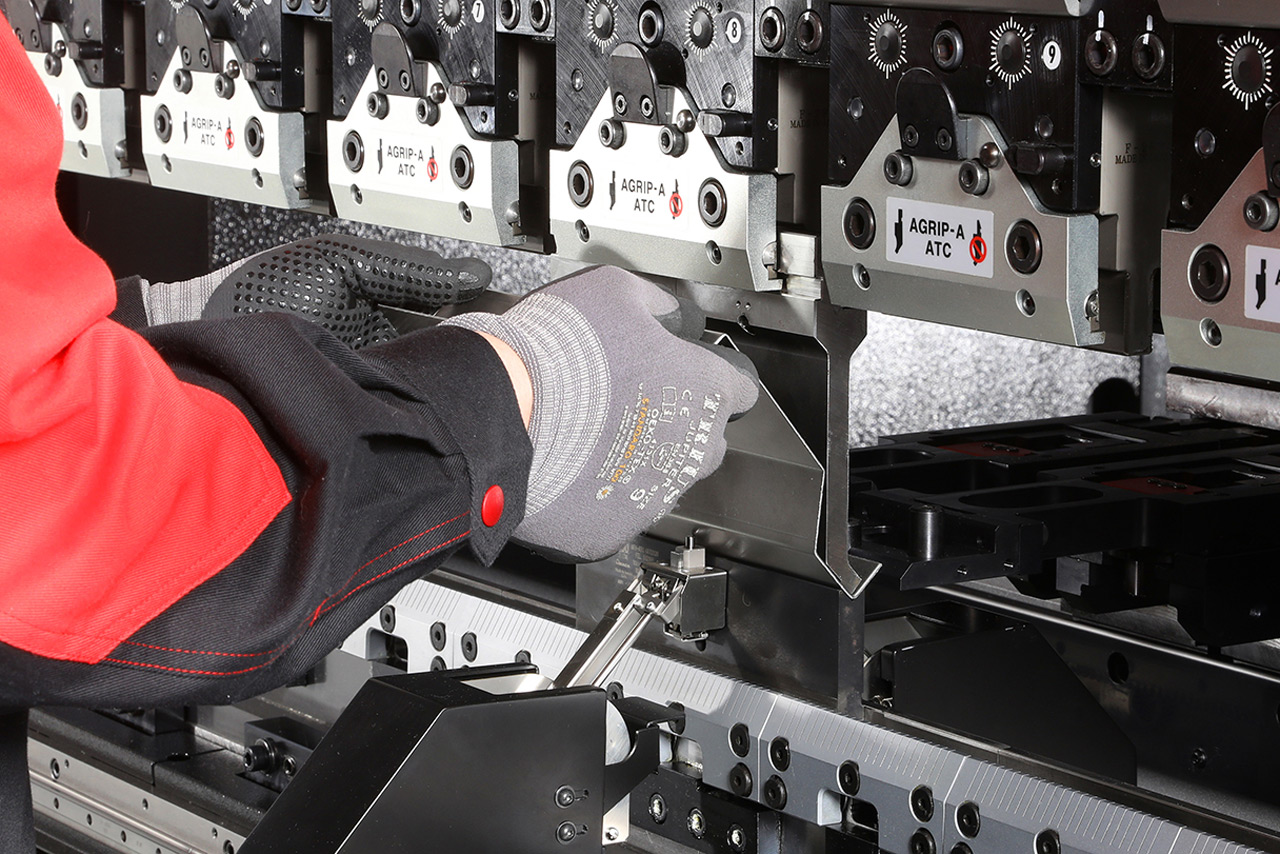

ACCURATE: The HRB-ATC is equipped with a number of functions for precision bending, unrivalled on the market. The combination of auto-crowning and the optional Bi-S device to measure the angle provides maximum angle precision and linearity, without rejected parts.

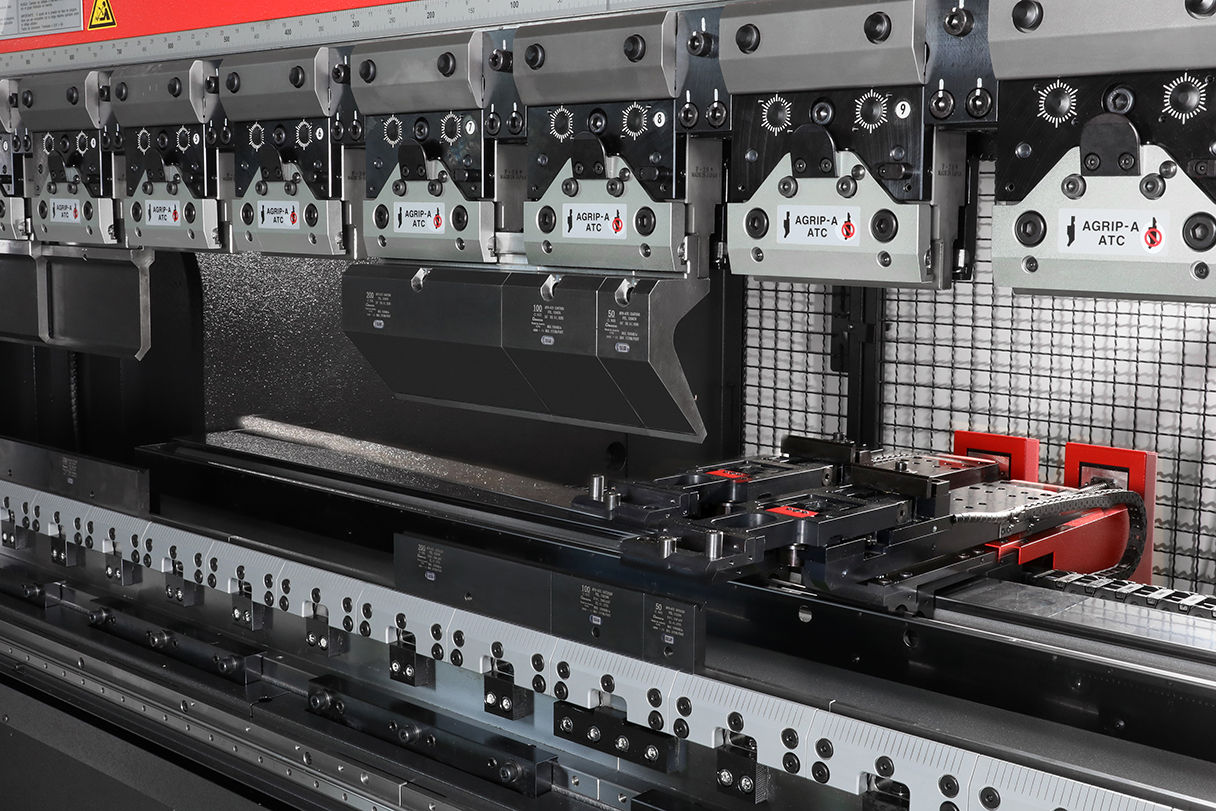

PRODUCTIVE: Designed for the best productivity, the upper beam and back gauge deliver the best balance of performance in terms of speed, dynamics and reactivity.

PRODUCTIVE: Designed for the best productivity, the upper beam and back gauge deliver the best balance of performance in terms of speed, dynamics and reactivity.

	HRB-1003ATC	HRB-2204ATC
Press capacity (kN)	1000	2200
Stroke (mm)	250	250
Open height (mm)	520	520
Bending speed (mm/sec)	15	10
Approach speed (mm/sec)	200	100
Return speed (mm/sec)	150	100
ATC tool changer:
Number of die stockers	18	25
Number of punch stockers	15	18
Tool layout length	15 - 3000	15 - 4000
Tool length increments	5	5
Dimensions:
Length (mm)	5855	7050
Width (mm)	3220	3560
Height (mm)	2950	3090
