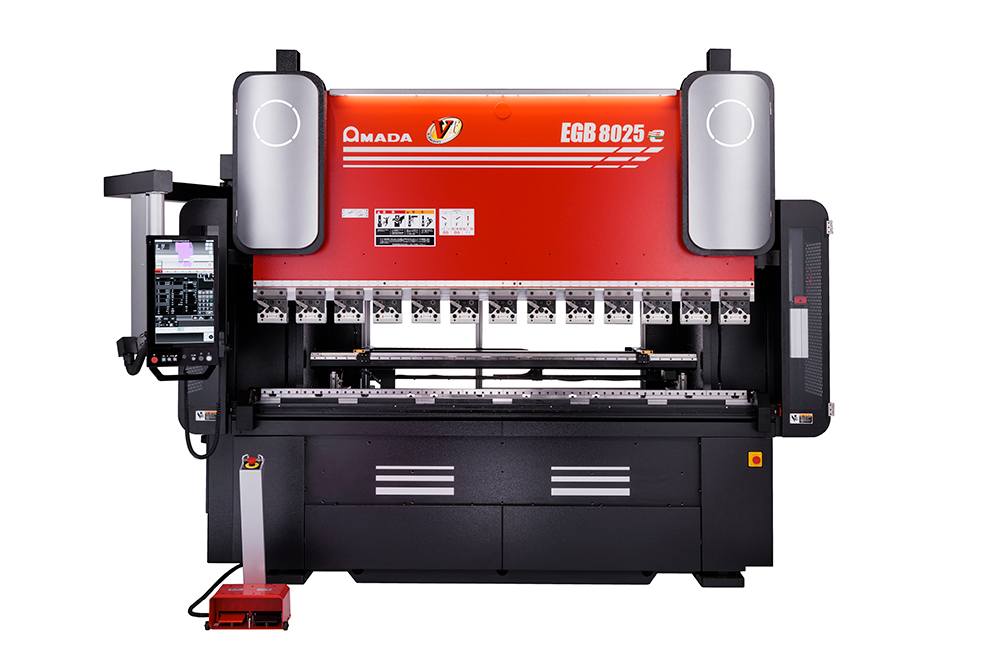

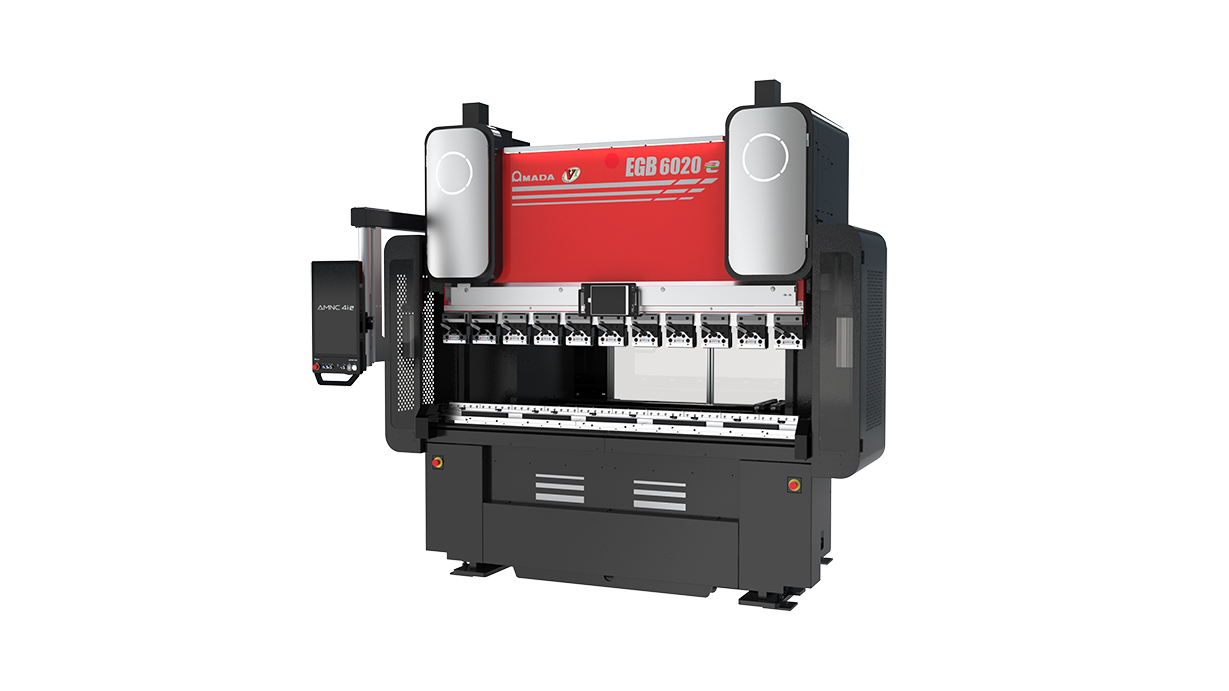

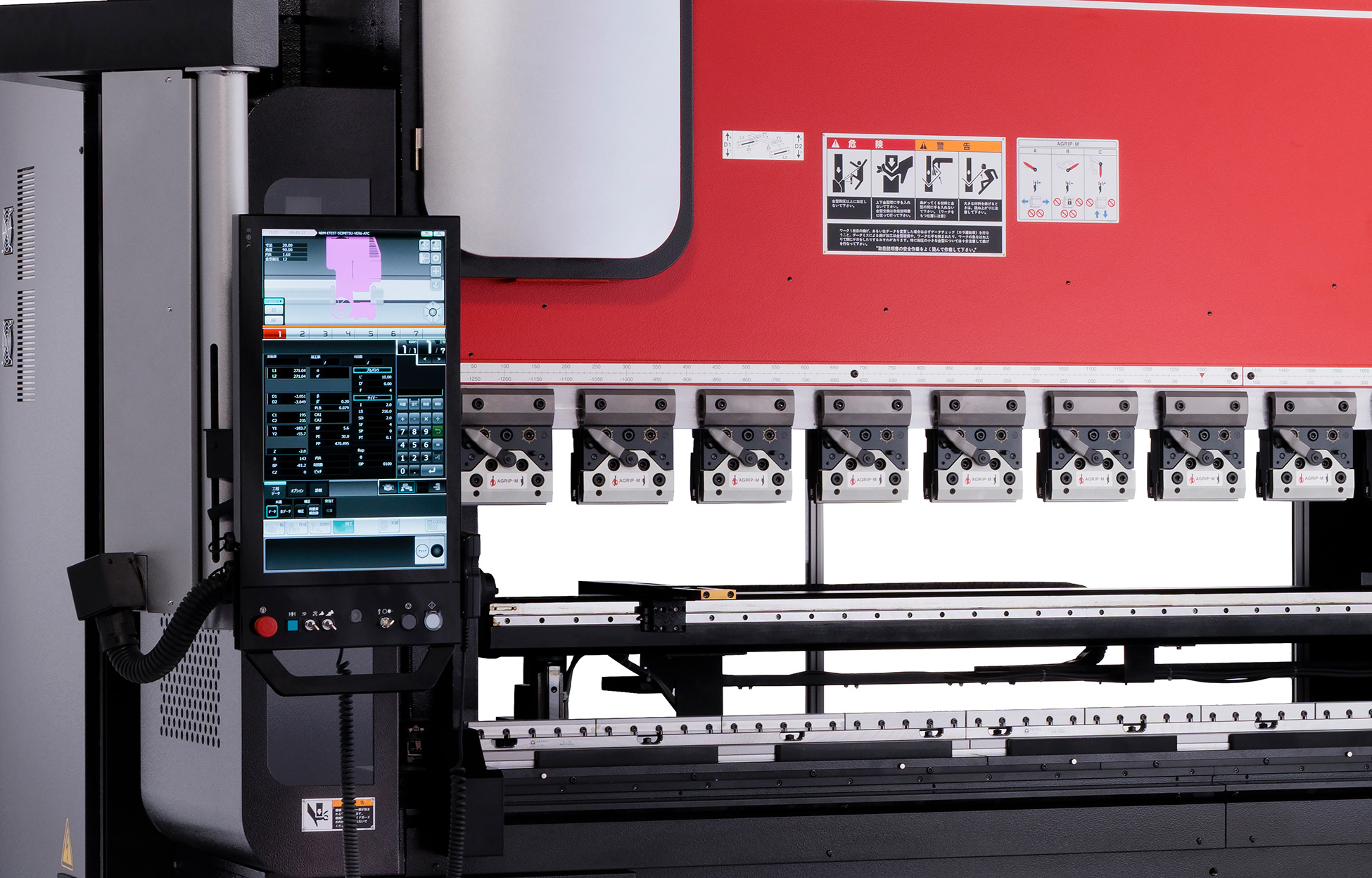

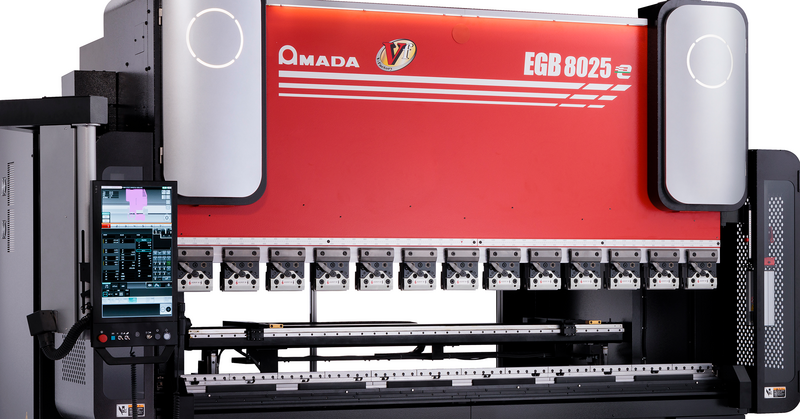

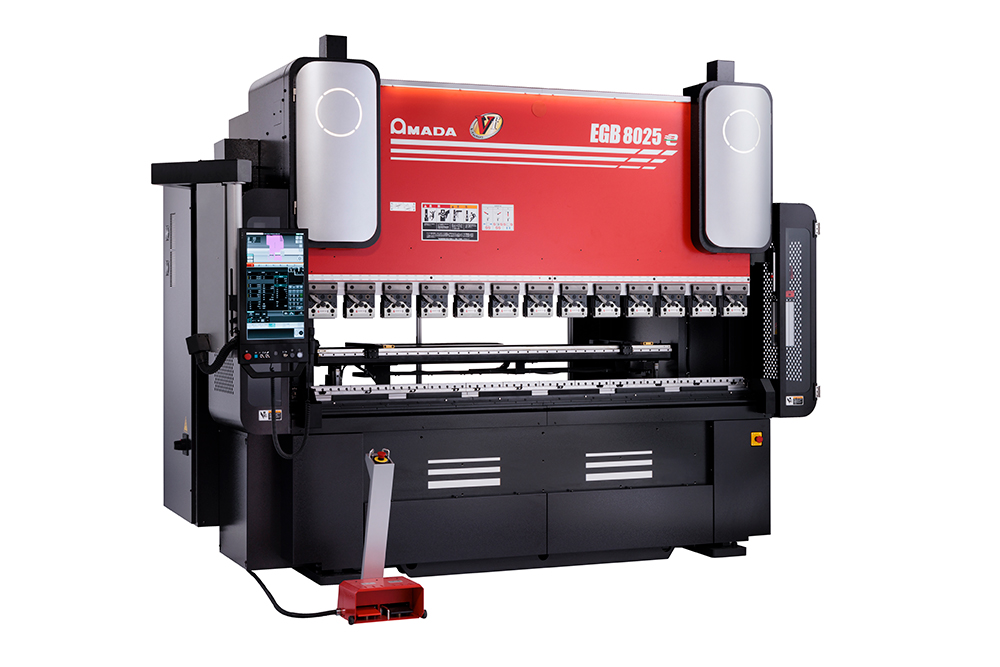

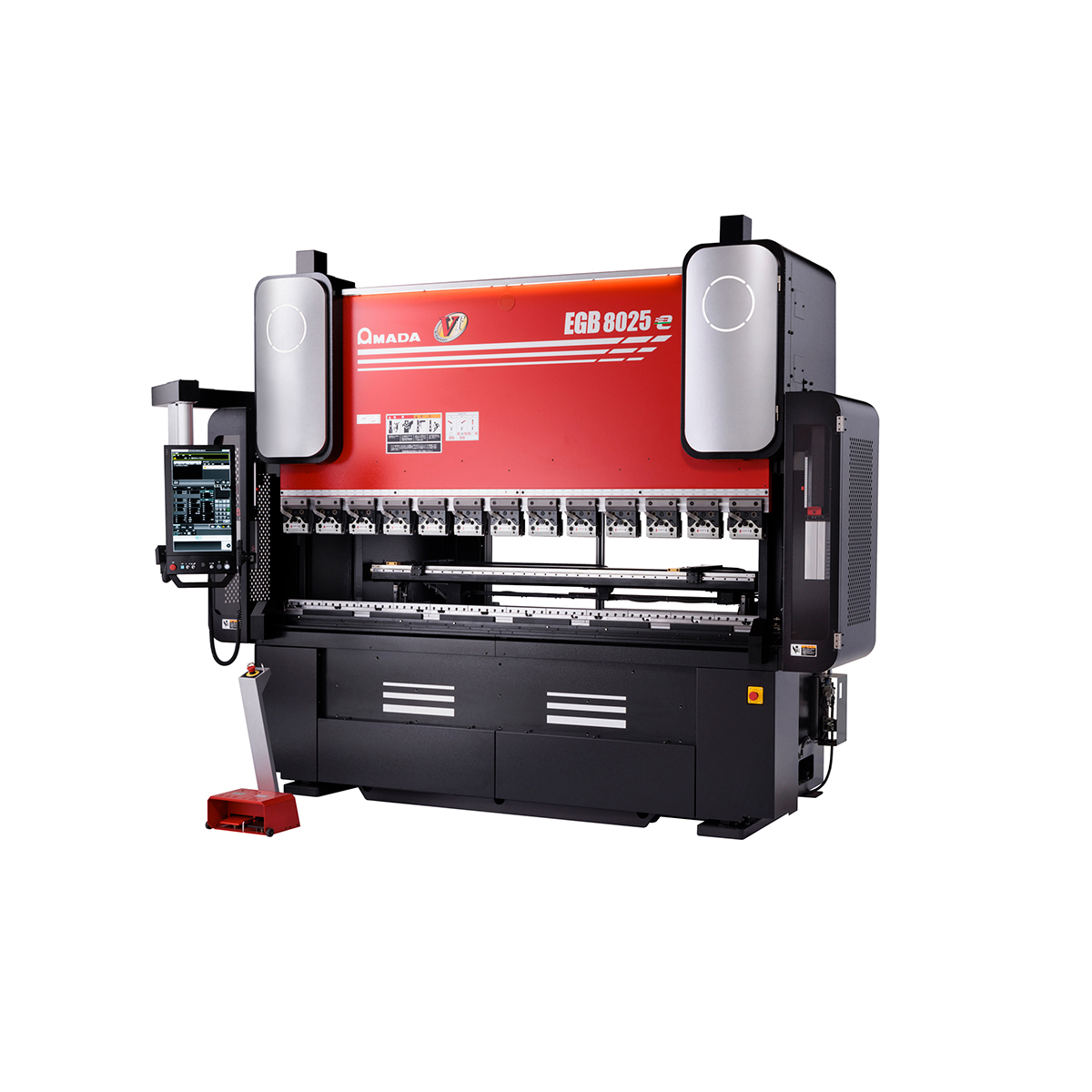

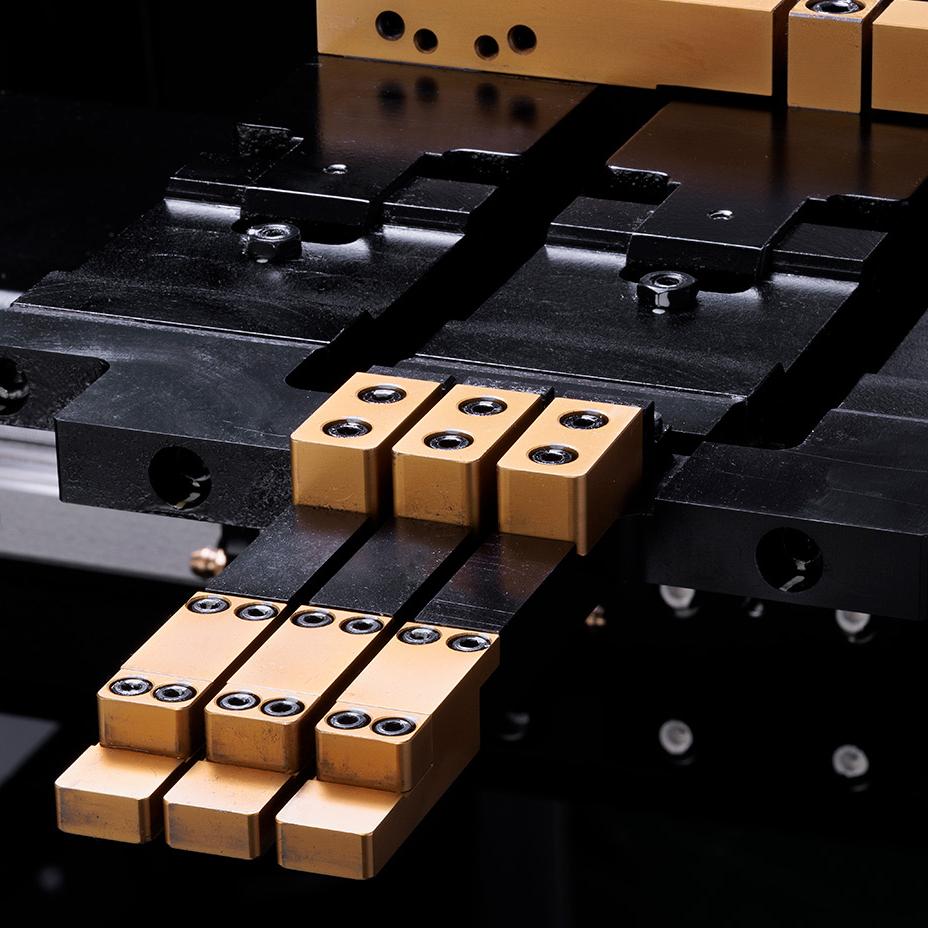

Experience the future of bending technology with the servo-electronic EGB-e series, designed for maximum productivity and precision even for non-skilled operators. AMADA’s innovative solutions support operators at every stage, from automatic offline programming to tool setup guidance with a green laser, gauging position by a 360° AR camera and three fingers for an easy and accurate process. The EGB-e series includes the new AMNC 4ie numerical control, offering faster performance and a larger display than the previous model, along with features like automatic operator recognition, voice command capabilities, and an idle stop function to reduce power consumption.
Solutions such as the automatic asymmetrical crowning device and the new bending indicator Bi-S II, faster and optimised for shorter flanges, allow for achieving extremely accurate and linear bends.
FAST AND PRECISE
A brand-new servo-electric technology to provide our customers with an outstanding product, with top performance and accuracy on the market.
EASE OF USE:
Productivity and ease of use are the key factors of the EGB-e series; the Smart Operation Pack makes the machine easy to use and productive even with non-skilled operators.
PRODUCTIVE:

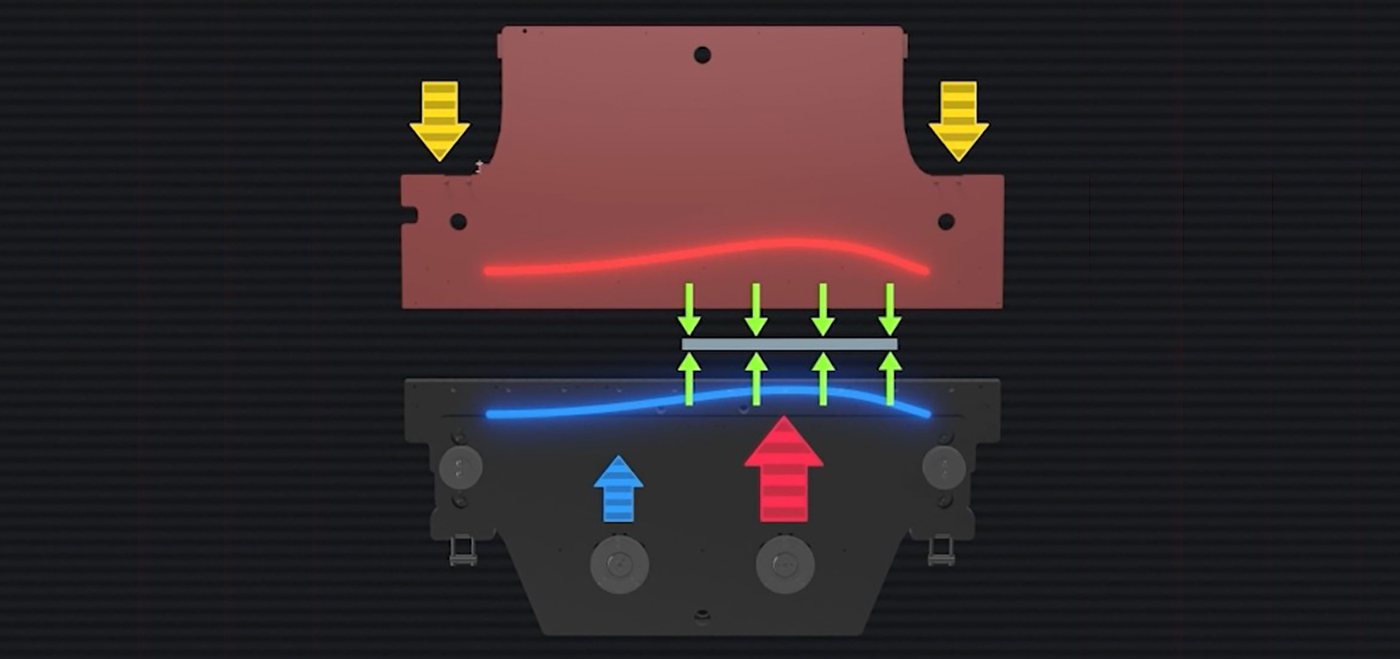

The asymmetrical dynamic servo crowning easily allow to bend in offset position quickly producing accurate parts.
FAST AND PRECISE
A brand-new servo-electric technology to provide our customers with an outstanding product, with top performance and accuracy on the market.
EASE OF USE:
Productivity and ease of use are the key factors of the EGB-e series; the Smart Operation Pack makes the machine easy to use and productive even with non-skilled operators.
PRODUCTIVE:
The asymmetrical dynamic servo crowning easily allow to bend in offset position quickly producing accurate parts.
| EGB-6020e | EGB-8025e | EGB-1303e | |
|---|---|---|---|
| Numerical Control | AMNC 4ie | ||
| Press capacity (kN) | 600 | 800 | 1300 |
| Max bending length (mm) | 2150 | 2600 | 3110 |
| Distance between frames (mm) | 1700 | 2220 | 2700 |
| Open height (mm) High body (mm) | 520 620 | ||
| Stroke (mm) | 250 | ||
| C-throat (mm) | 450 | ||
| Oil capacity (l) | 0 | ||
| Approach speed (mm/s) | 250 | ||
| Bending speed (mm/s) | 25 | ||
| Return speed (mm/s) | 250 | ||
| Num. of Axis | 10 | ||
Dimensions: | |||
| Length (mm) | 2940 | 3443 | 3980 |
| Width (mm) | 2112 | 2144 | 2120 |
| Height (mm) | 2762 | 2799 | 3120 |
| Weight (kg) * Approximate weight | 5500* | 7200* | 11400 |
Some devices of functions could be available as option or separately from the machine.
