Software for AMADA Punching Machines
VPSS 4ie Blank

header picture

/
  1. Products
  2. Software

Cost-efficient and time-saving, even for large nesting jobs

Automatically assigns the most efficient tool for the job


Benefit from fully automatic optimal tool assignment. Input the part data and the software automatically assigns the most efficient tool based on the latest AMADA tooling technologies. It also considers the available automation solutions, so that the nesting job can be planned quickly and easily then programmed across multiple machines in the most cost-efficient, time-saving way, even for large nesting jobs.

Take full advantage of AMADA punching machines' capabilities. Fully automated can be used even by less experienced operators.

PRODUCT FILE IMPORT

Import, optimise and design your parts are key factors in maximising your machines’ efficiency. Importing 2D/3D drawings is quick and easy, including PDF files from all the main CAD providers. Before starting a job, you can easily preview the imported files.



EFFICIENT USE OF TOOLS

Make the most of the latest tool technologies with AMADA VPSS 4ie software and achieve the best programming results. With our software, you will be able to use last-generation tools, such as the ARFT or TK Assist Tool, designed not only to provide high speed, flexibility and high-quality processing but also to allow easy and safe automated part removal, saving you time and money.



SMART UNFOLDING

As the sheet metal model unfolds, the form and fastener details can be mapped three-dimensionally which is stored as tool information. This allows for easy reference and reuse in a variety of projects, reducing errors, time and cost of production.



RECURRING TOOL ASSIGNMENTS

Depending on the part, manual tooling adjustments are sometimes required. Templates and macros containing tooling information can be saved and retrieved manually or automatically, to avoid having to make these adjustments every time for similar shapes.

COMBINED PROCESS

Punching first, then laser? Not a problem. VPSS 4ie Blank transfers programmes from one technology to another, ensuring that production orders are reliably processed across technologies.

CREATE PROGRAMS ACROSS MULTIPLE MACHINES

It is critical to save time whilst programming. All your production orders can be automatically and simultaneously programmed across several machines. The VPSS 4ie Blank software can generate programs for all the machines that have been selected. All you need to do is to specify the relevant part parameters such as the number of pieces and rotation angle.
If you wish to automate even further, save your production plans and the "Full Auto Blank" application will handle the programming, saving the data automatically. Production may now begin!

TAKE ADVANTAGE OF AMADA AUTOMATION SOLUTIONS

Automation is key for businesses looking to meet the demands of a fast-growing market, particularly when qualified operators are in limited supply.  All AMADA automation models are supported by VPSS 4ie Blank, which virtually maps both part removal and part stacking, taking into consideration upstream and downstream operations.

MATERIAL MANAGEMENT

In terms of production and usage, sheet metal materials must be cost-effective and efficient. It is possible to minimise waste and maximise productivity by managing materials efficiently. VPSS 4ie manages remnants and skeleton sheets as well as standard formats. Priority automated assignment ensures optimal reuse of each material throughout the program.

COMMON DATABASE

A server or local central production management ensures consistent material and parameter data set across several workstations. With the ability to schedule production plans in advance and transfer them straight to the machine via the database, there is no need to set the program on the machine.


DOWNLOAD OUR BROCHURE

CONTACT US FOR MORE INFORMATION

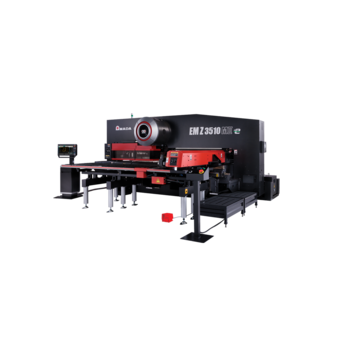

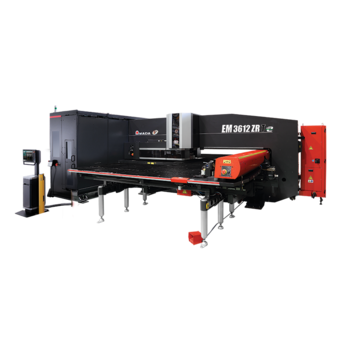

Our software is designed to be compatible with Amada range of punching machines. Find out more about each machine …
