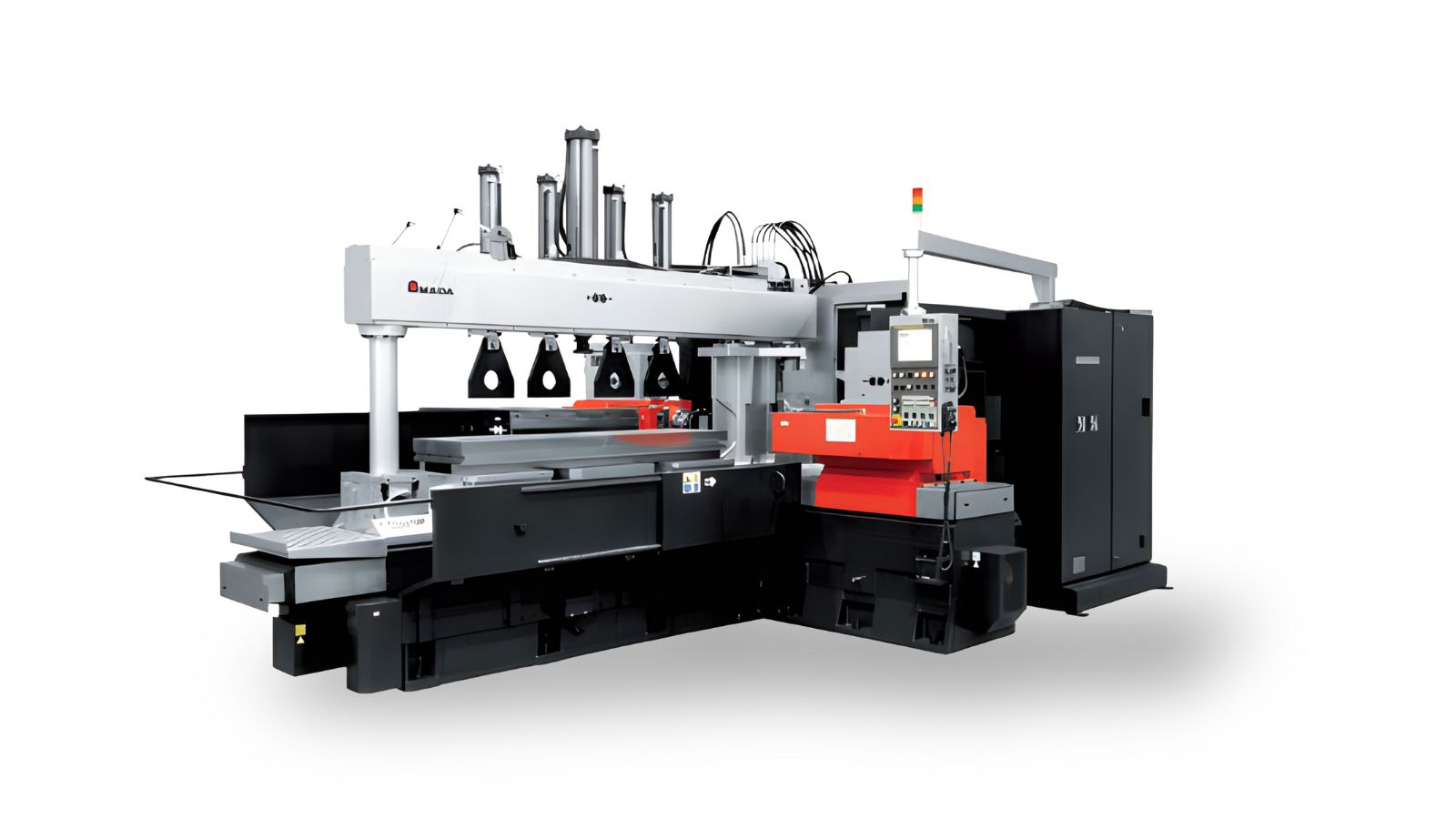

AMADA EU: THV 800 L Long Plate Duplex Milling Machine for Extended Workpieces

Designed to handle complete four-side machining and finishing on extra-long components

THV 800 L extends the milling capabilities of the standard model, offering the flexibility to process both plates and long workpieces up to 2,000 mm. Its structure is engineered to support extended formats while maintaining precision and consistent performance.
The automatic stop system simplifies positioning and speeds up setup, reducing manual intervention. The wide and stable working area ensures reliability even during edge-chamfering operations.
All the key advantages of the series, ease of use, controlled handling and steady quality, are fully preserved, making THV 800 L ideal for applications requiring repeatable processes and optimized cycle times.

MILLING VERSATILITY

Handles plates and long workpieces, with either four-side or two-side machining depending on requirements.

AUTOMATIC WORKPIECE POSITIONING

Automatic stops simplify setup: the operator only needs to insert and clamp the workpiece, reducing preparation time and minimizing errors.

AUTOMATIC WORKPIECE MEASUREMENT

The system automatically checks the dimensions of the raw part and calculates the workpiece center, ensuring precision and repeatability from the very first operation.

AUTOMATIC CENTERING SYSTEM

Both milling heads always operate at the same distance from the workpiece, ensuring symmetrical machining and a consistent cutting depth on both sides.

Hotspots

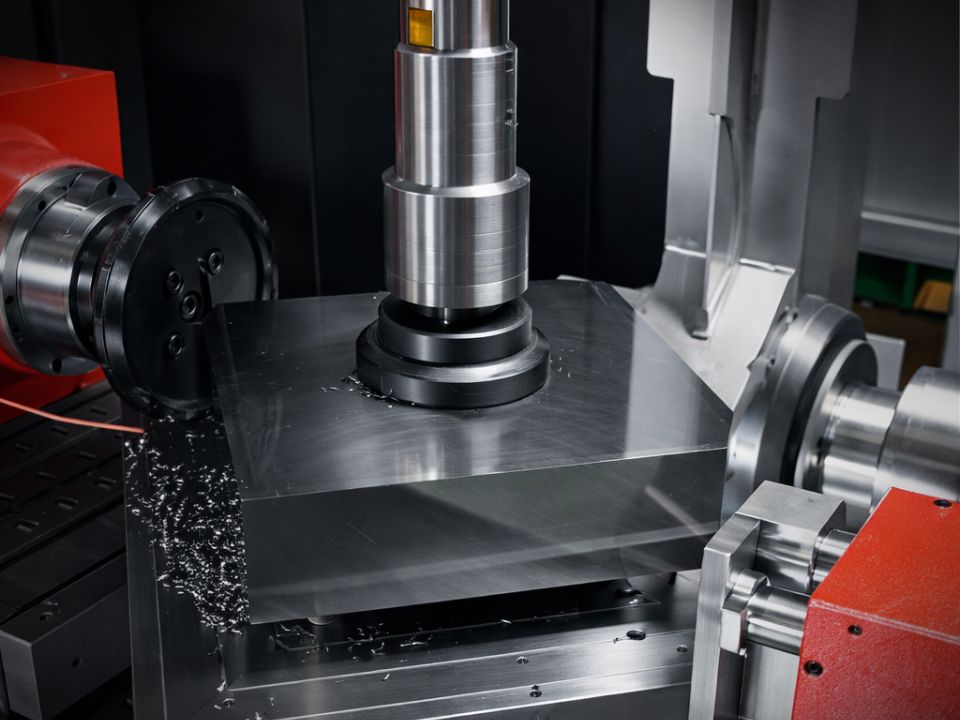

WORKPIECE CLAMPING SYSTEM Hydraulic clamping that ensures precision during milling passes and edge-chamfering.

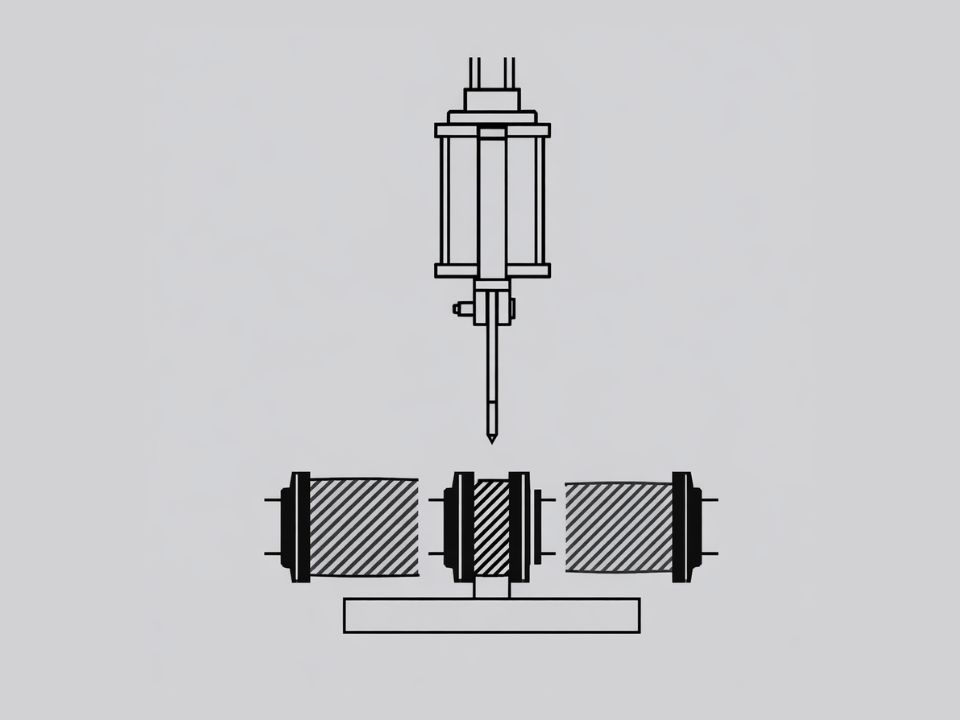

WORKPIECE SUPPORT FOR LONG PARTS Dedicated support that stabilizes long workpieces throughout the operation.

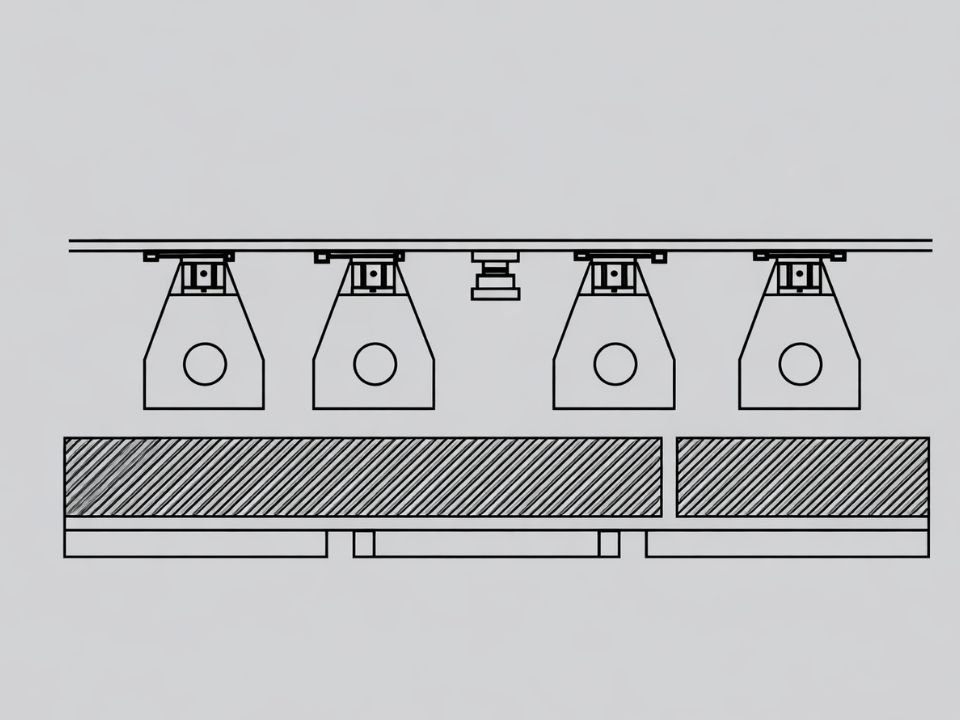

SIDE VIEW Full visual reference of alignment and support across the entire length of the workpiece.

WORKPIECE CLAMPING SYSTEM Hydraulic clamping that ensures precision during milling passes and edge-chamfering.

WORKPIECE SUPPORT FOR LONG PARTS Dedicated support that stabilizes long workpieces throughout the operation.

SIDE VIEW Full visual reference of alignment and support across the entire length of the workpiece.

			THV 800 L (four-side machining)	THV 800 L (two-side machining)
Maximum workpiece dimensions	(W x L x H)	mm	800 × 800 × 230	2,000 × 800 × 230
Minimum workpiece dimensions	(W x L x H)	mm	40 x 40 x 10	40 x 600 x 10
Cutter diameter		mm	250	250
Maximum power per spindle		kW	11	11
Maximum torque per spindle		Nm	495	495
Maximum workpiece weight		kg	1200	3000
Machine weight		kg	8500	13000
