AMADA EU: MAGNUM HLG

Designed to deliver stable, smooth and reliable cutting even on the most demanding materials

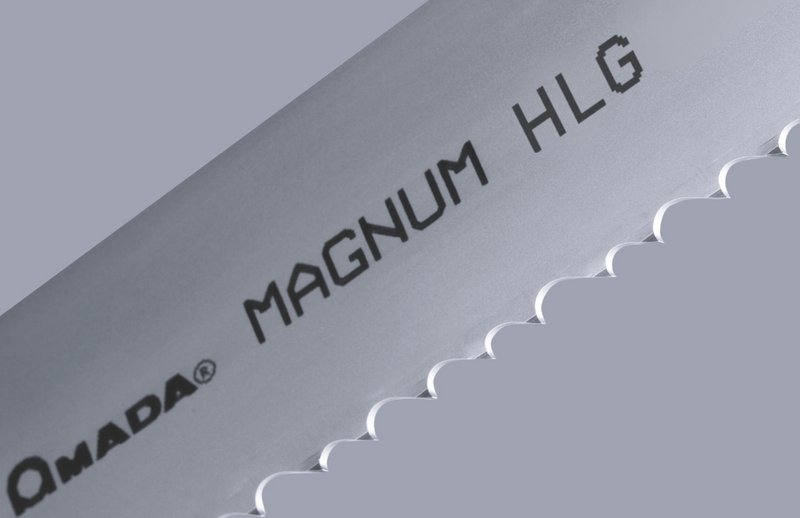

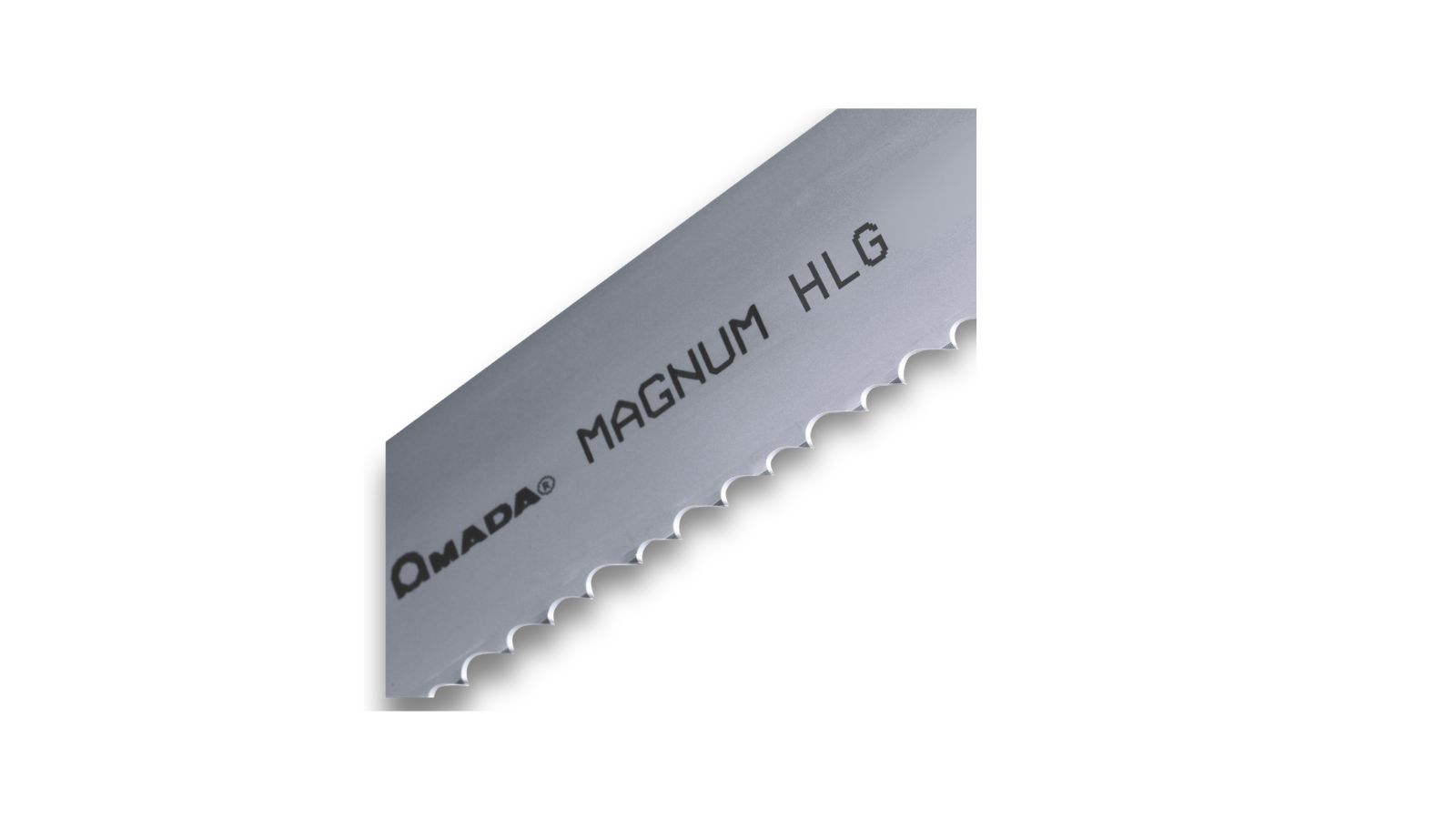

MAGNUM HLG is a next-generation bimetal bandsaw blade developed to handle difficult and abrasive materials. Thanks to the patented AMADA M71 tooth material, with higher hardness compared to conventional M42, the blade provides exceptional wear resistance even on high-carbon steels alloyed with Cr or Ti.
The HI-LO tooth geometry alternates high and low teeth to reduce stress on each tooth and lower friction during cutting. The variable set improves chip evacuation and cutting fluidity, maintaining stability and consistency even in the toughest applications.
MAGNUM HLG is ideal for versatile use, from standard steels to tool steels, cold-work materials and abrasive applications.

CUTTING CAPABILITY

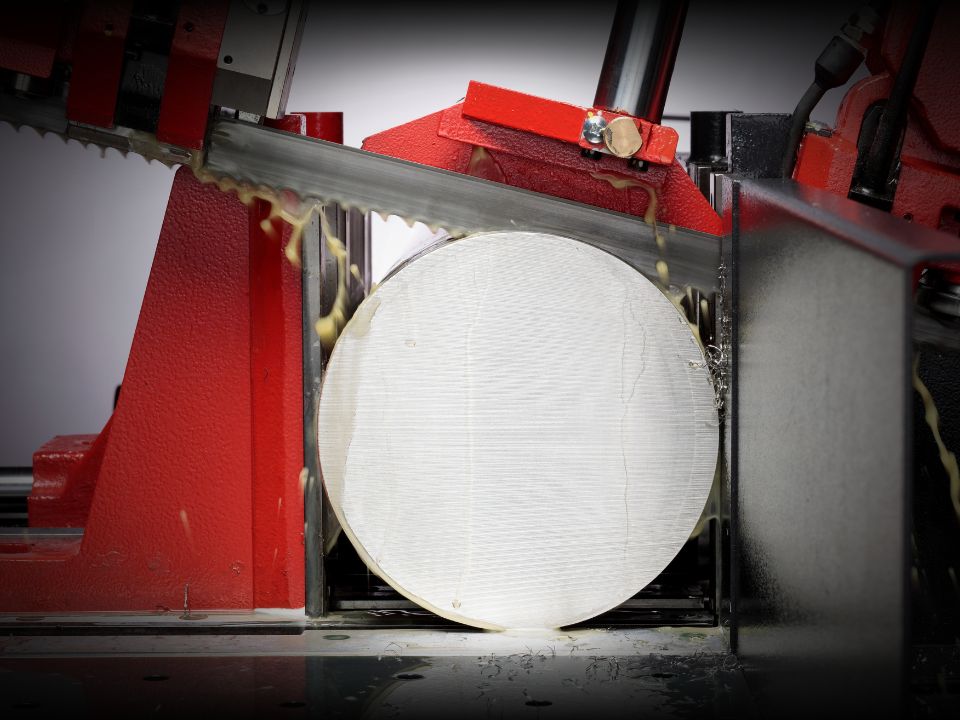

Blade developed for difficult-to-cut materials, suitable for both single-piece and bundle cutting.

CUTTING CHANNEL

Cutting channel with differential load distribution, enabled by patented tooth geometry.

SMARTCUT VERSION AVAILABLE

The special 41 x 0.9 mm blade, developed specifically for the PCSAW 330 bandsaw, reduces kerf loss by up to 25%, offering significant economic benefits, especially when cutting high-value materials. Its dedicated geometry and robust structure optimize cutting performance, making the SMARTCUT version an ideal solution for high-volume production.

Hotspots

M71 BIMETAL BLADE Characterized by the highest hardness ever recorded among cast high-speed steels, ideal for cutting particularly hard materials.

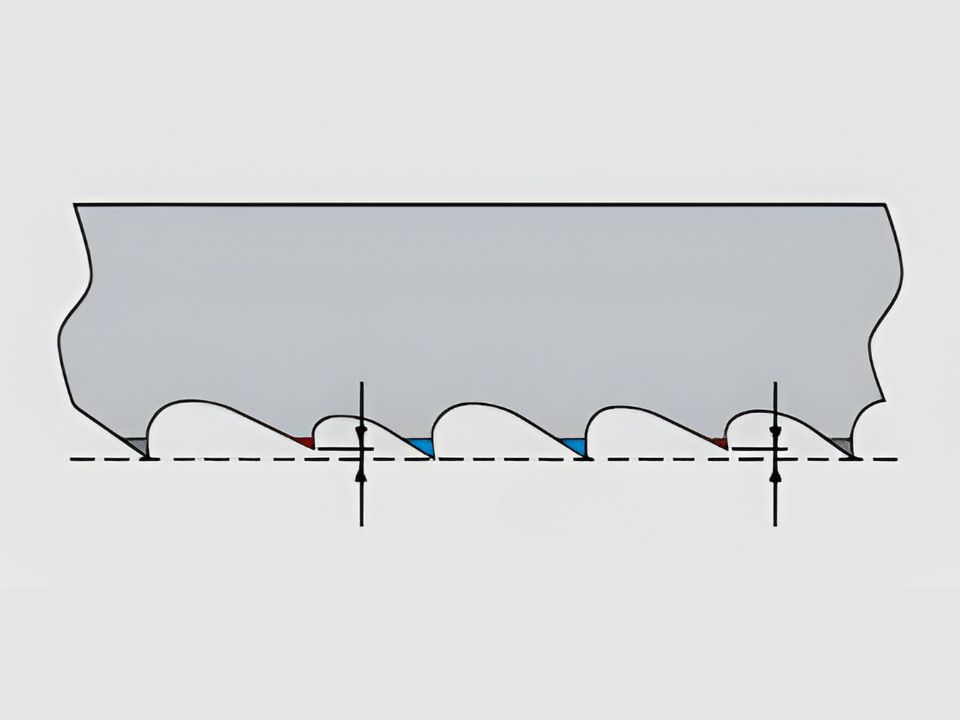

HI-LO GEOMETRY The special HI-LO geometry, characterized by a difference in tooth height, reduces friction during cutting and lowers cutting resistance. This configuration is particularly effective on tougher materials such as stainless steels.
