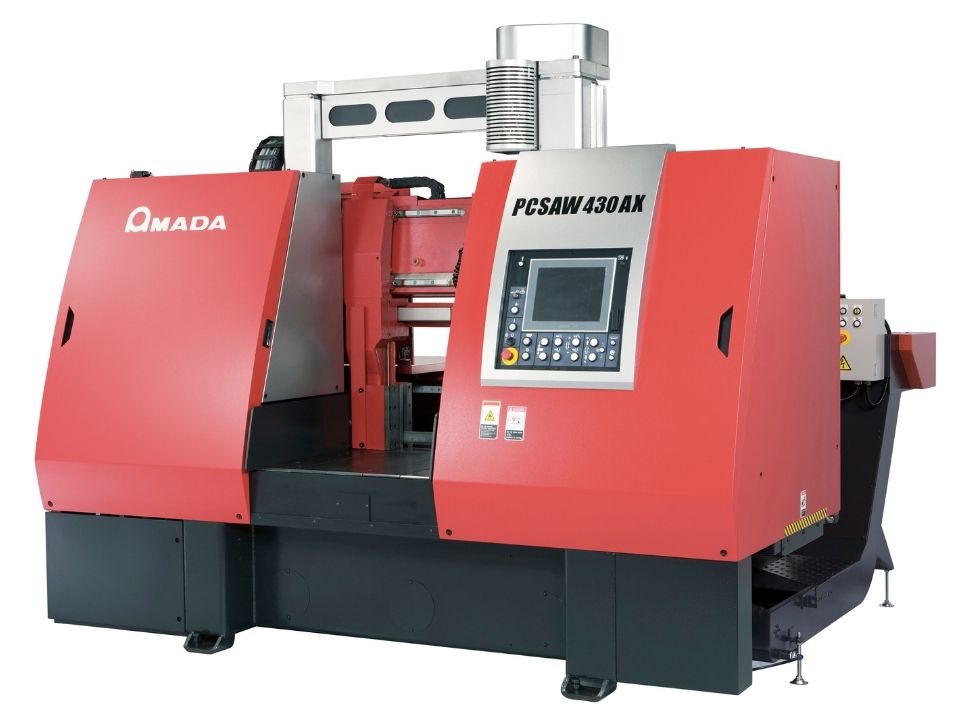

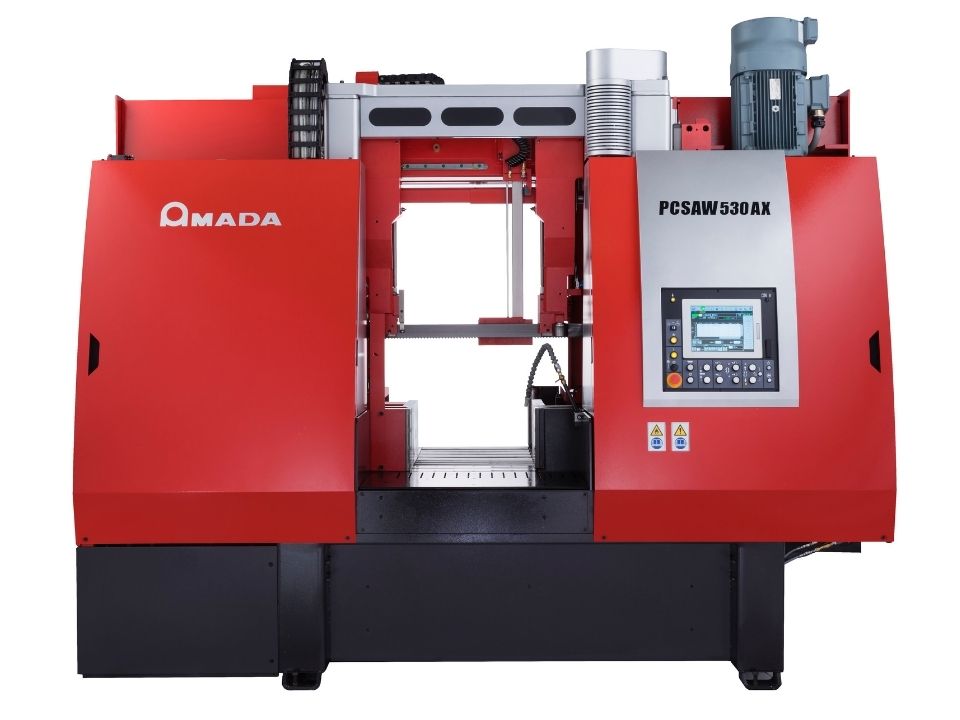

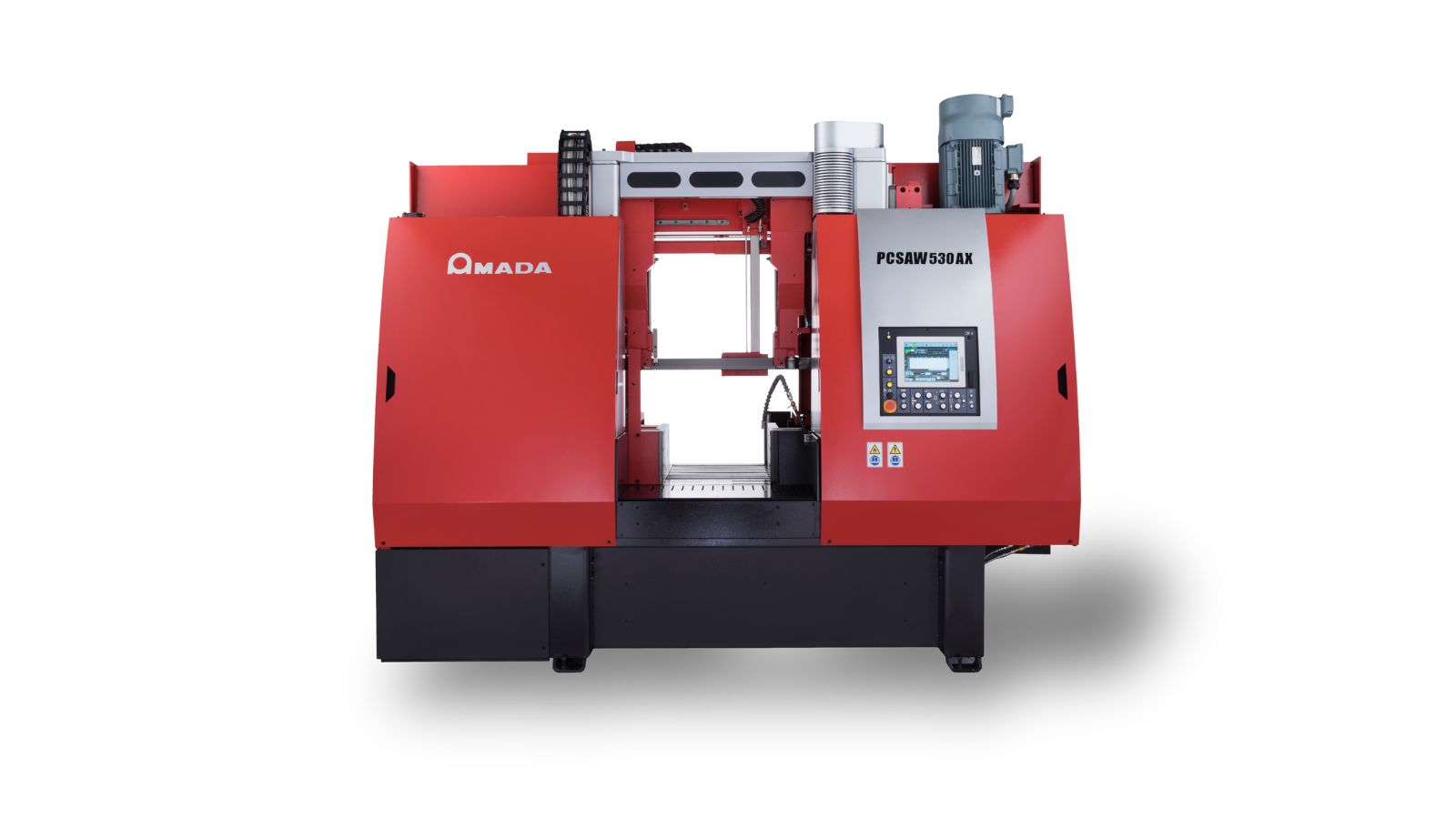

The PCSAW 430/530 X/AX series is designed for cutting difficult materials and for high-volume production environments where process continuity and control are essential. The integrated Pulse Cutting technology enhances blade penetration and reduces thermal stress on the tooth, ensuring stable cutting performance even on superalloys.
Building on these capabilities, the AX version features a servo-driven blade downfeed system with a ballscrew mechanism, providing even greater accuracy in material positioning. Operational efficiency is further improved by an optimized chip management system: the 3D dual-brush unit and dedicated conveyor ensure a constant chip flow, even in heavy-duty applications.
Thanks to the combination of Pulse Cutting technology, automatic feeding, and controlled chip evacuation, the machine reduces downtime and simplifies daily operations, resulting in a smoother and more reliable production process.

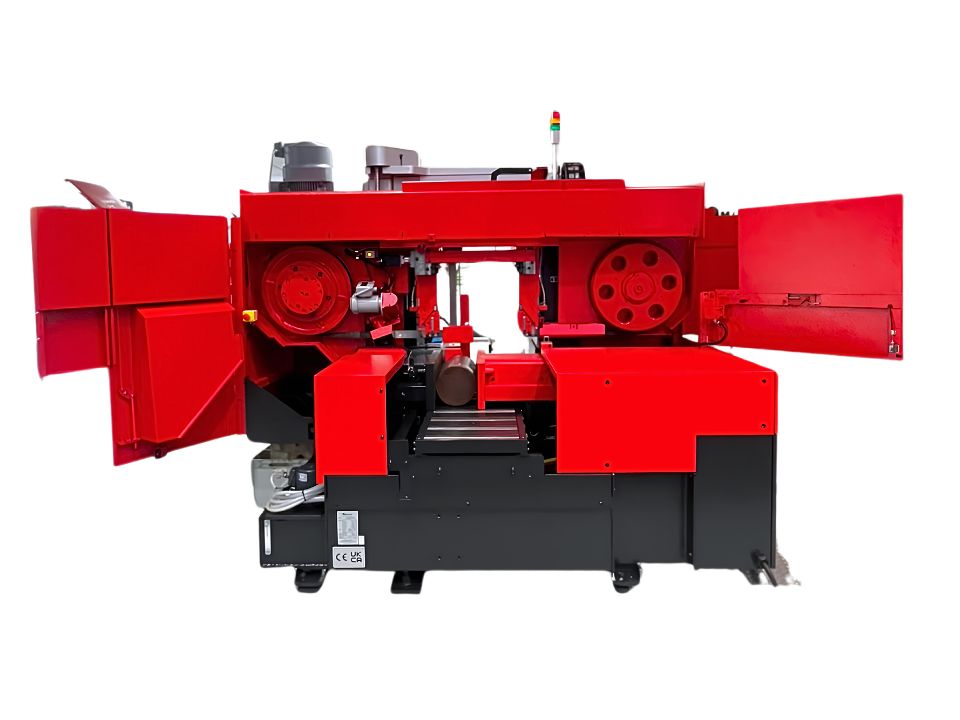

HIGH-RIGIDITY COLUMN STRUCTURE
The dual-column frame ensures mechanical stability and reduces vibration during cutting.

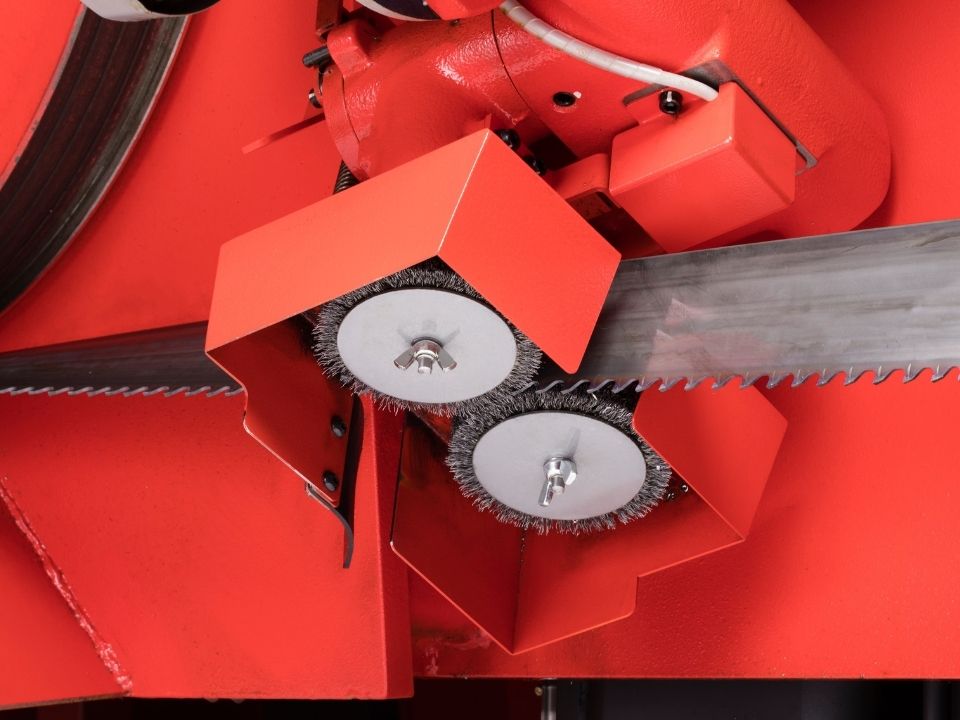

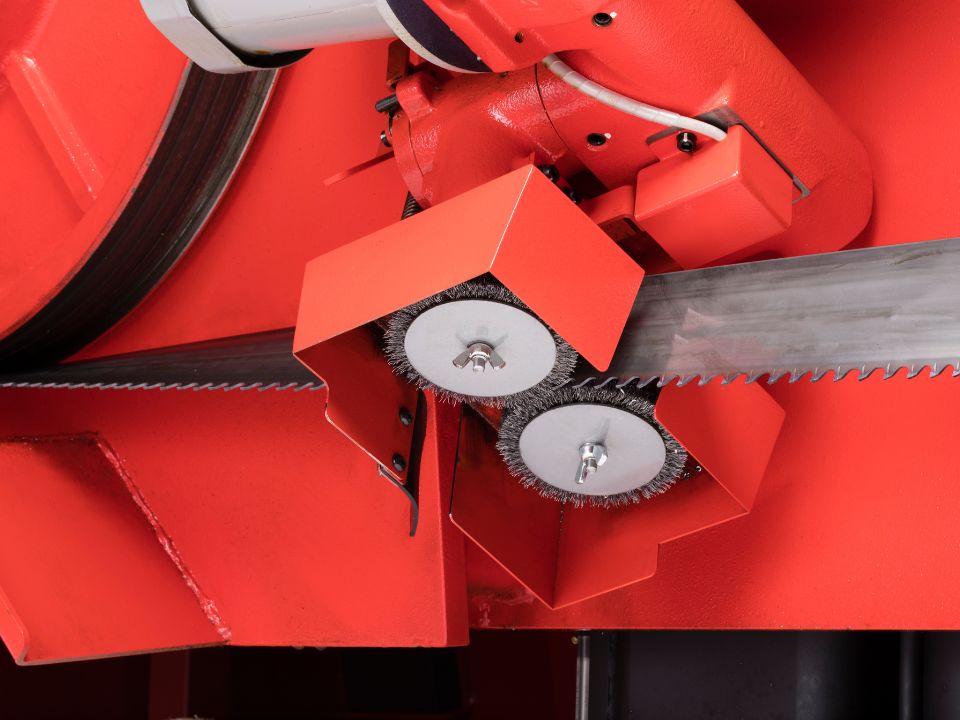

3D DOUBLE BRUSH BLADE CLEANING SYSTEM
Two automatically adjusting brushes efficiently remove chips from the blade, improving cut quality and extending blade life.
SCRAPER-TYPE CHIP CONVEYOR
The high-capacity conveyor evacuates large volumes of chips without interruption, making it ideal for heavy-duty applications.
HIGH-RIGIDITY COLUMN STRUCTURE
The dual-column frame ensures mechanical stability and reduces vibration during cutting.
3D DOUBLE BRUSH BLADE CLEANING SYSTEM
Two automatically adjusting brushes efficiently remove chips from the blade, improving cut quality and extending blade life.
SCRAPER-TYPE CHIP CONVEYOR
The high-capacity conveyor evacuates large volumes of chips without interruption, making it ideal for heavy-duty applications.
| PCSAW 430 X/AX | PCSAW 530 X/AX | |||
| Cutting capacity | Round material | mm | φ 30 ~ φ 430 | φ 30 ~ φ 530 |
| Square material | mm | ☐ 30 ~ ☐ 430 | ☐ 30 ~ ☐ 530 | |
| Bundle cutting capacity | Yes | |||
| Min. bundle cutting capacity | mm | 45 x 180 | 60 x 200 | |
| Max. bundle cutting capacity | mm | 200 x 300 | 215 x 350 | |
| Minimum cutting length manual mode | mm | 10 | 10 | |
| Minimum cutting length automatic mode | mm | 10 | 10 | |
| Blade drive motor | kW | 11 | 15 | |
| Installed power | kVA | 25/26 | 33/34 | |
| Blade size | (W x T x L) | mm | 54 x 1.6 x 6100 | 67 x 1.6 x 7000 |
| Blade speed | m/min | 15 ~ 120 | 15 ~ 120 | |
| Feed carriage stroke | Single repeatable stroke | mm | 500 | 500 |

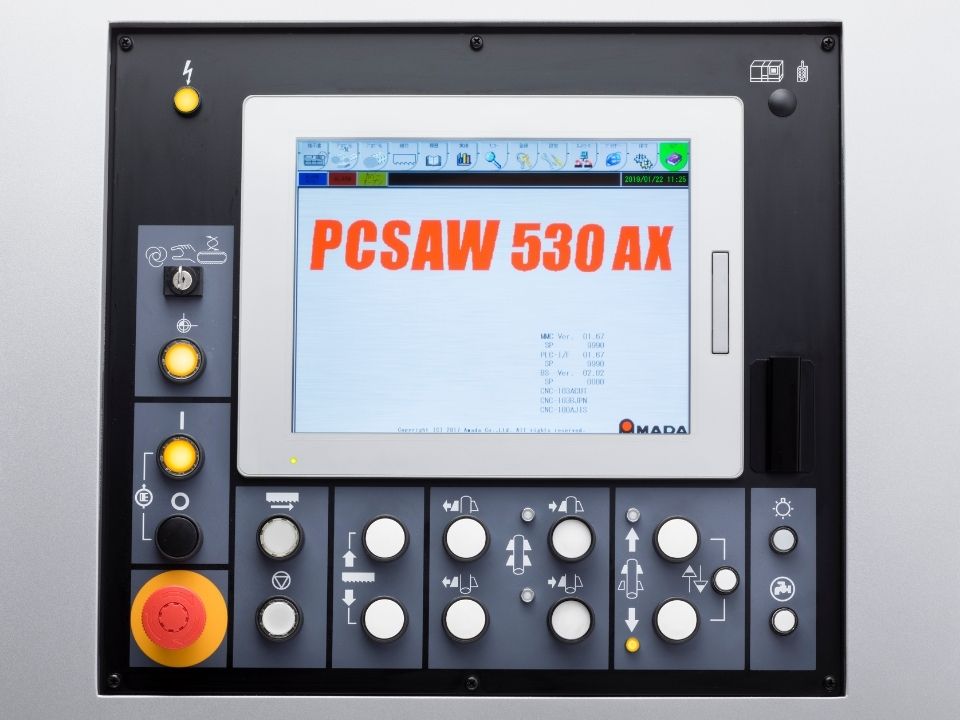

| Control unit | CNC | CNC | ||
| Maximum load capacity | kg | 3000 | 4600 | |
| Table height | mm | 700 | 800 | |
| Machine dimensions | (W x L x H) | mm | 2850 x 2113 x 2285 | 3240 x 2113 x 2600 |
| Machine weight | kg | 4700 | 5500 |
Subject to technical modifications / Illustrations partially with special accessories
