VM 2500 & VM 3800

THE SOLUTION FOR VERTICAL CUTTING OF LONG PLATES UP TO 2500 AND 3800 MM IN LENGTH

/
Vai alla lista
  1. Prodotti
  2. Cutting, Milling & Grinding
  3. Bandsaw Machines
  4. Vertical Plate Saws​
  5. VM 2500 & VM 3800

Precision and control in vertical cutting of extra-large formats

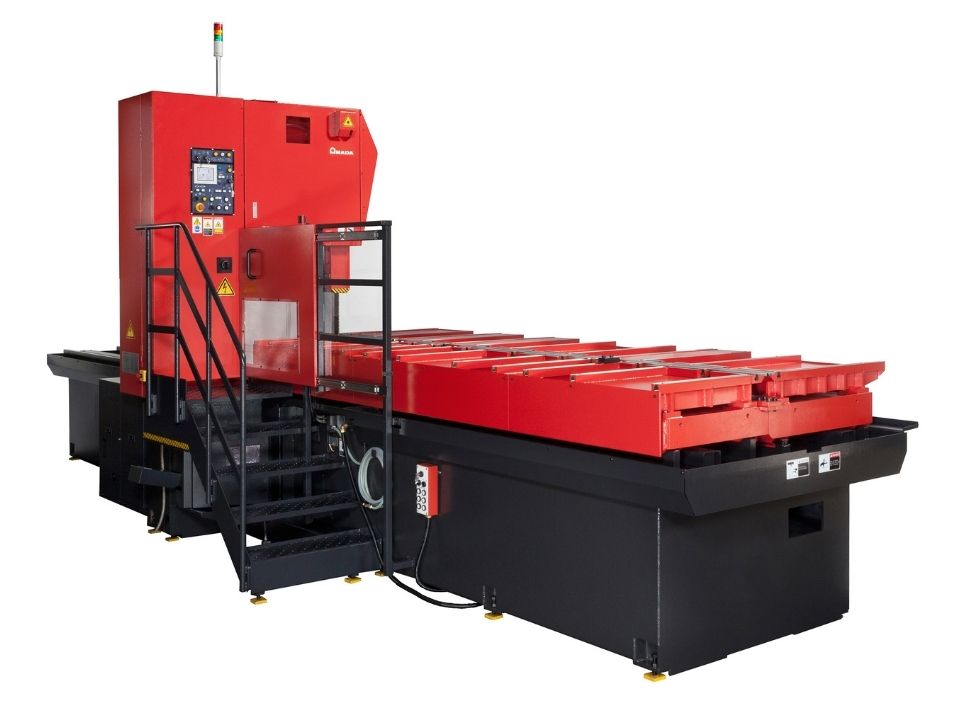

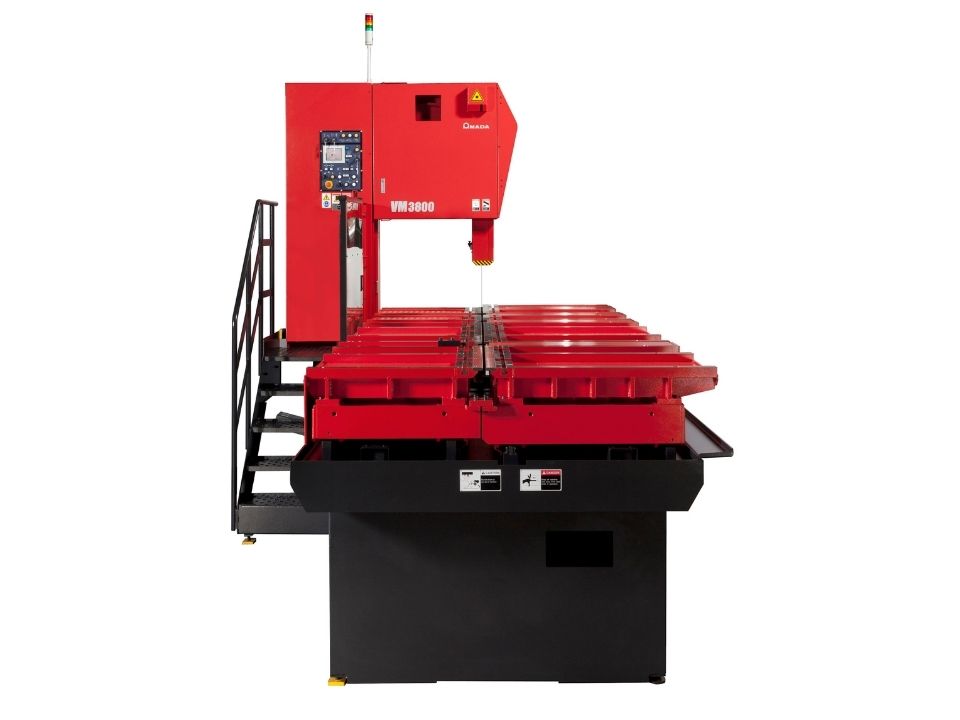

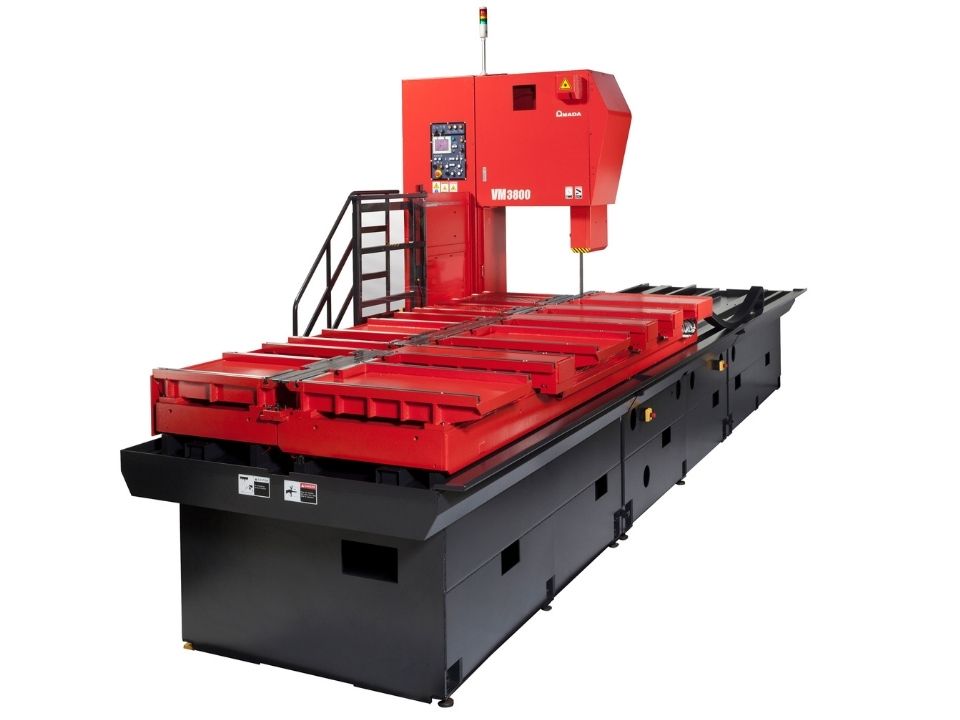

The VM 2500 and VM 3800 are designed for vertical cutting of large plates and solid blocks, featuring a servo-controlled moving table that ensures smooth and precise motion on linear guides.
Selectable cutting height and the extra-large 67 × 1.6 mm blade (VM3800) ensure stability and surface finish quality, even on very large or difficult-to-machine materials.
Automatic functions such as blade guides, wear-compensated blade cleaning brush and CNC-Lite simplify set-up, reduce manual intervention and ensure continuous operation.

DESIGNED FOR EXTRA-LARGE PLATES AND BLOCKS

Built to handle exceptionally large workpieces, offering stability and precision even on oversized materials.

AUTOMATIC POSITIONING BRUSH

The blade cleaning brush contributes to more efficient machine operation, especially thanks to its automatic positioning.

END-OF-STROKE REGULATOR

The optional end-of-stroke sensor detects the position of the workpiece during feeding and transmits the data to the CNC control for precise and reliable measurement.

NEXT-GENERATION AMADA CNC CONTROL

The Amada CNC allows the operator to select the material and blade type, automatically calculating the optimal cutting parameters for high performance and ease of use.

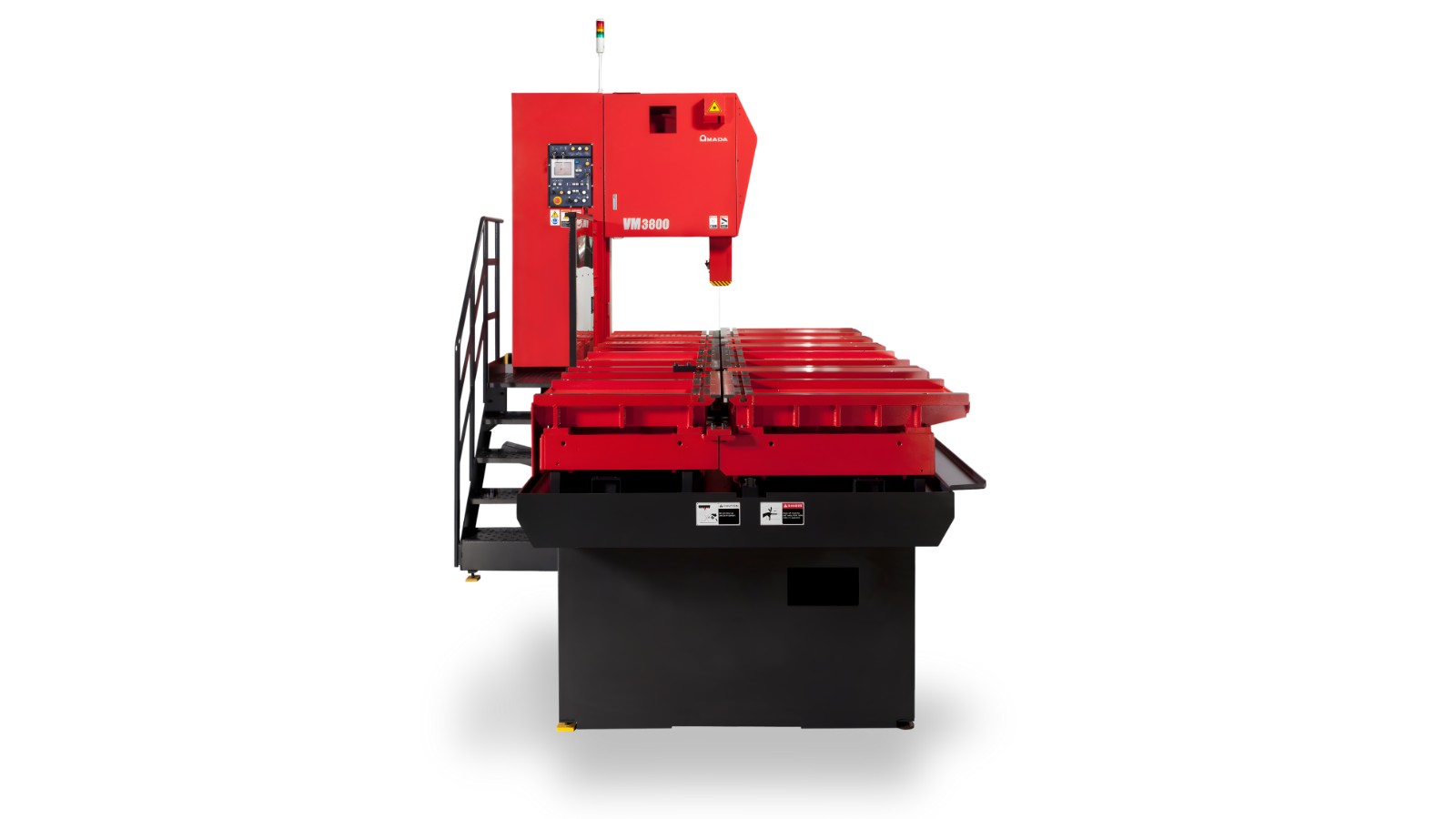

Hotspots

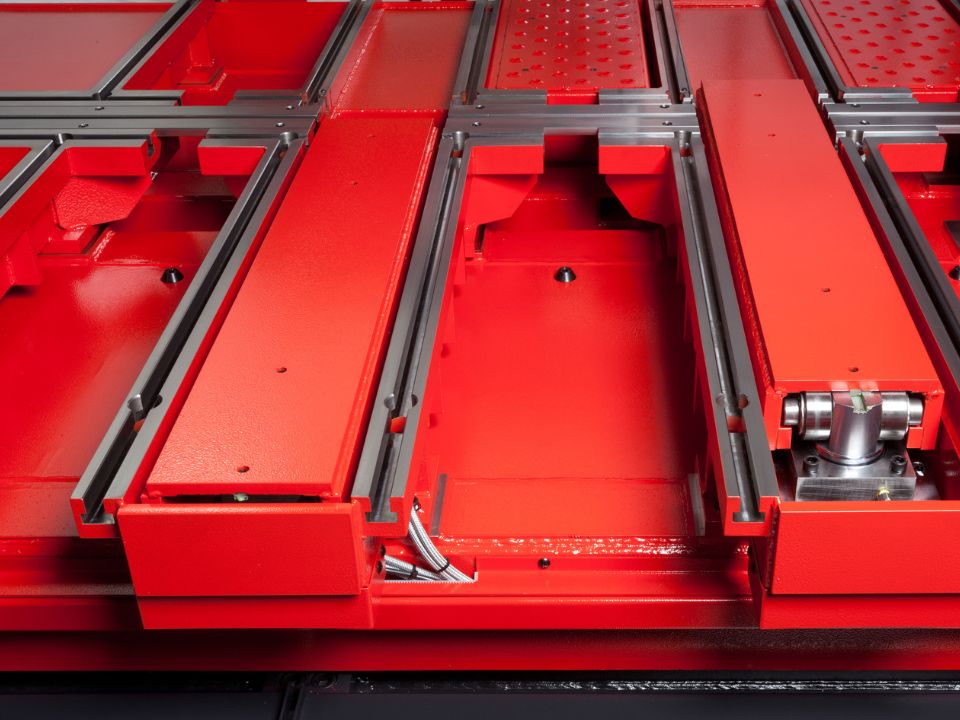

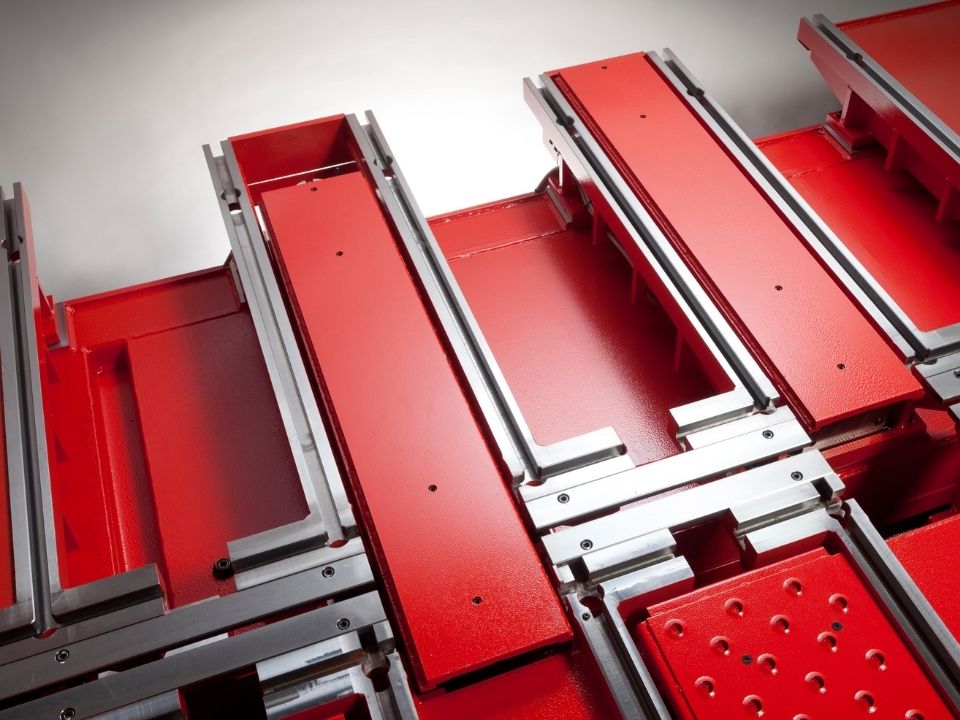

SERVO-DRIVEN MOVING TABLE

Provides controlled, precise movement of heavy workpieces during vertical cutting.

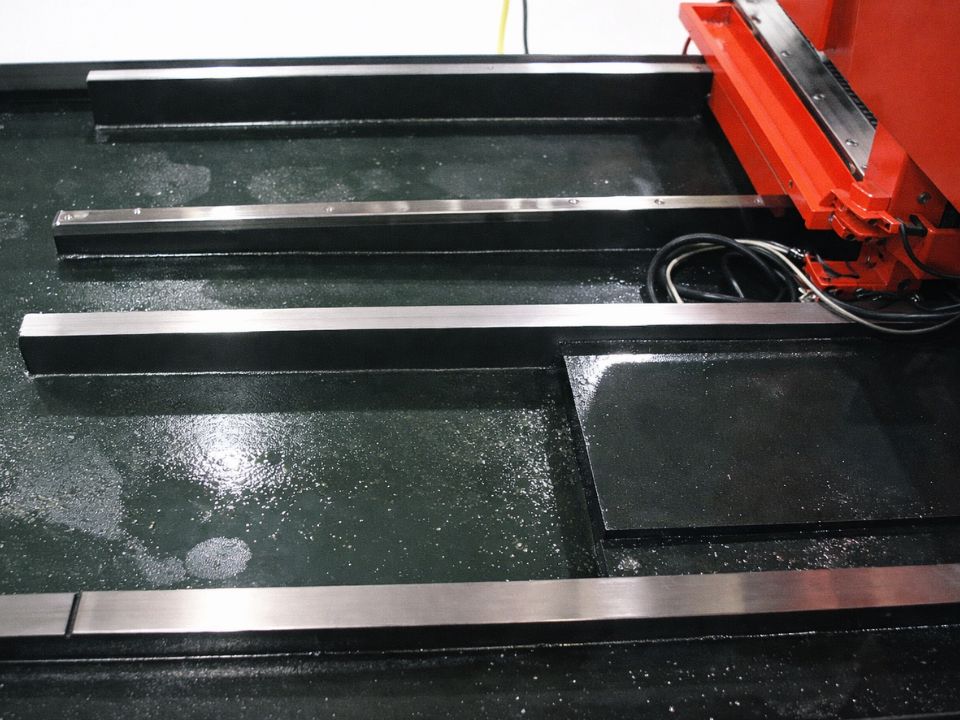

AUTOMATIC BLADE GUIDE ADJUSTMENT

Automatically positions the blade guide according to preset material size, ensuring accuracy and stability.

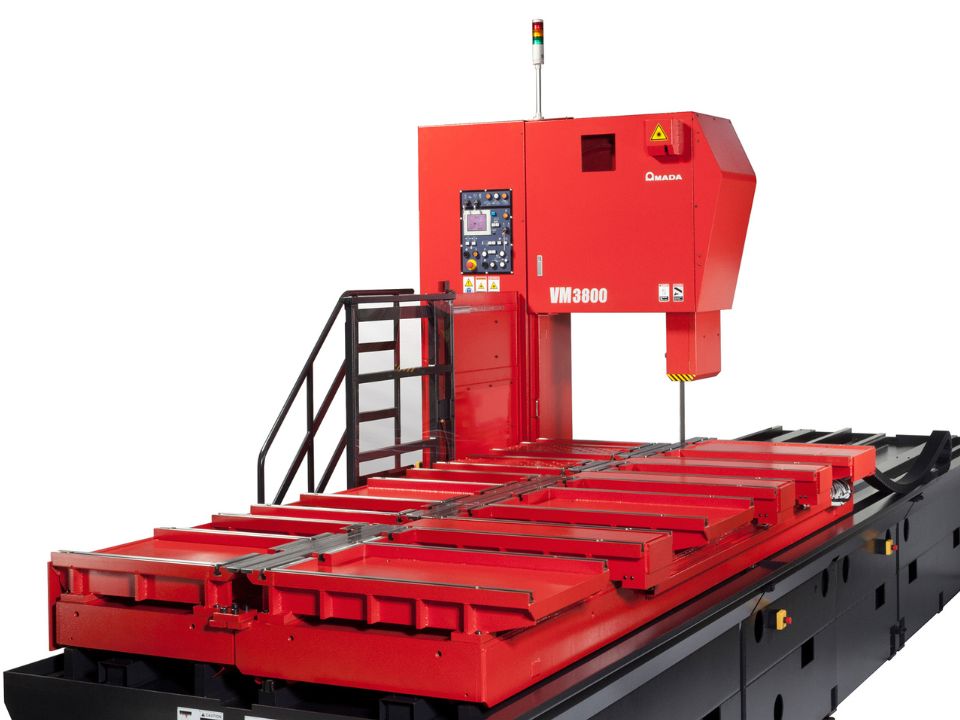

EXTRA-WIDE CUTTING BLADE

The wide blade increases rigidity and enhances cutting quality on large-section materials.

SERVO-DRIVEN MOVING TABLE

Provides controlled, precise movement of heavy workpieces during vertical cutting.

AUTOMATIC BLADE GUIDE ADJUSTMENT

Automatically positions the blade guide according to preset material size, ensuring accuracy and stability.

EXTRA-WIDE CUTTING BLADE

The wide blade increases rigidity and enhances cutting quality on large-section materials.

Dati tecnici

      VM 2500       VM 3800
      Standard [1] 54 mm blade [2] 800 mm cutting height [1] + [2] Standard Option
Cutting capacity Cross cutting mm 508 508 508 508 800 800 1524
  Height mm 508 508 800 800 600 600 1016
  Longitudinal cutting mm 2515 2515 2515 2515 3800 6500 3810
Blade drive motor   kW 5.5 5.5 5.5 5.5 7.5 7.5 7.5
Blade size (W x T x L) mm 41 x 1.3 x 4670 54 x 1.6 x 4670 41 x 1.3 x 5300 54 x 1.6 x 5300 67 x 1.6 x 6400 67 x 1.6 x 6400 67 x 1.6 x 9650
Blade speed   m/min 10 ~ 90 10 ~ 90 10 ~ 90 10 ~ 90 10 ~ 80 10 ~ 80 10 ~ 80
Control unit     CNC CNC CNC CNC CNC
Table height   mm 1005 1005 1005 1005 1410 1410 1410
Worktable dimensions with T-slots   mm 547 x 3095 547 x 3095 547 x 3095 547 x 3095 1020 x 4282 1020 x 6982 1020 x 4282
Machine dimensions (W x L x H) mm 5863 x 1702 x 2450 5863 x 1702 x 2450 5863 x 1702 x 2765 5863 x 1702 x 2765 8472 x 2678 x 3156 13872 x 2678 x 3156 8472 x 4024 x 4268
Machine weight   kg 5500 5500 5500 5500 10000 16000 17400

Subject to technical modifications / Illustrations partially with special accessories
