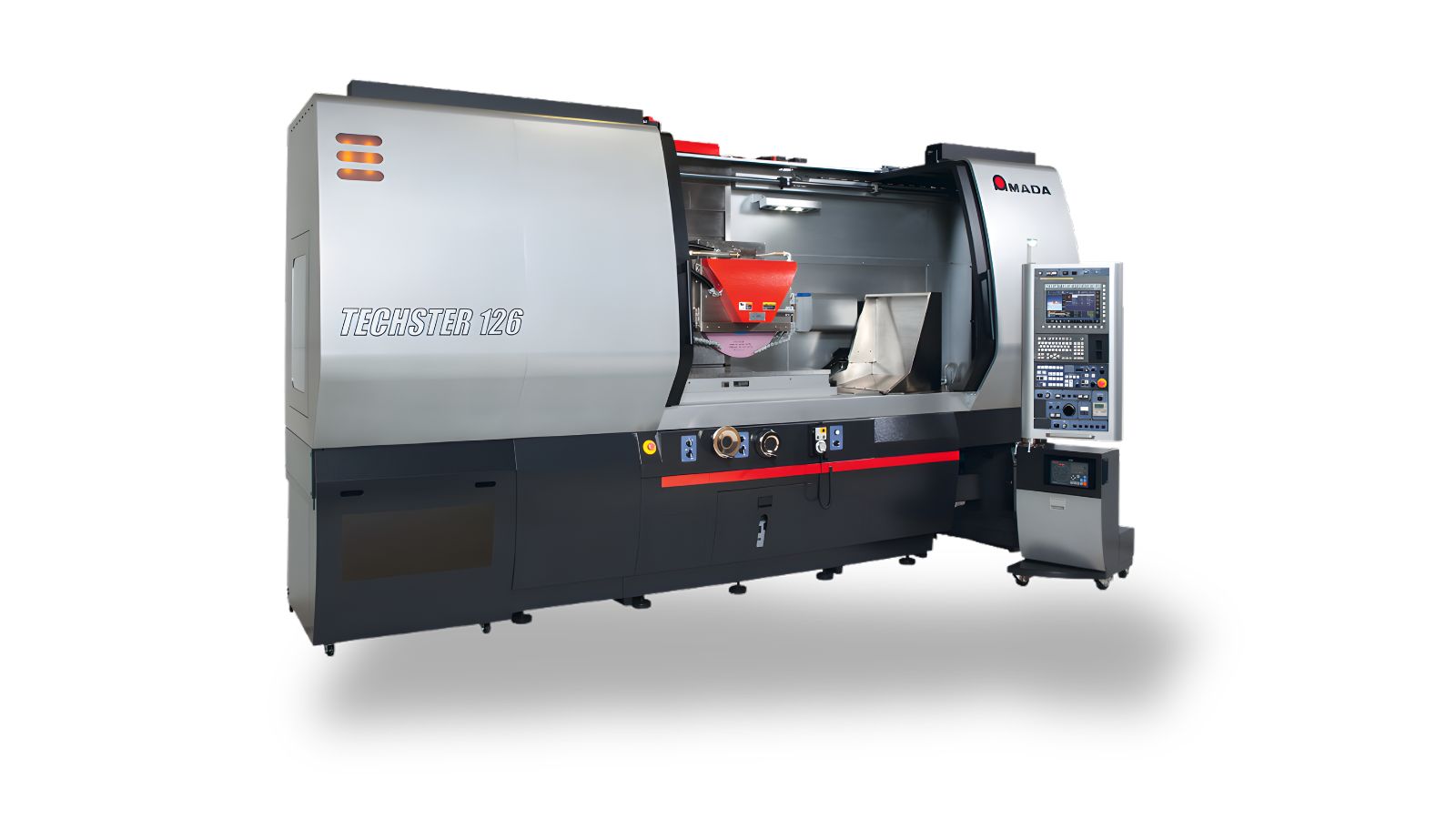

The Techster 104, 105, 106 and 126 are designed for users who handle oversized workpieces and require stable, smooth, and consistently precise grinding. Their extremely rigid bridge-type structure provides a solid foundation that maintains accuracy even during demanding passes or when machining heavy parts. Despite their large size, the machines offer surprisingly refined and uniform control.
At the heart of the Techster series lies its motion system: servo drives combined with ball-screw technology on all axes. No hydraulics, no fluctuations, just clean, precise and repeatable movements.
This is enhanced by the Fanuc 32i control with intuitive programs that simplify surface grinding, slots, models, and even complex profiles. Operators can work smoothly, guided by clear and efficient cycles.

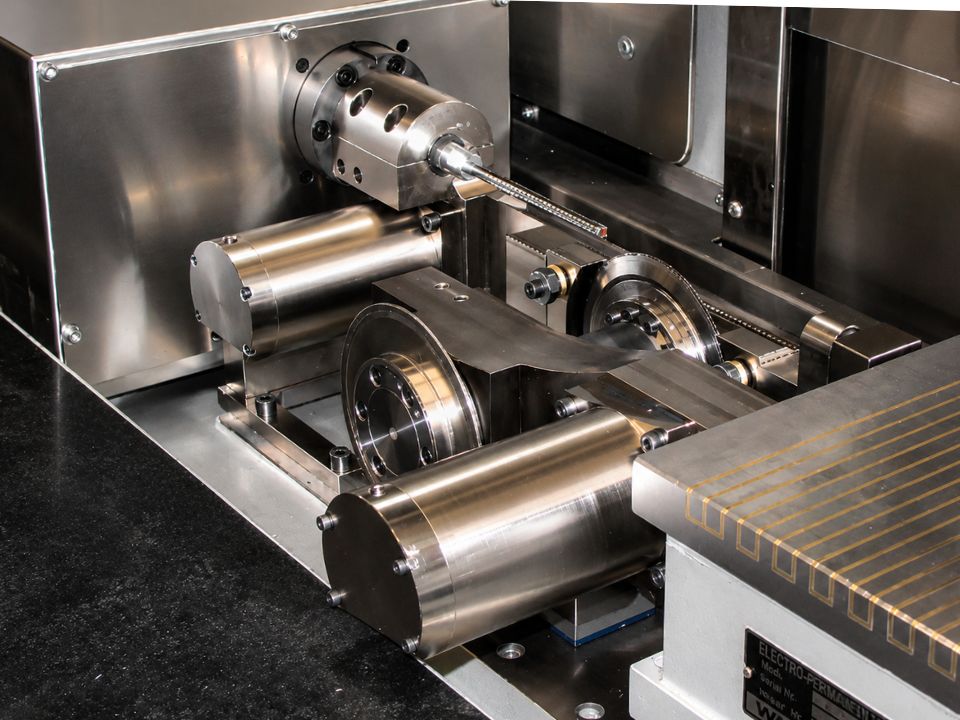

WHEEL DRESSER
Wheel dressing system designed to accurately restore the grinding wheel profile using diamond dressing tools. It enables complex geometries to be produced while maintaining high accuracy and consistent machining quality.

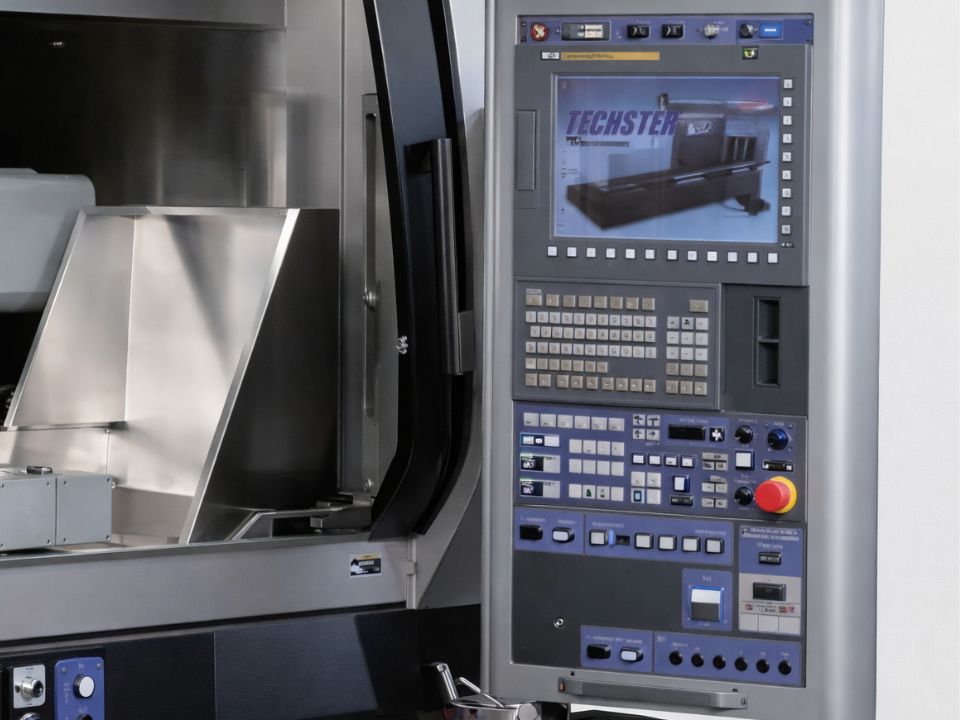

INTEGRATED OPERABILITY AND SAFETY
CNC control system with a 15-inch touchscreen, designed for intuitive programming and complete process management. Dedicated macro functions, CAD profile import and advanced features simplify even the most complex grinding applications.

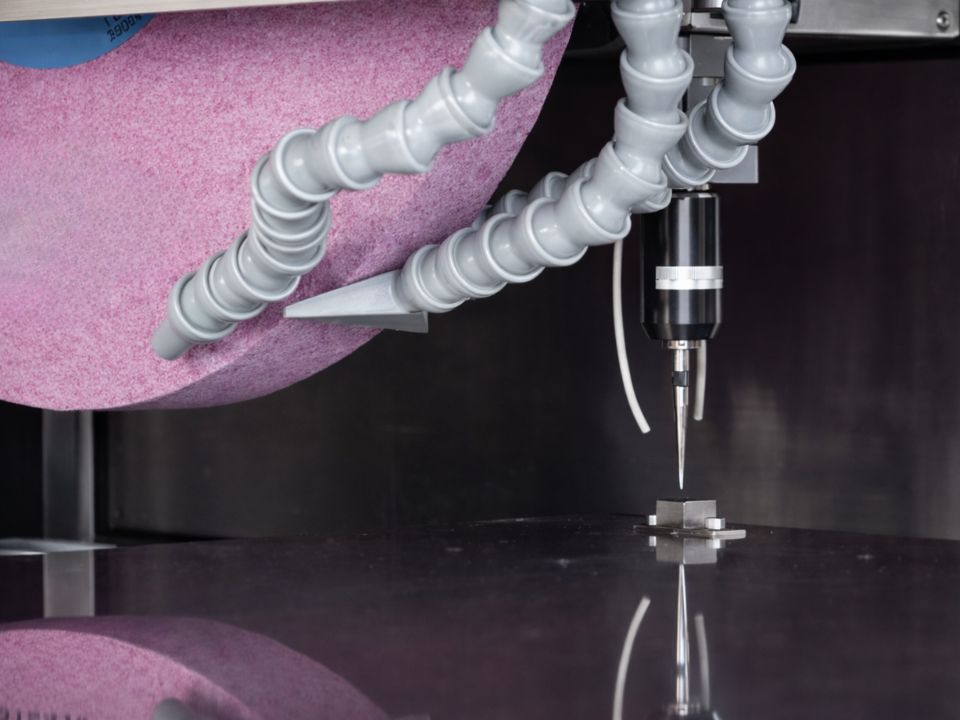

AUTOMATIC MEASURING SYSTEM
Integrated measuring system that automatically checks workpiece dimensions directly on the machine. It enables in-process grinding compensation without removing the workpiece, ensuring accuracy of up to ±0.001 mm while reducing quality inspection time.
WHEEL DRESSER
Wheel dressing system designed to accurately restore the grinding wheel profile using diamond dressing tools. It enables complex geometries to be produced while maintaining high accuracy and consistent machining quality.
INTEGRATED OPERABILITY AND SAFETY
CNC control system with a 15-inch touchscreen, designed for intuitive programming and complete process management. Dedicated macro functions, CAD profile import and advanced features simplify even the most complex grinding applications.
AUTOMATIC MEASURING SYSTEM
Integrated measuring system that automatically checks workpiece dimensions directly on the machine. It enables in-process grinding compensation without removing the workpiece, ensuring accuracy of up to ±0.001 mm while reducing quality inspection time.
| TECHSTER 104 | TECHSTER 105 | TECHSTER 106 | TECHSTER 126 | |||
| Spindle speed | rpm | 300 - 2000 | 300 - 2000 | 300 - 2000 | 300 - 1500 | |
| Spindle power | kW | 15 | 15 | 15 | 15 | |
| Grinding wheel | (Ø × Bore) | mm | 405 x 127 | 405 x 127 | 405 x 127 | 510 x 127 |
| Table travel | (X / Y) | mm | 1200 x 460 | 1300 x 560 | 1300 x 660 | 1500 x 660 |
| Maximum feed rate | mm/min | 40000 | 40000 | 40000 | 40000 | |
| Minimum increment | µm | 0.1 | 0.1 | 0.1 | 0.1 | |
| Magnetic chuck size | (L × W) | mm | 800 x 400 | 1000 x 500 | 1000 x 600 | 1200 x 600 |
| Maximum workpiece load (including magnetic chuck) | kg | 1000 | 1500 | 1500 | 1500 |
Specifications may vary depending on configuration and optional equipment.
