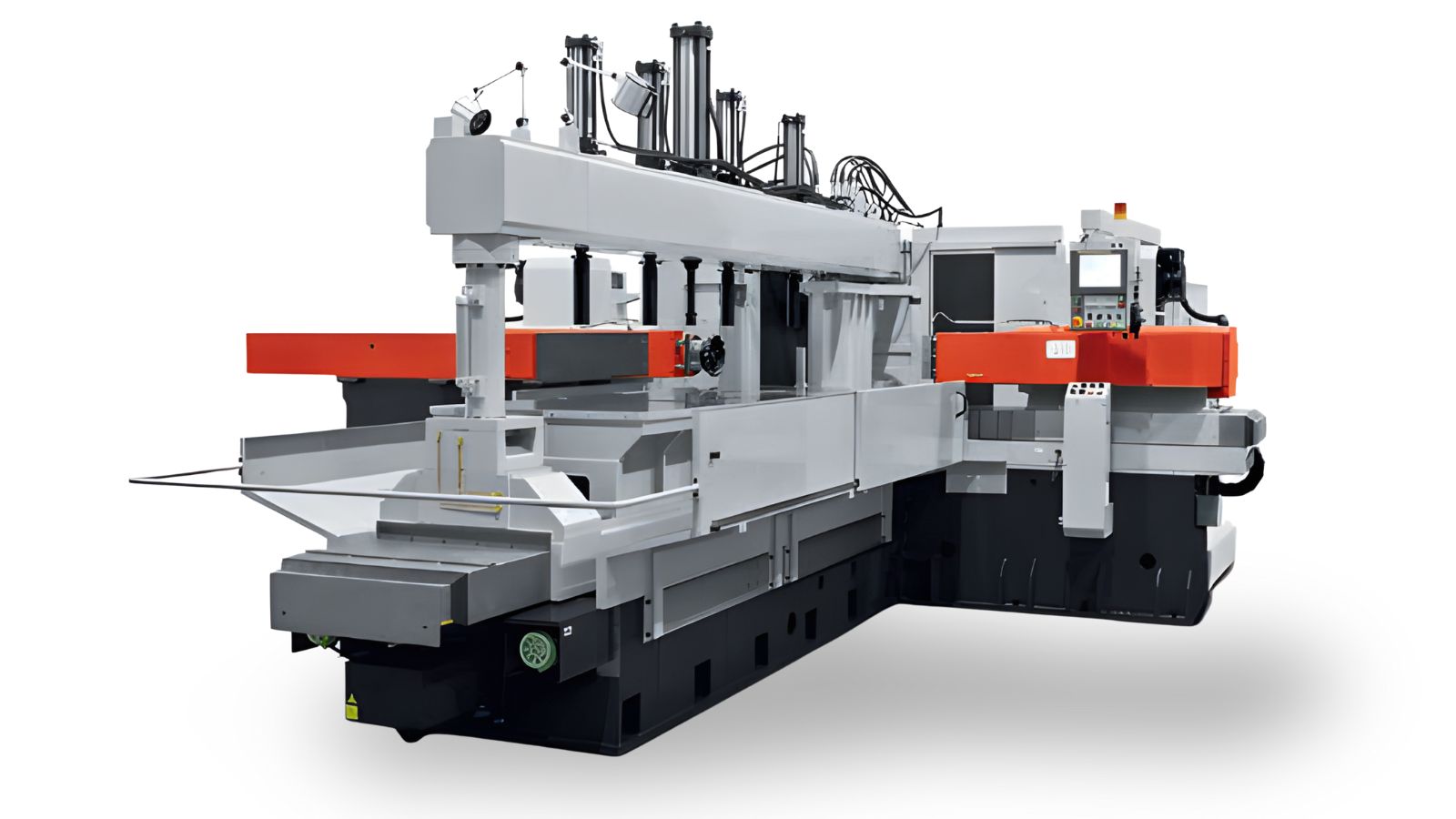

Designed to ensure consistent precision and reliable control on large-format components, the THV 1200 in the L version further expands application possibilities, enabling the machining of a wide range of products, from precision plates to the finishing of large slabs.
Automatic workpiece positioning and clamping systems simplify operator tasks, allowing quick setup and precise process control. An ideal solution for those seeking versatility, consistent quality and ease of use in a single machine.

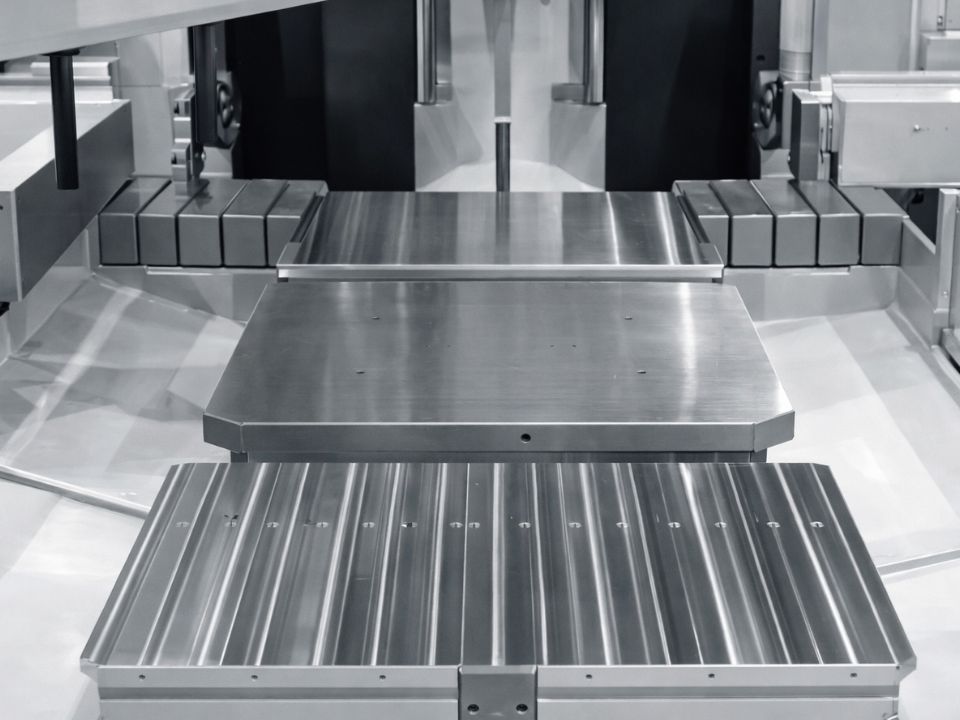

WORKPIECE CLAMPING SYSTEM
Hydraulic clamping that ensures precision during milling passes and edge-chamfering.

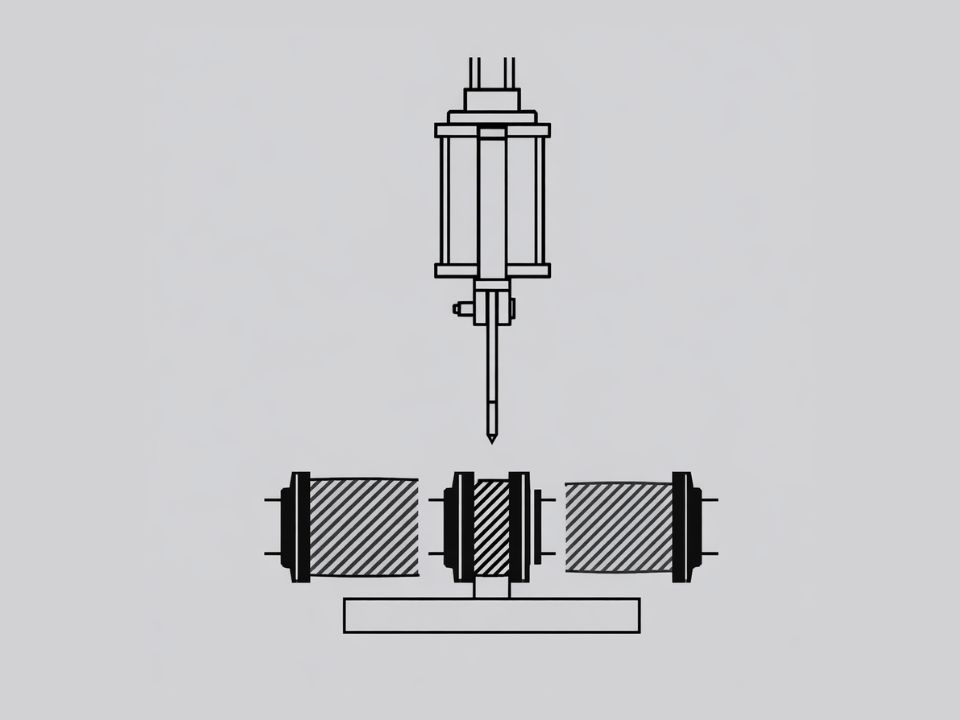

WORKPIECE SUPPORT FOR LONG PARTS
Dedicated support that stabilizes long workpieces throughout the operation.

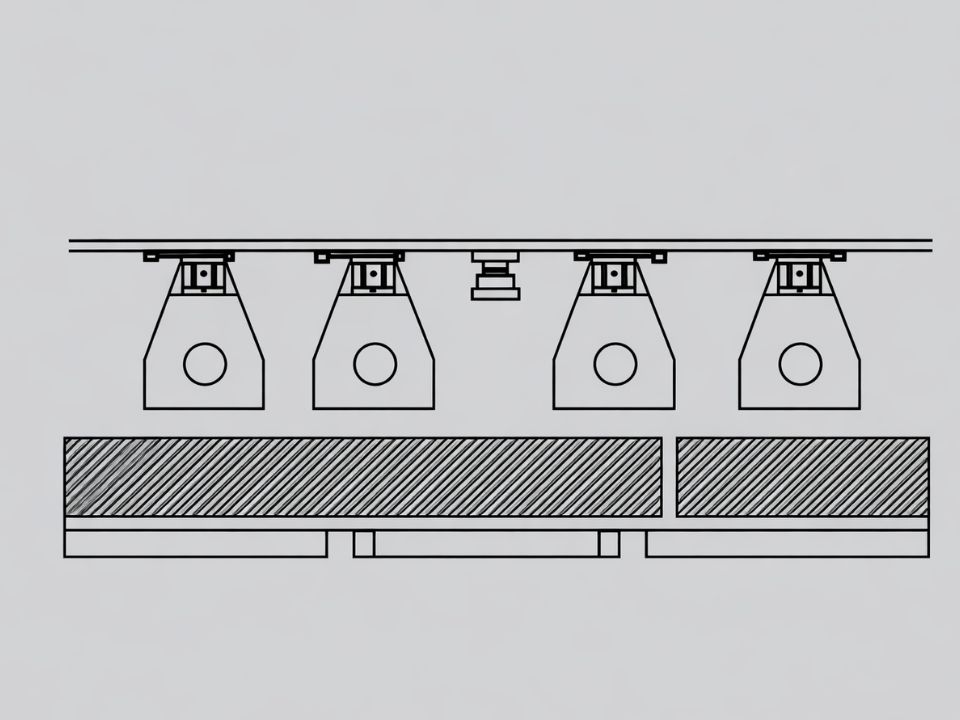

SIDE VIEW
Full visual reference of alignment and support across the entire length of the workpiece.
WORKPIECE CLAMPING SYSTEM
Hydraulic clamping that ensures precision during milling passes and edge-chamfering.
WORKPIECE SUPPORT FOR LONG PARTS
Dedicated support that stabilizes long workpieces throughout the operation.
SIDE VIEW
Full visual reference of alignment and support across the entire length of the workpiece.
| THV 1200 L (four-side machining) | THV 1200 L (two-side machining) | |||
| Maximum workpiece dimensions | (W x L x H) | mm | 1200 × 1200 × 230 | 1200 × 3000 × 230 |
| Minimum workpiece dimensions | (W x L x H) | mm | 250 × 250 × 10 | 80 × 1200 × 10 |
| Cutter diameter | mm | 250 | 250 | |
| Maximum power per spindle | kW | 11 | 11 | |
| Maximum torque per spindle | Nm | 495 | 495 | |
| Maximum workpiece weight | kg | 4000 | 6000 | |
| Machine weight | kg | 26000 | 23000 |
