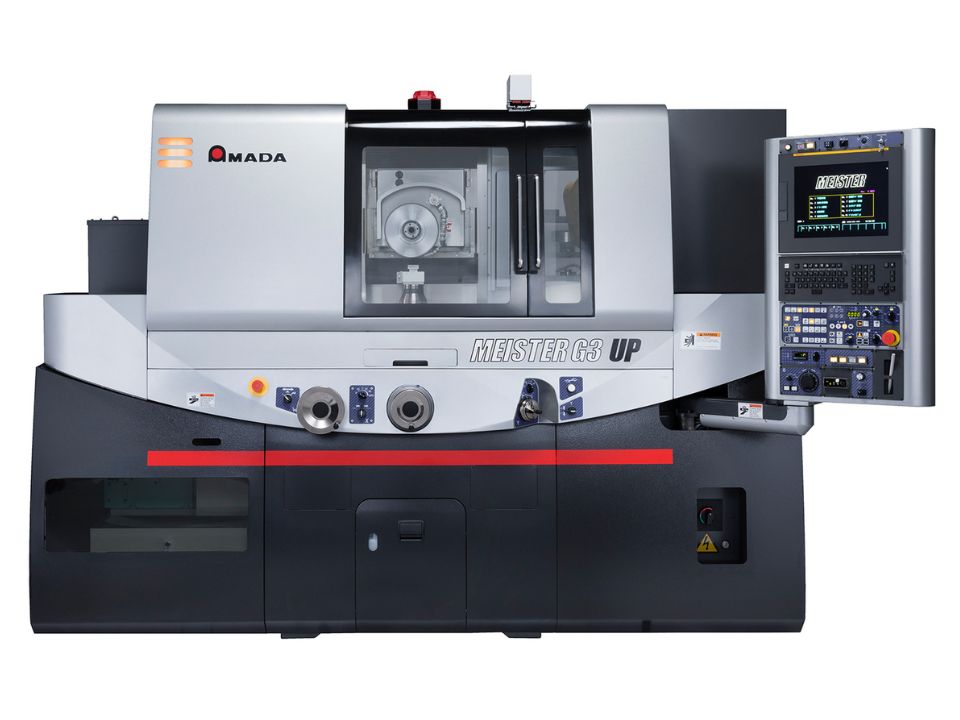

AMADA EU: MEISTER G3 UP Automated Profile Grinding Machine with Integrated Robot

A fully automatic grinding machine that elevates efficiency, control, and precision to the highest level

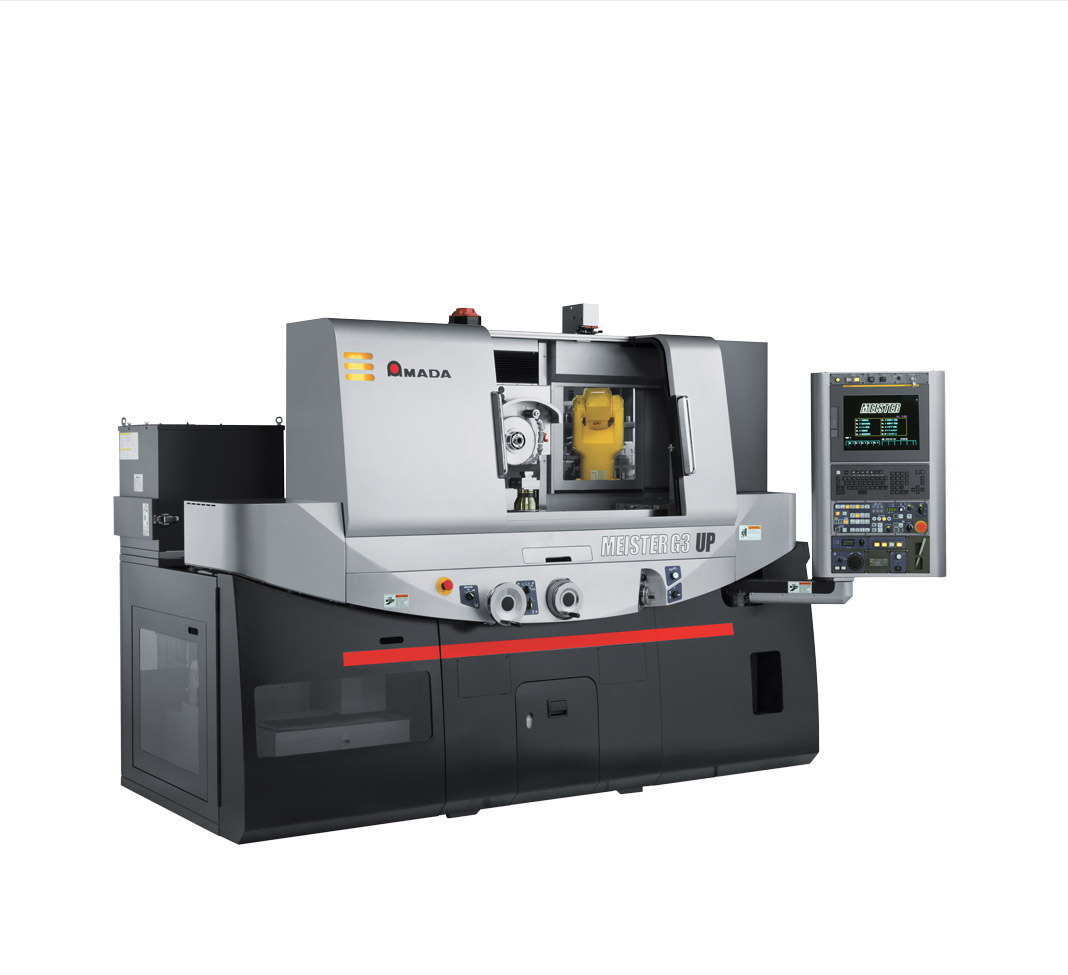

The MEISTER G3 UP is also available in a robotic cell configuration, designed to simplify production processes and increase productivity through fully integrated automation combining a FANUC robot, automatic workpiece exchange and in-cycle grinding wheel change. The result is a machine capable of operating autonomously over extended periods while consistently delivering outstanding precision and process reliability.

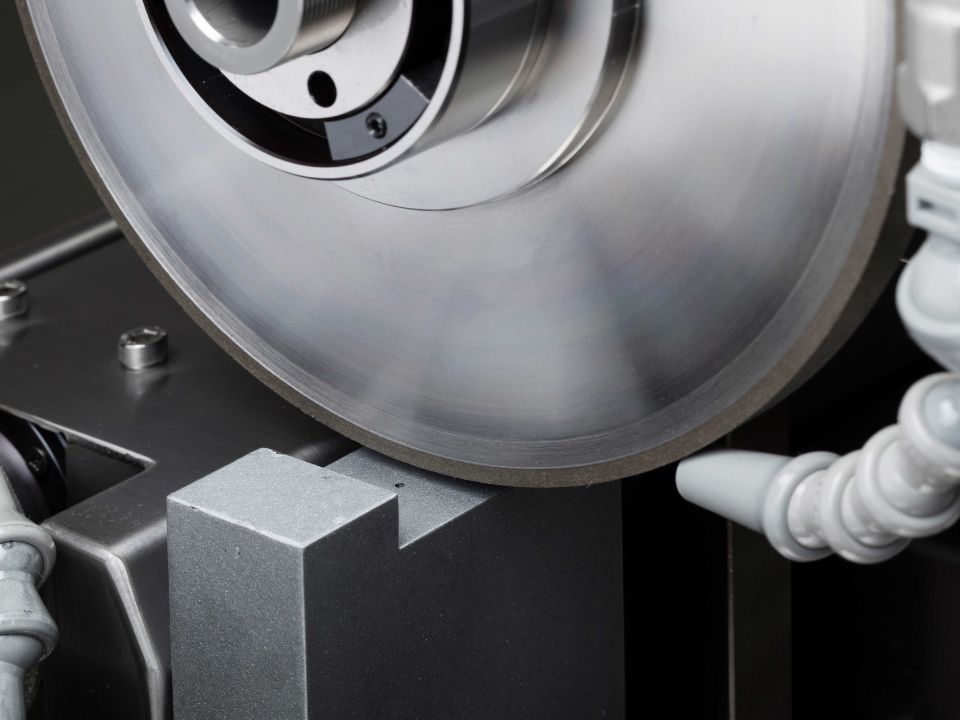

Thanks to the measuring probe integrated into the grinding head, the machine inspects the workpiece directly inside the machine, calculates the remaining stock, and performs the required passes to reach the programmed dimension. No operator intervention is needed: the G3 UP manages every step with accuracy and reliability.

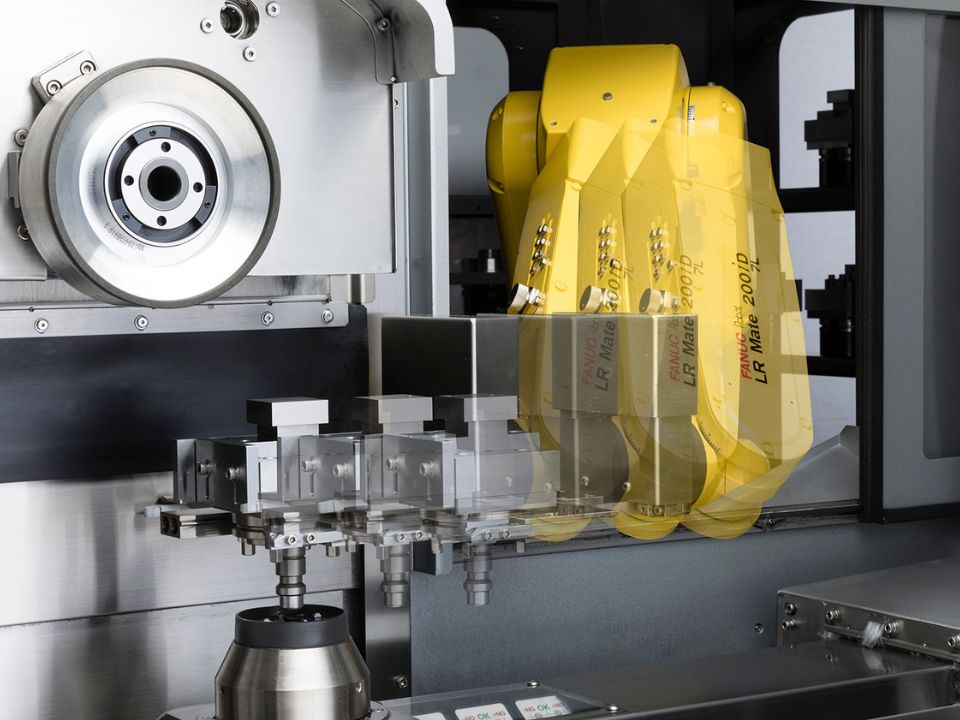

FULL AUTOMATION WITH FANUC ROBOT

Smart cycle management with automatic workpiece handling and continuous operation.

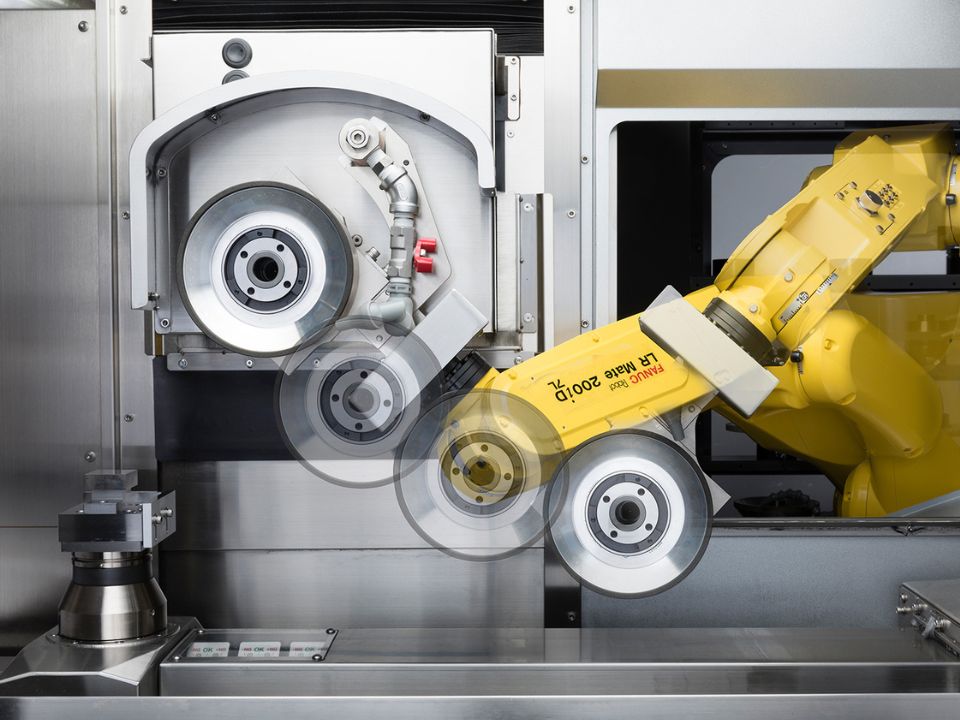

AUTOMATIC IN-CYCLE WHEEL CHANGE

The machine selects and replaces the required wheel without stopping production.

AIR MICROSENSOR FOR GRINDING WHEEL POSITIONING

The air microsensor enables precise grinding wheel positioning in three directions (up/down, back/forth) without direct contact with the workpiece, ensuring high accuracy and safe setup operations.

COMPACT DESIGN WITH INTEGRATED ATC/AWC STOCKER

The integrated ATC/AWC stocker provides up to 15 storage locations with a layout that can be configured to suit different production needs, while maintaining the same floor space as a standard machine.

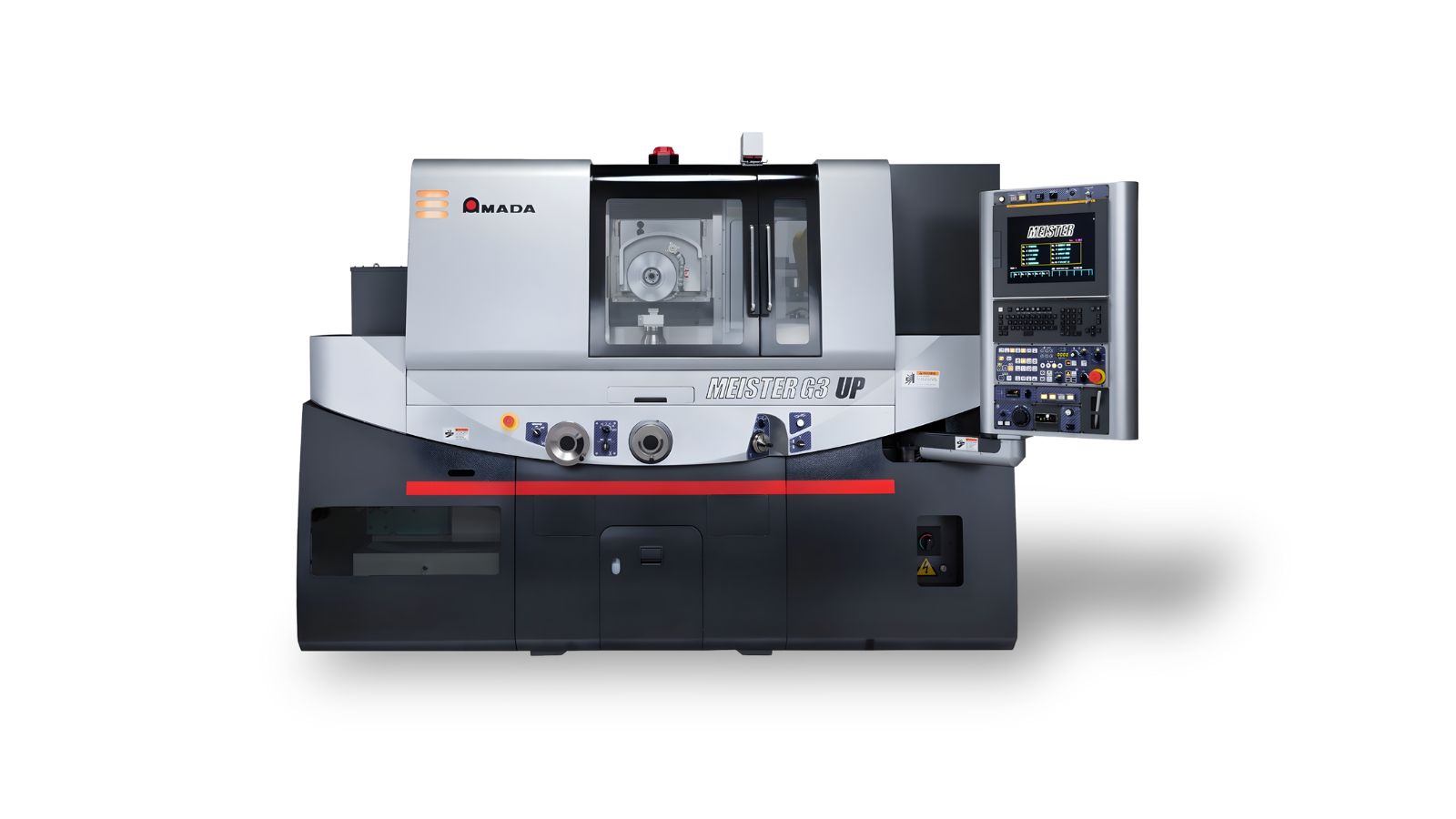

Hotspots

This picture displays optional equipment.

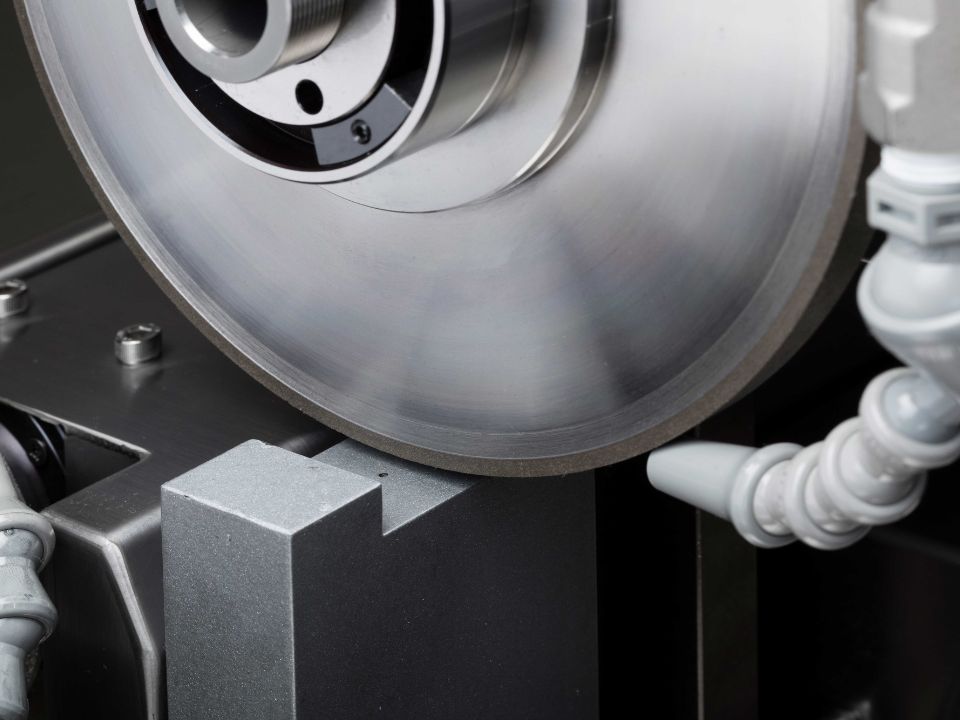

MEASURING PROBE CONTROL The probe detects dimensions and deviations for automatic in-cycle corrections.

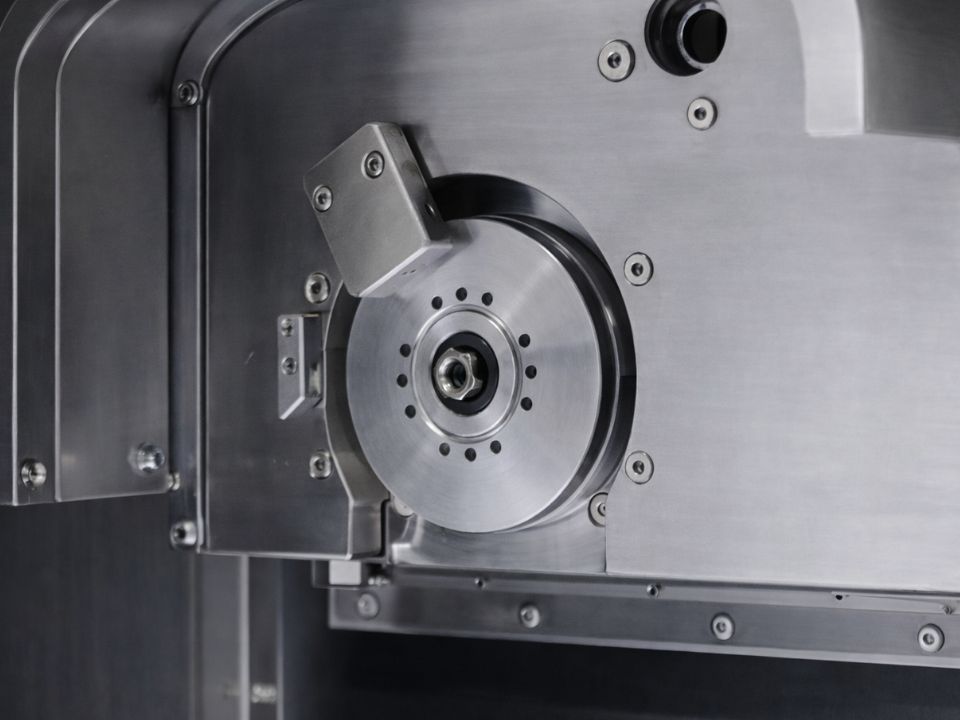

AUTOMATIC WHEEL-CLAMPING SPINDLE A fast and secure system that enables wheel changes without operator intervention.

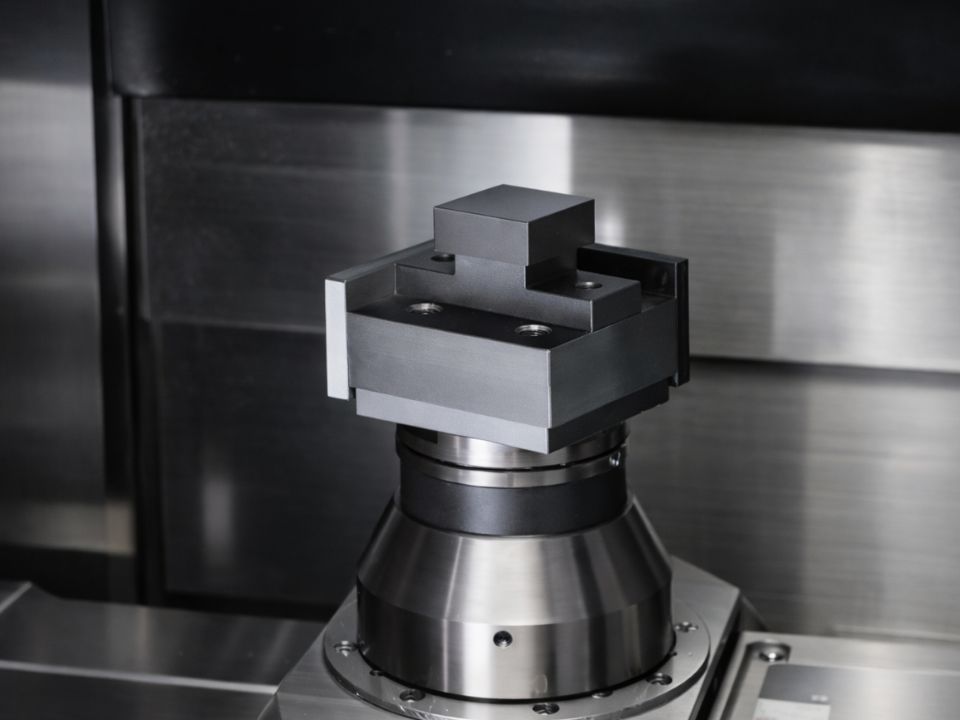

INDEXING TABLE WITH FIVE OPERATIONS PER SIDE A distinctive visual feature that automates multiple positions and speeds up workflow transitions.

MEASURING PROBE CONTROL The probe detects dimensions and deviations for automatic in-cycle corrections.

AUTOMATIC WHEEL-CLAMPING SPINDLE A fast and secure system that enables wheel changes without operator intervention.

INDEXING TABLE WITH FIVE OPERATIONS PER SIDE A distinctive visual feature that automates multiple positions and speeds up workflow transitions.

			MEISTER G3 UP
Spindle speed		rpm	500 - 4500
Spindle power		kW	3.7
Grinding wheel	(Ø × Bore)	mm	205 - 225 x 51
Longitudinal table travel	(X / Y)	mm	600 x 250
Maximum feed rate		mm/min	30000
Minimum increment		µm	0.1
Worktable size	(L × W)	mm	400 x 200
Maximum workpiece load		kg	150
