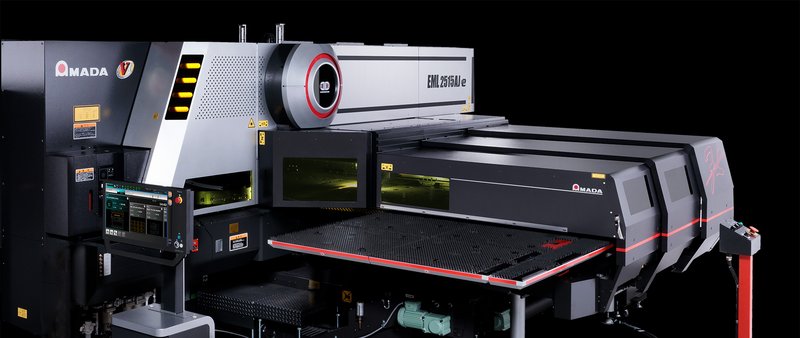

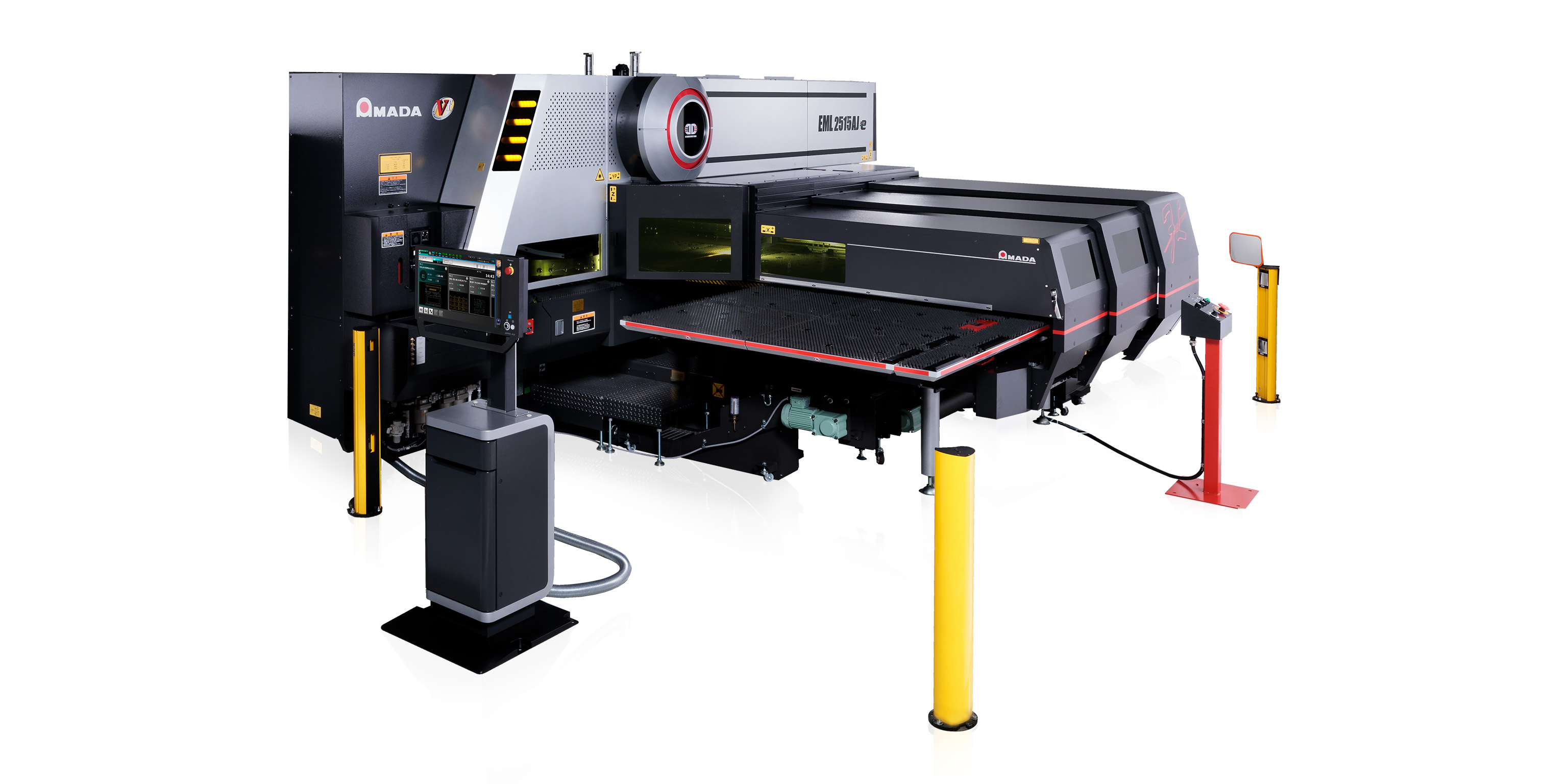

AMADA EU: EML-AJe: Fiber laser kombinovana mašina

High through put manufacturing cell

EML-AJe kombinovana mašina jedinstveno i perfektno ujedinjuje AMADA patentiranu tehnologiju dva servo motora i brzog integrisanog hibridnog Fiber optičkog lasera. Dizajniran da minimizuje ručne operacije, idealan je za rad kompletnog spektra.

BROŠURA

LASER INTEGRATION SYSTEM

As standard, the EML-AJe includes the

i-Nozzle Checker
(nozzle centring and condition check),
i-Optics Sensor
(protection glass monitoring),
i-Process Monitoring
(advanced cut and pierce assistance)
Mobile HMI
(remote machine information).

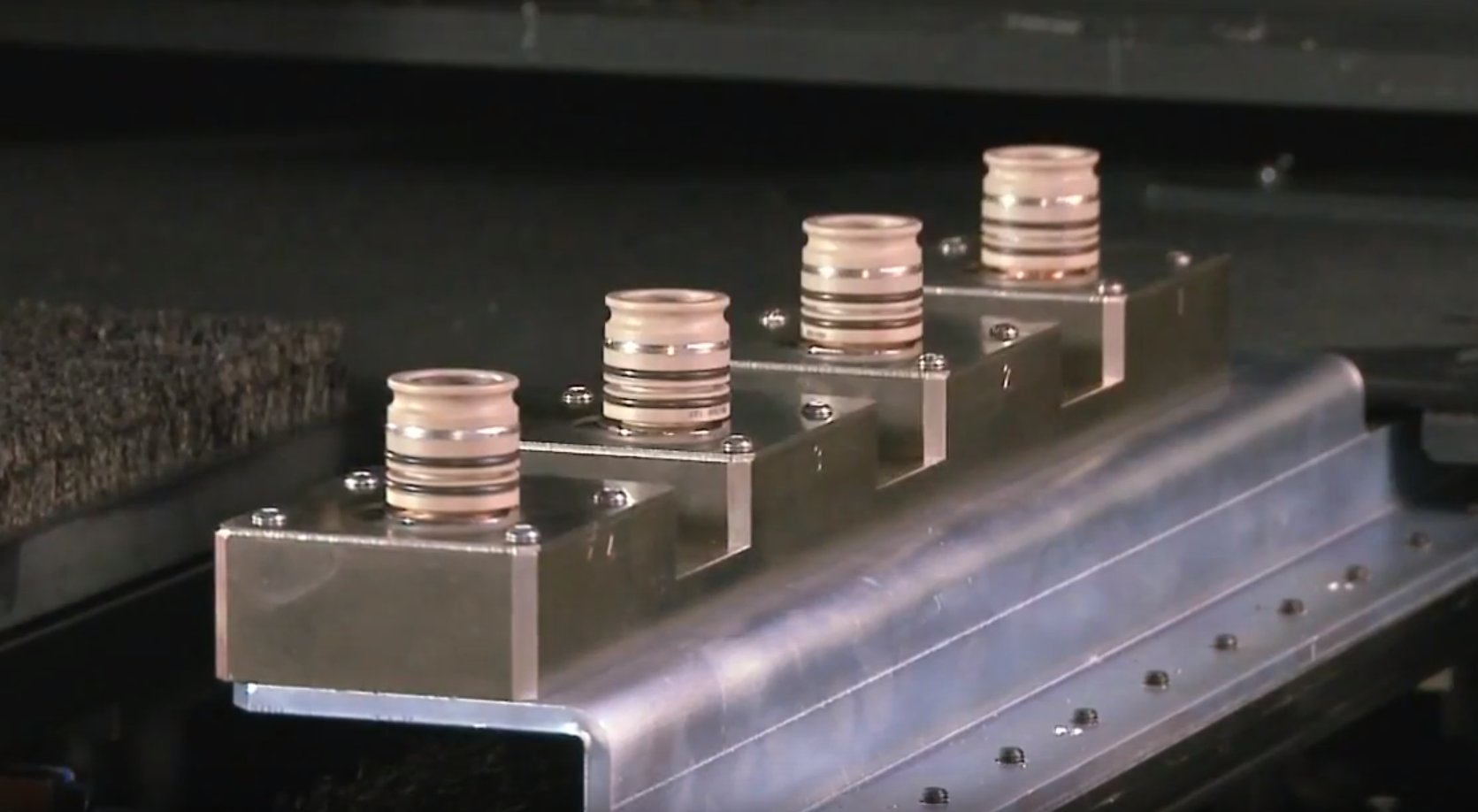

AUTOMATIC NOZZLE CHANGER

To ensure uptime is maximized, the EML-AJe is equipped with an automatic nozzle changer for fast changeover times.

V-MONITOR

Utilising AMADA's class leading IoT support services, V-monitor captures HD video of production issues for rapid solutions. The manufacturing status of multiple machines can also be confirmed remotely.

FULLY ELECTRIC PUNCHING

The EML-AJe uses twin AC servo motors to generate 30 tons of punching force, allowing a wide range of punched and formed parts to be processed. This system uses up to 70% less electricity compared to hydraulic systems.

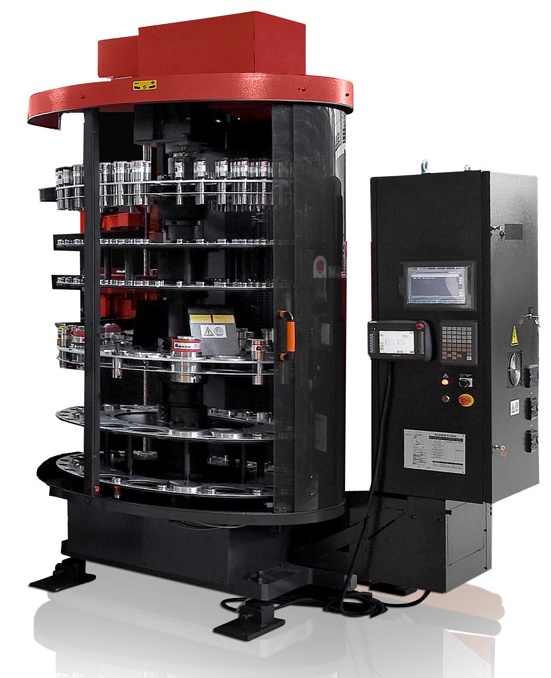

AUTOMATED TOOL CHANGING (option)

The EML-AJPe version includes the PDC (Punch Die Changer) unit to minimise manual tool loading operations. Up to 220 punches and 440 dies can be stored in the system with all tool sizes and shapes able to be automatically loaded / unloaded.

AMNC 4ie

Operator tutorial videos, facial recognition and ease-of-use are all standard features of AMADA's AMNC 4ie control system, allowing operators of all skill levels to get the best from the EML-AJe.

Tačke od interesa

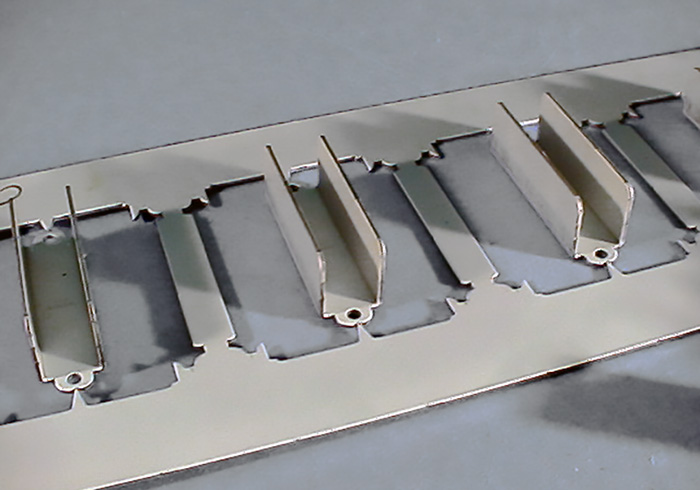

PUNCH & FORM (P&F) SYSTEM To compliment the already high capabilities of the EML-AJe machine, the P&F system is also included as standard. This consists of a 16 ton forming system which activates the die to allow the processing of forms up to 22mm high.

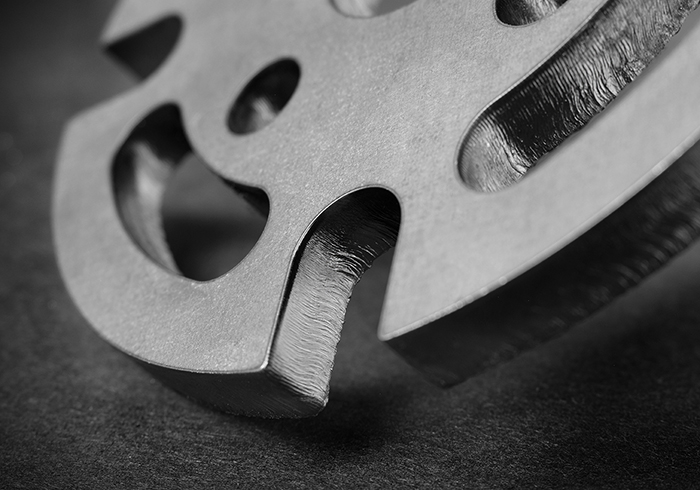

COMPRESSED AIR CUTTING A wide range of materials and thicknesses can be processed with compressed air on the EML-AJe as standard. This drastically reduces the assist gas costs and leads to higher profitability. Cutting speeds are generally the same as with nitrogen.

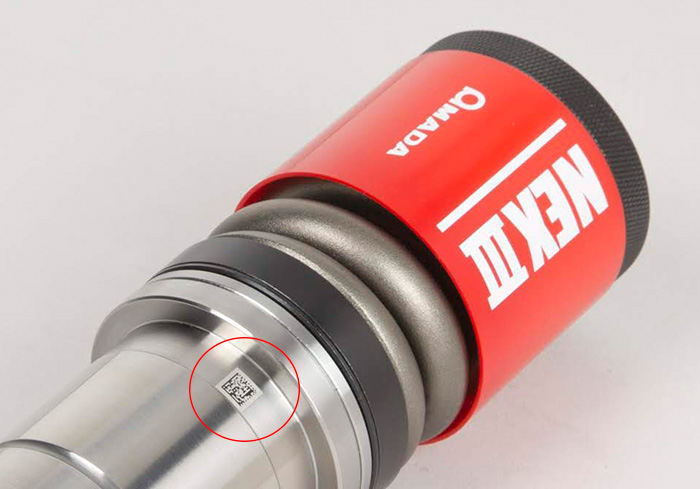

ID TOOLING Punches and dies are immediately identified and tracked for number of hits, sharpening amount, and remaining life, helping to minimize set up mistakes. The tool angle and appropriate die selection are also confirmed upon installation.

	EML-2515AJe	EMLZ-2515AJPe
Snaga prese (kN)	300
Jačina lasera (W)	3000
Ram mašine	Ram mosta
Preciznost izbijanja (mm)	± 0.1
Broj stanica	44

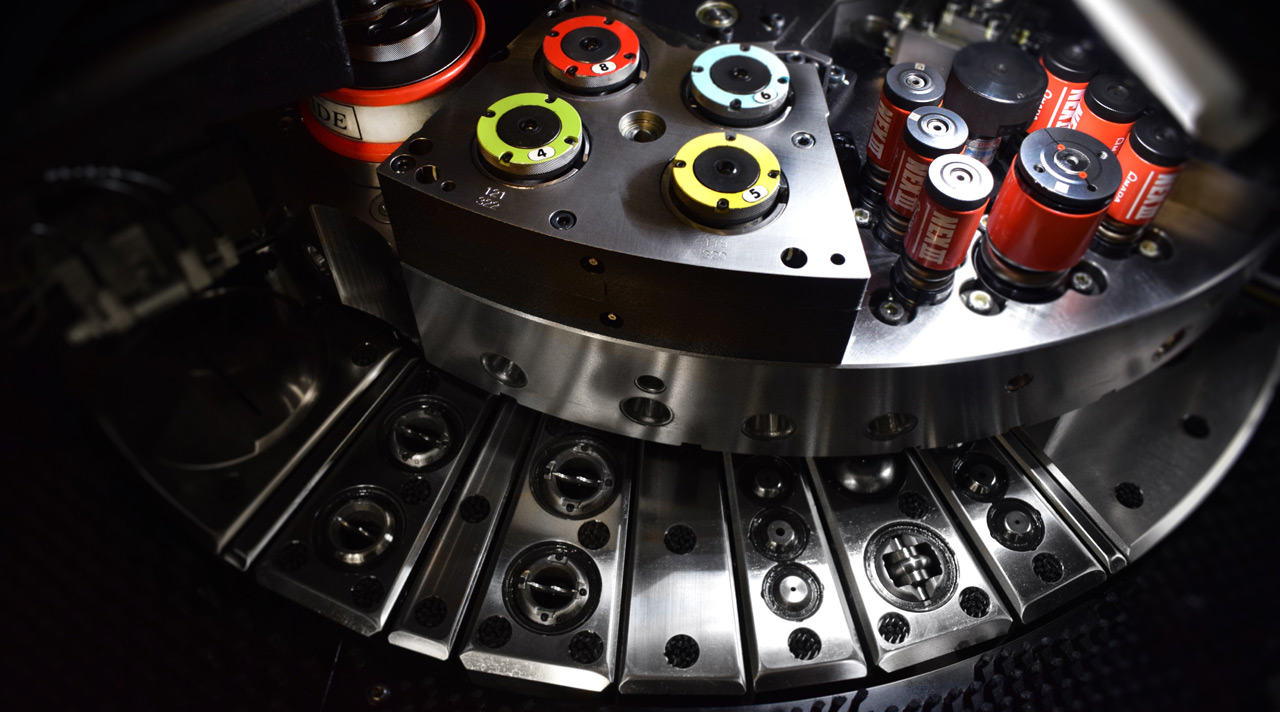

Vrsta tureta	Z-Turret
Nosivost stola (kg)	220
Pogon stola	AC Servo pogon
Simultana brzina ose:
Izbijanje X/Y (m/min)	128
Laser X/Y (m/min)	141
Dimenzije:
Dužina (mm)	5689	6808
Širina (mm)	6927	6927
Visina (mm)	2525	3010
Težina (kg)	24000	27500

PDC (Automatski izmenjivač alata)

Tehnički podaci mogu varirati zavisno od podešavanja / opcija
Molimo vas da nas kontaktirate za dodatne detalje ili da svučete našu brošuru

For your safe use
Be sure to read the user manual carefully before use.
When using this product, appropriate personal protection equipment must be used.

Laser class 1 when operated in accordance to EN 60825-1
