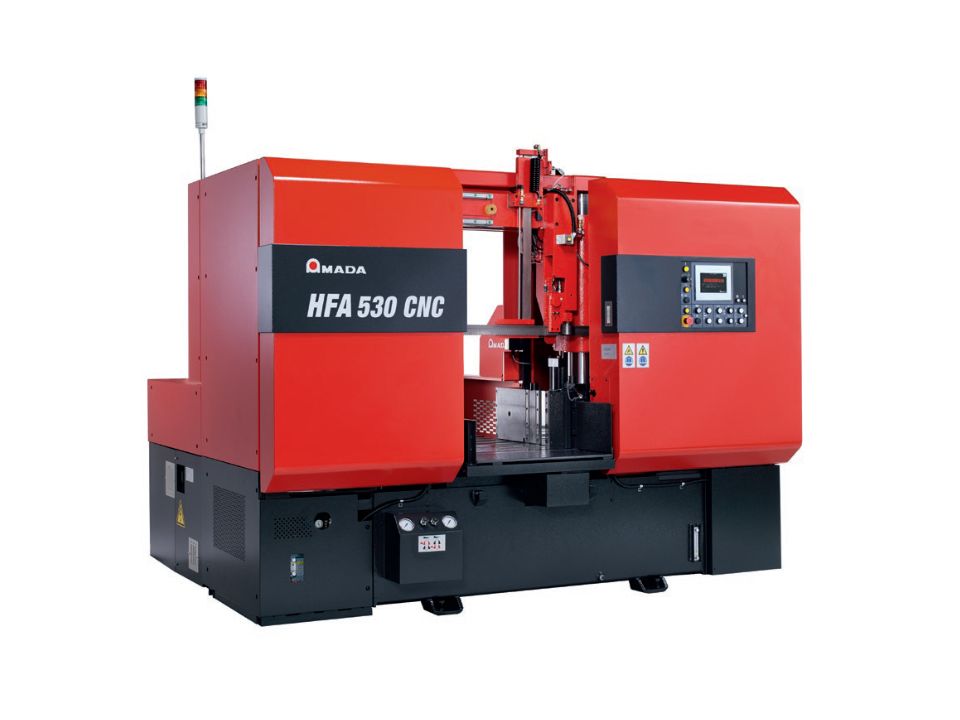

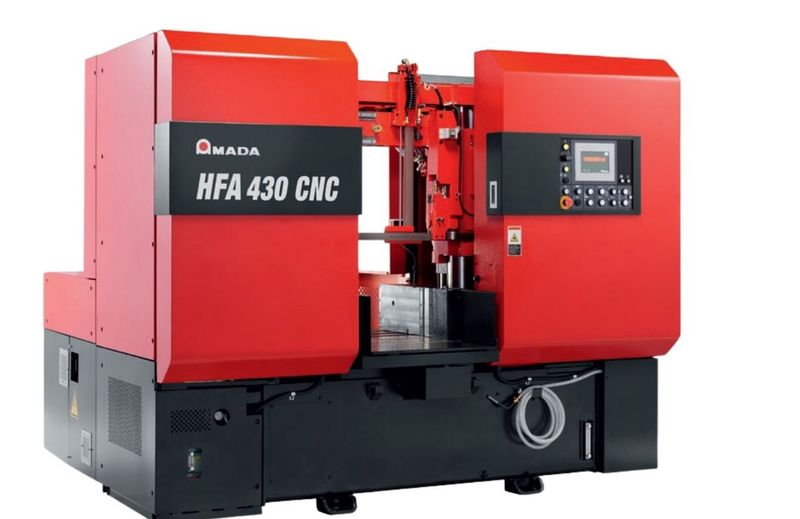

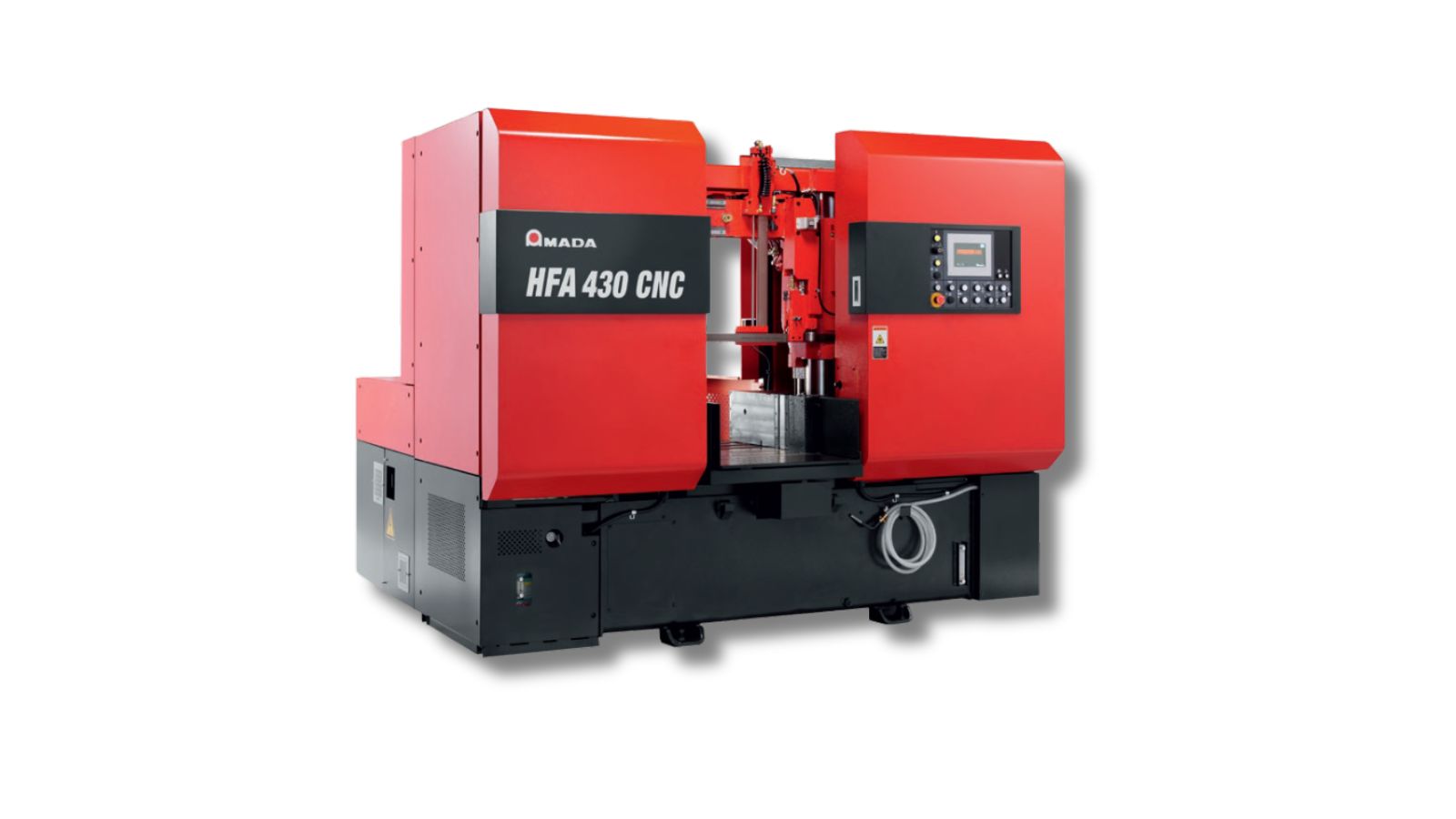

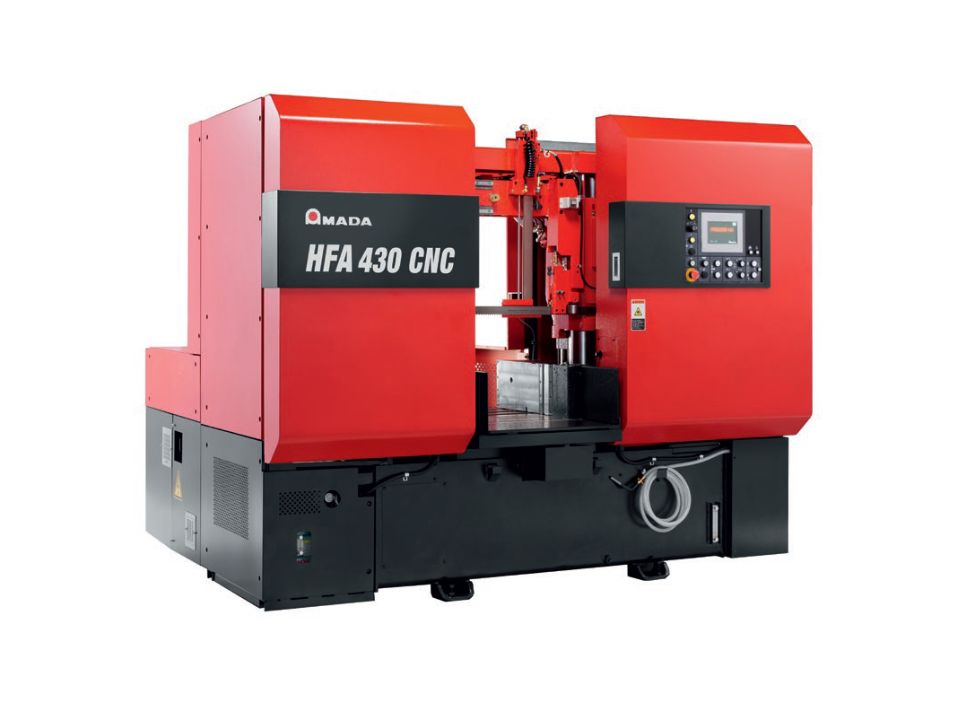

AMADA HFA 430 CNC and HFA 530 CNC automatic bandsaws are designed in response to market demand for a robust, efficient and versatile machine capable of delivering excellent cutting performance.
This series is fully compatible with both carbide and AMADA bimetal blades. Regardless of the blade selection, the machine consistently delivers outstanding cutting results.
The CNC control, designed to be particularly intuitive, can be customised with customer-specific materials, further enhancing operational flexibility.
700 MM MATERIAL FEED STROKE
The standard 700 mm feed stroke per cycle enables the cutting of long workpieces with reduced cycle times, increasing efficiency in automatic operations.
FLEXIBLE FRONT VICE
Designed to facilitate the cutting of bent or non-perfectly straight bars, the flexible front vice provides adaptive clamping that improves accuracy and reduces the risk of length errors.
LCD TOUCH SCREEN
An intuitive interface with an integrated material database allows fast setup of cutting parameters and automatic programs, simplifying the operator’s work.
700 MM MATERIAL FEED STROKE
The standard 700 mm feed stroke per cycle enables the cutting of long workpieces with reduced cycle times, increasing efficiency in automatic operations.
FLEXIBLE FRONT VICE
Designed to facilitate the cutting of bent or non-perfectly straight bars, the flexible front vice provides adaptive clamping that improves accuracy and reduces the risk of length errors.
LCD TOUCH SCREEN
An intuitive interface with an integrated material database allows fast setup of cutting parameters and automatic programs, simplifying the operator’s work.
| HFA 430 CNC | HFA 530 CNC | |||
| Cutting capacity | Round material | mm | φ 30 ~ φ 430 | φ 30 ~ φ 530 |
| Square material | mm | ☐ 30 ~ ☐ 430 | ☐ 30 ~ ☐ 530 | |
| Bundle cutting capacity | Yes | |||
| Min. bundle cutting capacity | mm | 45 x 180 | 60 x 200 | |
| Max. bundle cutting capacity | mm | 200 x 300 | 215 x 350 | |
| Minimum cutting length manual mode | mm | 10 | 10 | |
| Minimum cutting length automatic mode | mm | 10 | 10 | |
| Blade drive motor | kW | 5.5 | 7.5 | |
| Installed power | kVA | 13 | 15 | |
| Blade size | (W x T x L) | mm | 41 x 1.3 x 5300 | 54 x 1.6 x 5920 |
| Blade speed | m/min | 15 ~ 120 | 15 ~ 120 | |
| Feed carriage stroke | Single repeatable stroke | mm | 700 | 700 |
| Control unit | CNC | CNC | ||
| Maximum load capacity | kg | 3000 | 4600 | |
| Table height | mm | 700 | 700 | |
| Machine dimensions | mm | 2520 x 2180 x 2020 | 2800 x 2180 x 2020 | |
| Machine weight | kg | 3500 | 4500 |
Subject to technical modifications / Illustrations partially with special accessories
