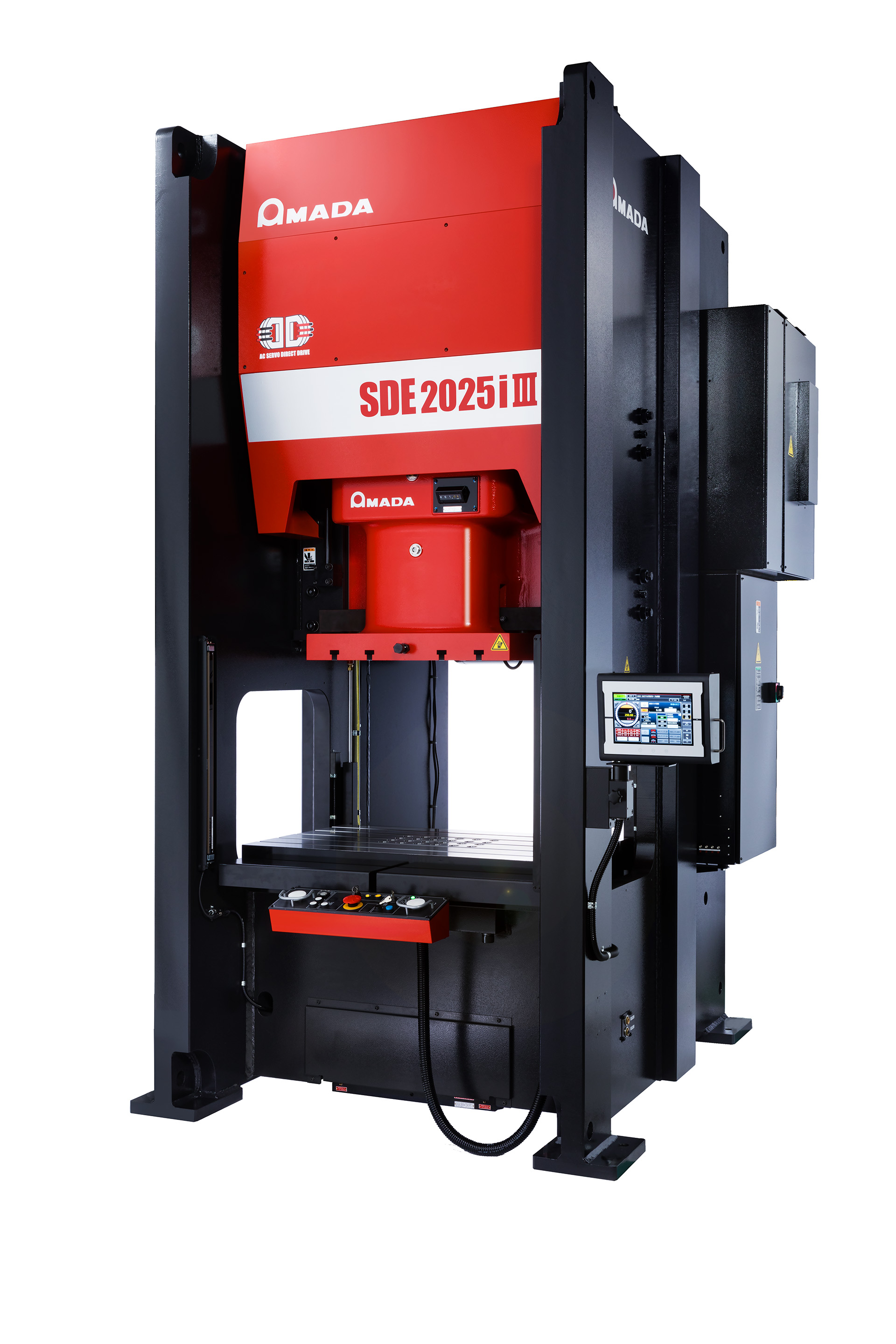

Digital AC servo press machines are the latest environmentally conscious products due to reduction of power consumption, lubricating oil consumption and stamping noise. The SDE i3 / SDEW i3 stamping presses allow high accuracy processing thanks to the setting of the motions. For example, the SDE i3 / SDEW i3 can produce a perfectly sheared edge on inside and outside diameters, form small-diameter cylindrical parts without cracking, prevent wrinkling, and also prevent surface scratching.

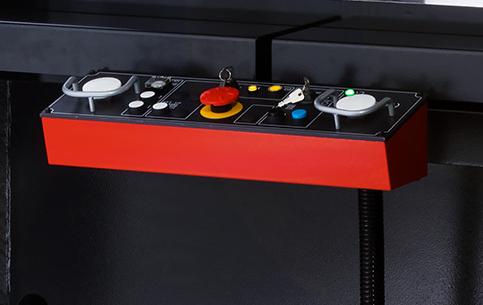

OPERATION CONTROL PANEL:
The layout has been redesigned, improving operability.
SOFTWARE FOR STAMPING PRESS MACHINES:
Visualization of press operating conditions and maintenance information with touch screen PC.
SWIVEL PENDANT CONTROL PANEL:
The pendant control panel, with a 12.1" wide screen, can be rotated to improve visibility and operability.
Each i3 control is equipped with the enhanced load/torque monitoring system, which is more advanced than your normal tonnage monitor.
OPERATION CONTROL PANEL:
The layout has been redesigned, improving operability.
SOFTWARE FOR STAMPING PRESS MACHINES:
Visualization of press operating conditions and maintenance information with touch screen PC.
SWIVEL PENDANT CONTROL PANEL:
The pendant control panel, with a 12.1" wide screen, can be rotated to improve visibility and operability.
Each i3 control is equipped with the enhanced load/torque monitoring system, which is more advanced than your normal tonnage monitor.
| SINGLE CRANK MODELS | SDE8018î3 | SDE1120i3 | SDE1515i3 | SDE1522i3 |
|---|---|---|---|---|
| Frame type | SF | SF | SF (GORIKI)* | SF |
| Capacity (kN) | 800 | 1100 | 1500 | 1500 |
| Stroke length (mm) | 180 | 200 | 150 | 225 |
| Strokes/min (mm) | ~80 | ~70 | ~95 | ~60 |
| Die height (mm) | 350 | 390 | 380 | 430 |
| Slide adjustment (mm) | 80 | 100 | 100 | 100 |
| Slide area (mm) left right x front-back | 550 x 450 | 600 x 500 | 950 x 580 | 700 x 550 |
| Bolster area (mm) left right x front-back | 940 x 620 | 1030 x 700 | 1290 x 750 | 1160 x 750 |
| Bolster thickness (mm) | 135 | 150 | 160 | 160 |
| Working height (mm) | 850 | 850 | 900 | 900 |
| Side opening (mm) | 500 | 620 | 580 | 680 |
| Max. upper die weight (kg) | 240 | 300 | 1260 | 600 |
| Servo motor (c. rated output) (kW) | 25 | 30 | 35 | 35 |
| Machine height (mm) | 2915 | 3075 | 3290 | 3435 |
| Machine mass (ton) | 9.5 | 13 | 18 | 19.6 |
* SF (GORIKI) is for progressive processing
| SINGLE CRANK MODELS | SDE2017i3 | SDE2025i3 | SDE3020i3 | SDE3030i3 |
|---|---|---|---|---|
| Frame type | SF (GORIKI)* | SF | SF (GORIKI)* | SF |
| Capacity (kN) | 2000 | 2000 | 3000 | 3000 |
| Stroke length (mm) | 175 | 250 | 200 | 300 |
| Strokes/min (mm) | ~75 | ~55 | ~60 | ~40 |
| Die height (mm) | 415 | 460 | 460 | 550 |
| Slide adjustment (mm) | 110 | 110 | 110 | 110 |
| Slide area (mm) left right x front-back | 1050 x 650 | 850 x 630 | 1350 x 750 | 1100 x 750 |
| Bolster area (mm) left right x front-back | 1420 x 850 | 1290 x 850 | 1740 x 900 | 1380 x 900 |
| Bolster thickness (mm) | 180 | 180 | 200 | 200 |
| Working height (mm) | 1000 | 1000 | 1055 | 1055 |
| Side opening (mm) | 650 | 770 | 790 | 770 |
| Max. upper die weight (kg) | 1030 | 1020 | 1350 | 990 |
| Servo motor (c. rated output) (kW) | 40 | 40 | 50 | 50 |
| Machine height (mm) | 3670 | 3875 | 4420 | 4515 |
| Machine mass (ton) | 25 | 25.4 | 42 | 38.4 |
* SF (GORIKI) is for progressive processing
| DOUBLE CRANK MODELS | SDEW2025i3 | SDEW3025i3 |
|---|---|---|
| Frame type | SF | SF |
| Capacity (kN) | 2000 | 3000 |
| Stroke length (mm) | 250 | 250 |
| Strokes/min (mm) | ~50 | ~45 |
| Die height (mm) | 500 | 550 |
| Slide adjustment (mm) | 110 | 120 |
| Slide area (mm) left right x front-back | 1750 x 650 | 2000 x 700 |
| Bolster area (mm) left right x front-back | 2150 x 850 | 2400 x 950 |
| Bolster thickness (mm) | 180 | 200 |
| Working height (mm) | 1000 | 1100 |
| Side opening (mm) | 720 | 720 |
| Max. upper die weight (kg) | 1320 | 1465 |
| Servo motor (c. rated output) (kW) | 40 | 50 |
| Machine height (mm) | 3775 | 4215 |
| Machine mass (ton) | 33 | 45 |
Technical data can vary depending on configuration / options
Please contact us for more details and options or download our brochure
