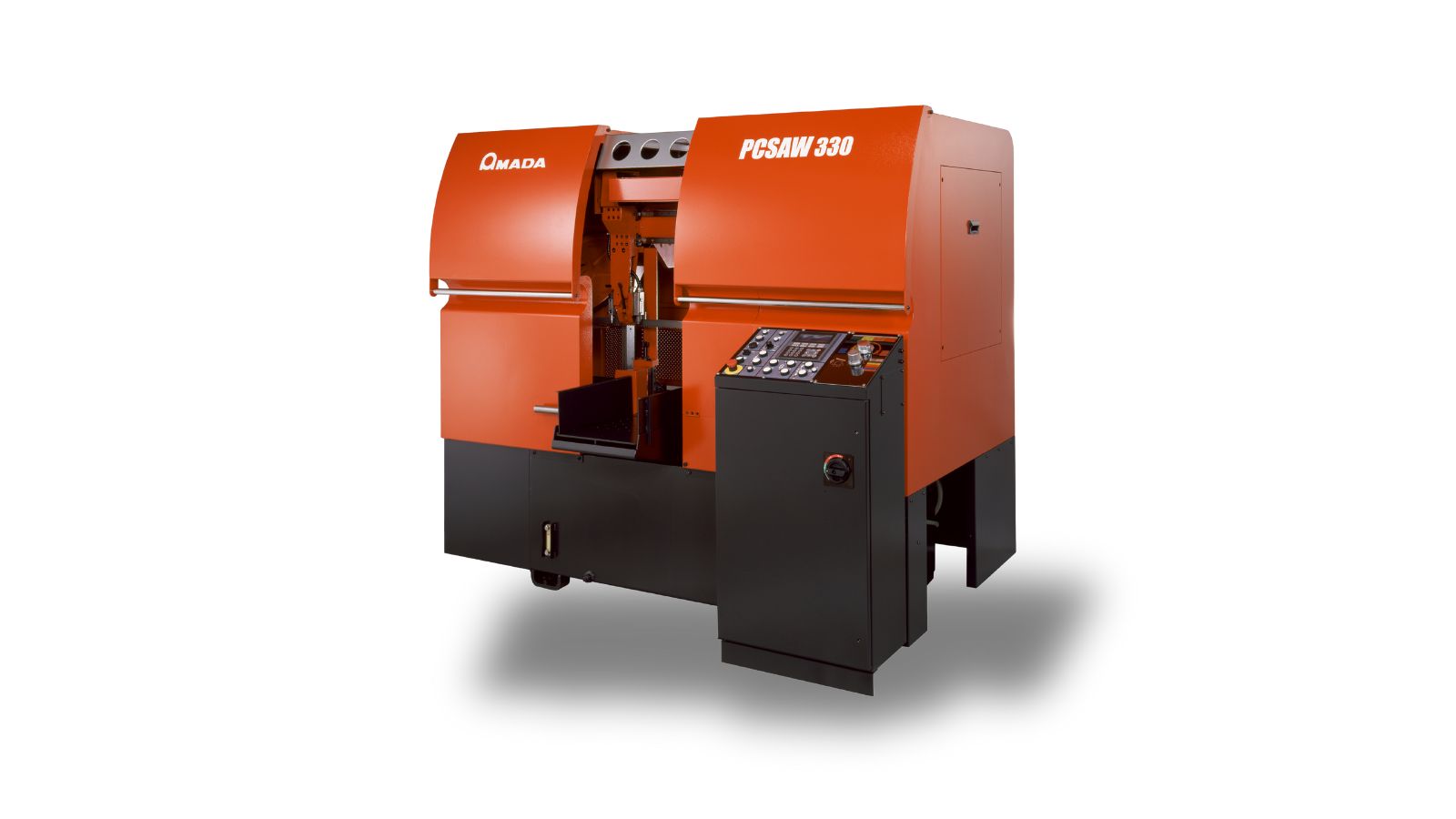

PCSAW 330

FULLY AUTOMATIC WITH PULSE CUTTING TECHNOLOGY

/
Back to list
  1. Products
  2. Cutting, Milling & Grinding
  3. Bandsaw Machines
  4. Pulse Cutting Technology​
  5. PCSAW 330

Designed to meet the highest demands for performance and cutting quality

The PCSAW 330 is a fully automatic bandsaw designed to combine Pulse Cutting technology with an extremely solid bridge-type frame, ensuring stable cutting performance even on demanding materials.
The 0.9 mm SMARTCUT blade, developed specifically for this model, reduces kerf by 25% and increases material yield. The pulsating blade motion lowers cutting resistance, enhancing cutting capability and extending blade life.
Compact, efficient and suitable for series production, the PCSAW 330 offers an ideal balance of performance, operating economy and ease of use.

PULSE CUTTING TECHNOLOGY

The controlled mechanical pulses applied to the blade generate an oscillating motion that induces intermittent tooth contact with the material, decreasing chip formation and reducing both penetration force and overall cutting resistance. This dynamic enables cutting speeds that are significantly higher than those achieved with conventional continuous-cut systems.

EXTENDED BLADE LIFE

The pulsating blade motion lowers mechanical load and thermal stress on each tooth, resulting in significantly reduced wear and longer blade life than conventional cutting methods.

OPTIMIZED FOR SERIES PRODUCTION

The PCSAW 330 is ideal for high-volume, repetitive cutting where consistency and productivity are essential.

REDUCED ENERGY CONSUMPTION

The lower cutting resistance generated by Pulse Cutting technology allows the PCSAW 330 to operate with a 3.7 kW blade motor, keeping energy usage low while maintaining cutting performance.

Hotspots

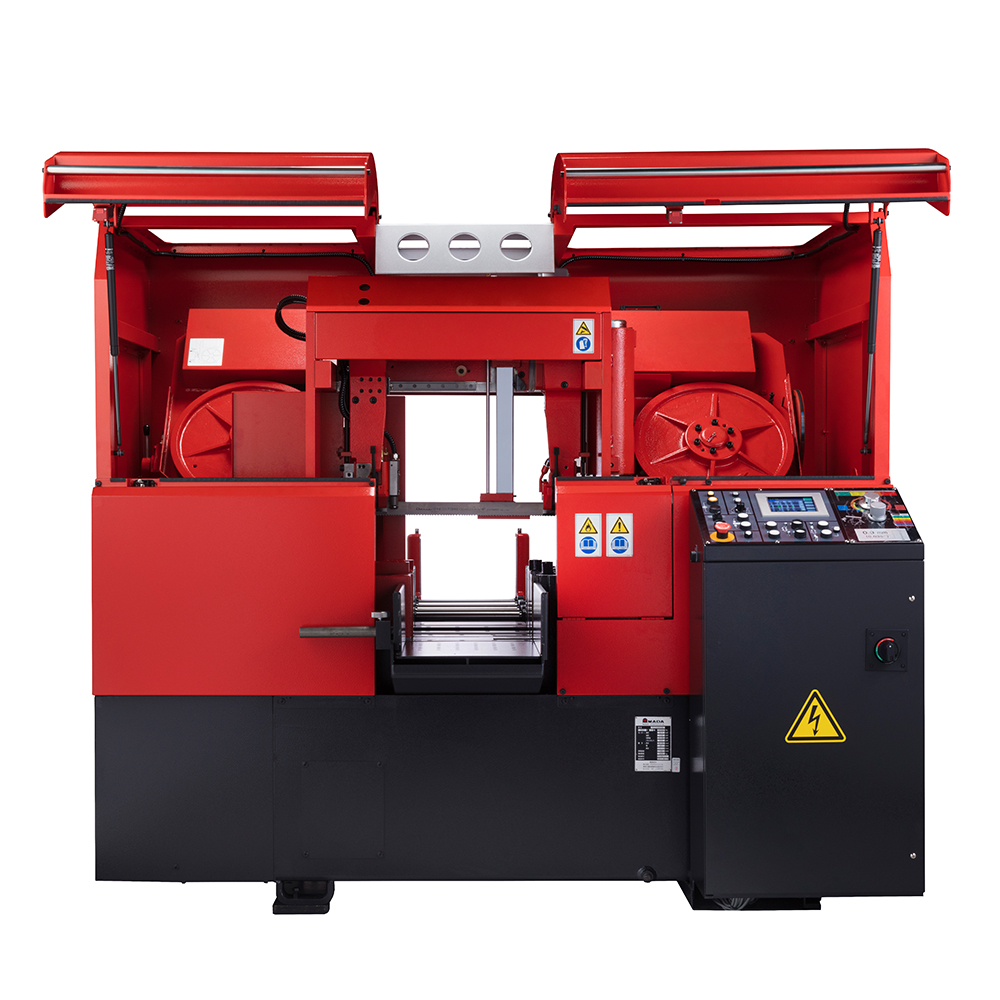

POST-TYPE RIGID COLUMN STRUCTURE The vertical column design increases machine rigidity, reducing vibration and stabilizing the cutting path.

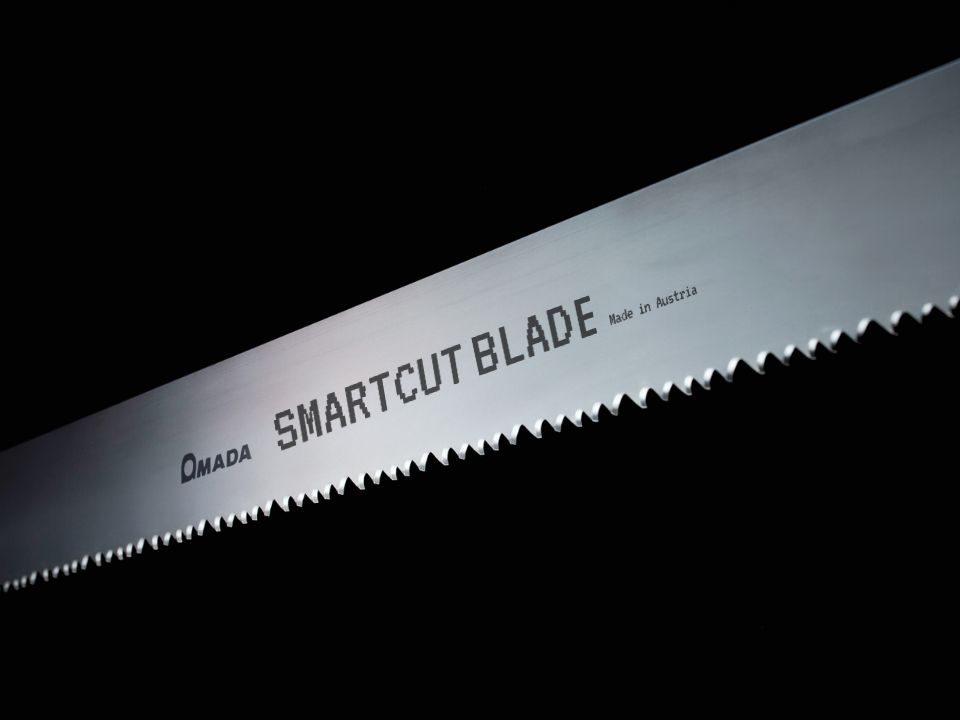

SMARTCUT BLADE The dedicated 41 × 0.9 mm SMARTCUT blade reduces kerf by approximately 25%, improving material yield, especially beneficial when cutting costly alloys.

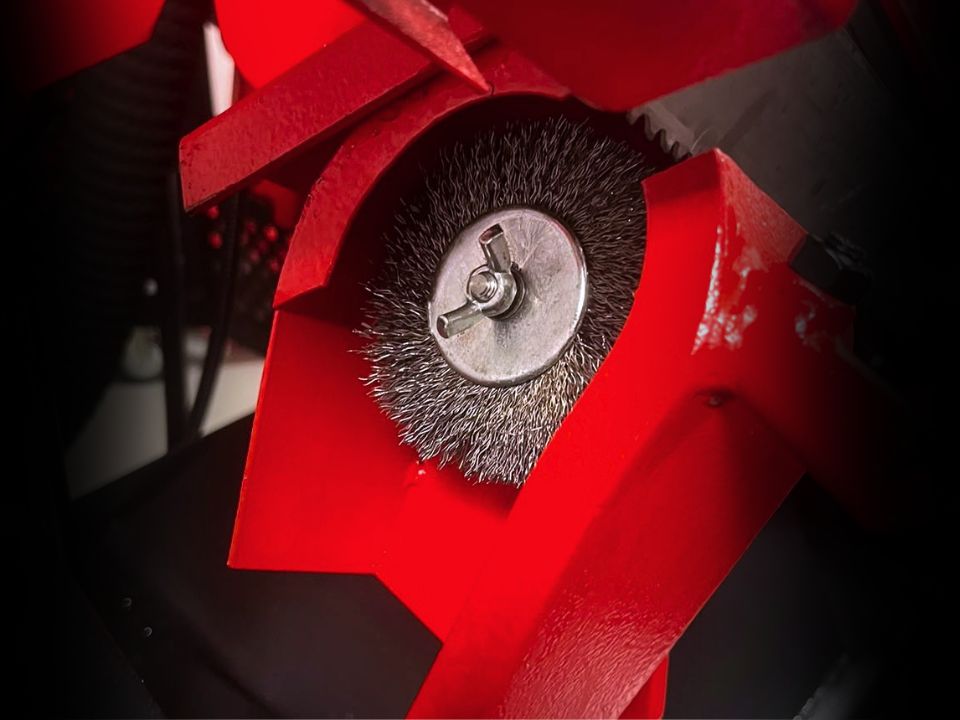

MOTORIZED BLADE CLEANING BRUSH The motorized brush with manual adjustment efficiently removes chips from the blade, ensuring higher cutting quality and increased blade service life.
POST-TYPE RIGID COLUMN STRUCTURE The vertical column design increases machine rigidity, reducing vibration and stabilizing the cutting path.
SMARTCUT BLADE The dedicated 41 × 0.9 mm SMARTCUT blade reduces kerf by approximately 25%, improving material yield, especially beneficial when cutting costly alloys.
MOTORIZED BLADE CLEANING BRUSH The motorized brush with manual adjustment efficiently removes chips from the blade, ensuring higher cutting quality and increased blade service life.

Technical Data

      PCSAW 330
Cutting capacity Round material mm φ 30 ~ φ 330
  Square material mm ☐ 30 ~ ☐ 330
Bundle cutting capacity Yes
  Min. bundle cutting capacity mm 25 x 160
  Max. bundle cutting capacity mm 150 x 250
Minimum cutting length manual mode   mm 5
Minimum cutting length automatic mode   mm 10
Blade drive motor   kW 3.7
Installed power   kVA 13
Blade size (W x T x L) mm 41 x 0.9 x 4115
Blade speed   m/min 15 ~ 120
Feed carriage stroke Single repeatable stroke mm 500
Control unit PLC
Maximum load capacity   kg 2000
Table height   mm 700
Machine dimensions (W x L x H) mm 2175 x 2526 x 1882
Machine weight   kg 1800

Subject to technical modifications / Illustrations partially with special accessories
