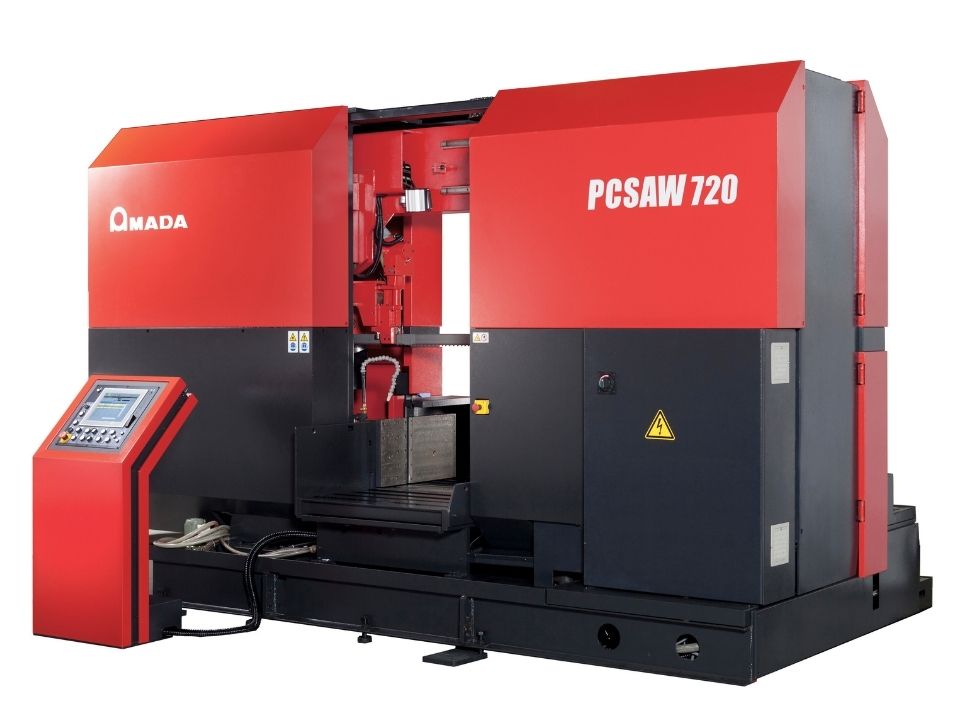

AMADA EU: PCSAW 720 Large Capacity Pulse Cutting Band Saw

Engineered to overcome every cutting challenge

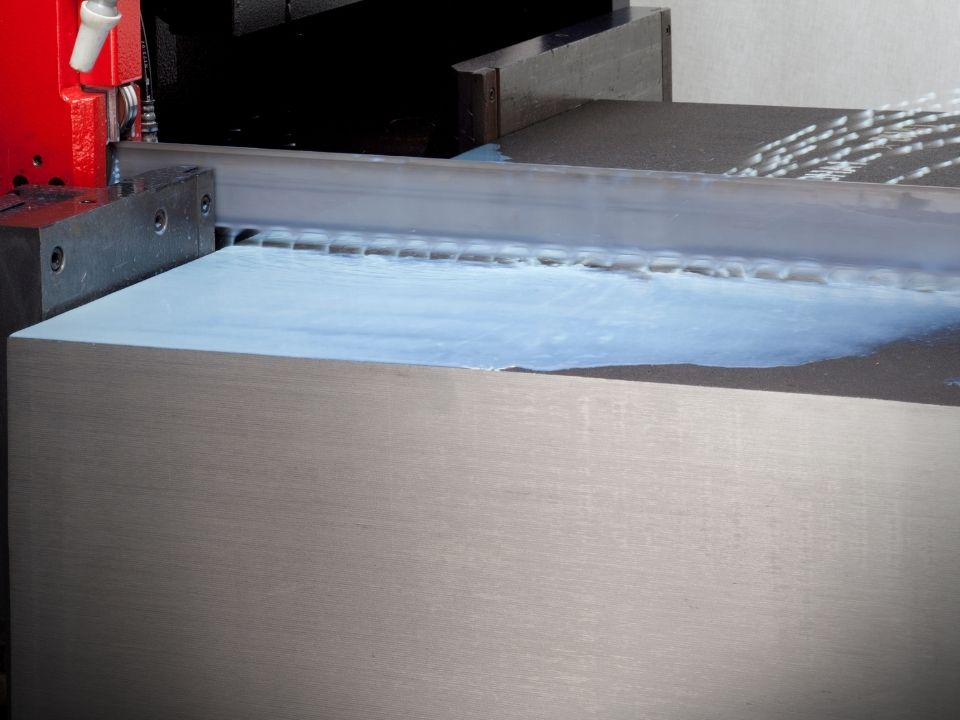

The PCSAW 720 is designed for large-format cutting with a stable, smooth, and remarkably quiet process. The silent-pulse unit and anti-vibration roller keep the blade steady throughout the cut, significantly reducing noise and improving operator comfort.

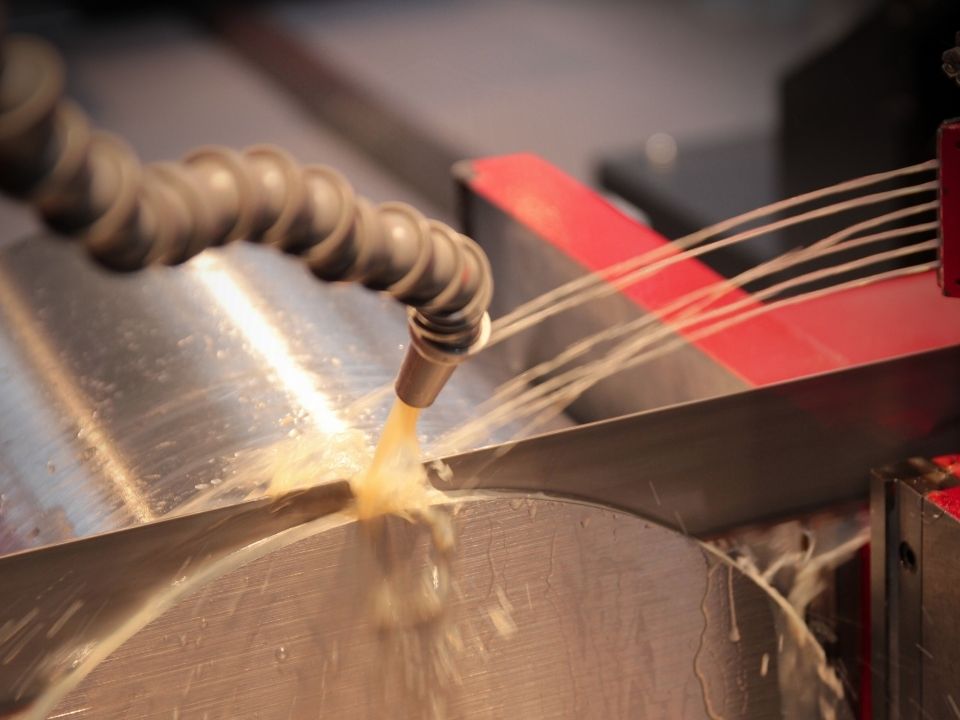

Alongside this stability, the machine delivers excellent cutting performance even on difficult materials such as Inconel ®, titanium alloys and Hastelloy , which benefit from the precision and consistency of Pulse Cutting technology.

PULSE CUTTING TECHNOLOGY

The controlled mechanical pulses applied to the blade generate an oscillating motion that induces intermittent tooth contact with the material, decreasing chip formation and reducing both penetration force and overall cutting resistance. This dynamic enables cutting speeds that are significantly higher than those achieved with conventional continuous-cut systems.

UNMATCHED CUTTING POWER

The 11 kW blade motor, combined with Pulse Cutting technology, ensures stable penetration even on extremely tough materials such as Inconel, Hastelloy, and titanium.

QUIET AND VIBRATION-CONTROLLED OPERATION

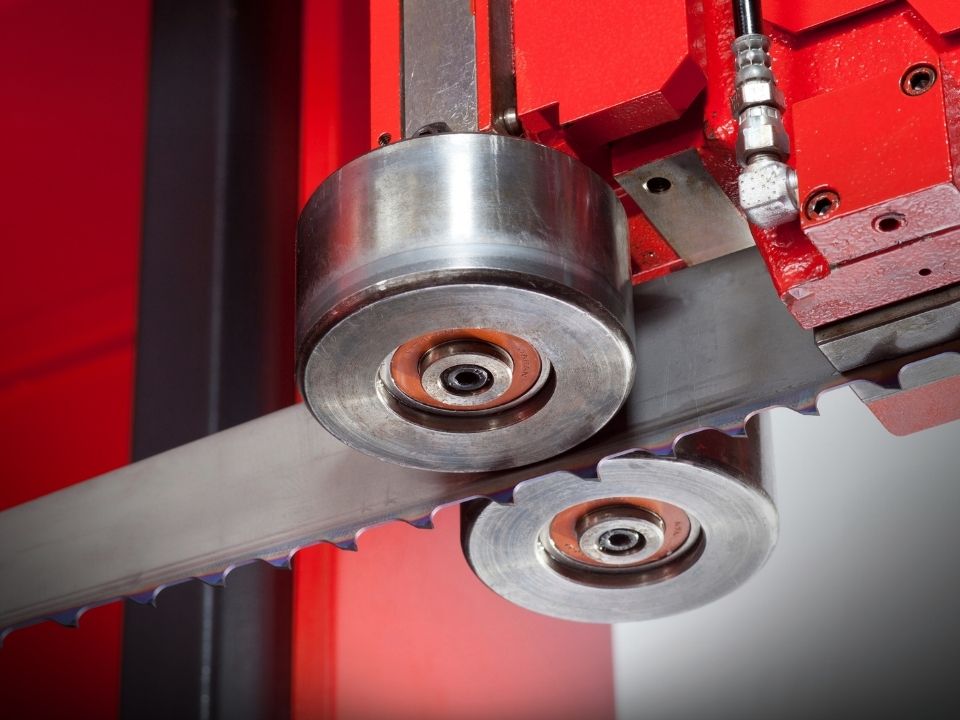

The silent-pulse unit and anti-vibration roll dramatically reduce noise and blade oscillation, delivering smoother and more comfortable cutting conditions.

HIGH-EFFICIENCY CHIP EVACUATION

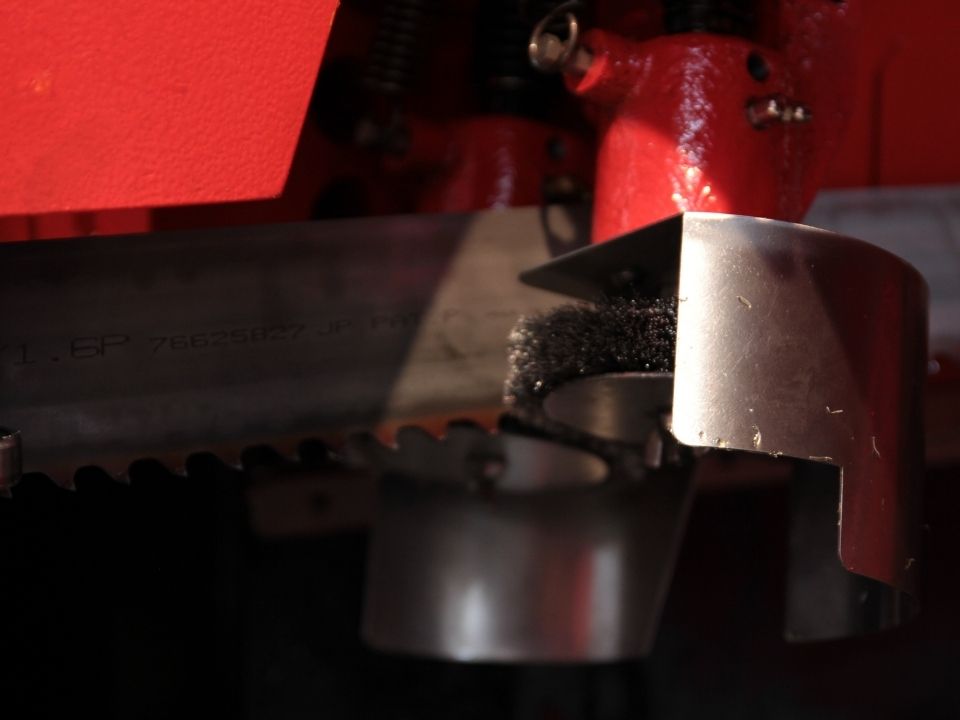

The 15° inclined conveyor and dual 3D blade brushes ensure constant chip removal, preventing accumulation and maintaining uninterrupted productivity.

ROBUST BUILD FOR OVERSIZED WORKPIECES

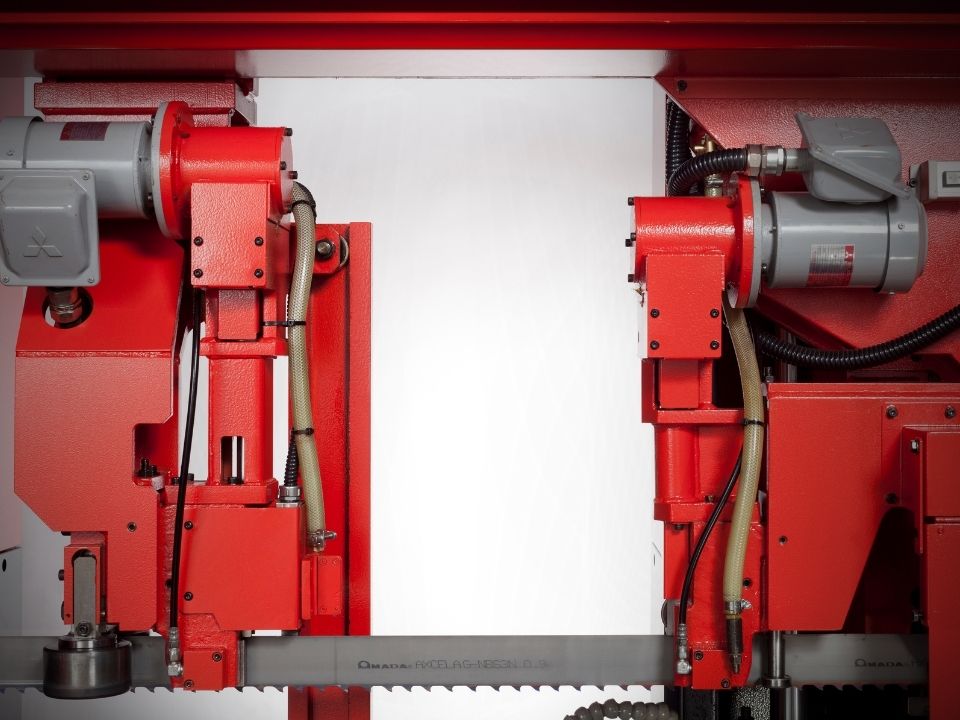

The heavy-duty frame and reinforced guides guarantee stability and accuracy when cutting sections up to 720 mm.

CNC CONTROL OPTIMIZED FOR SPECIAL MATERIALS

Preset cutting parameters for special steels and high-performance alloys ensure repeatable results and reliable process control in continuous production.

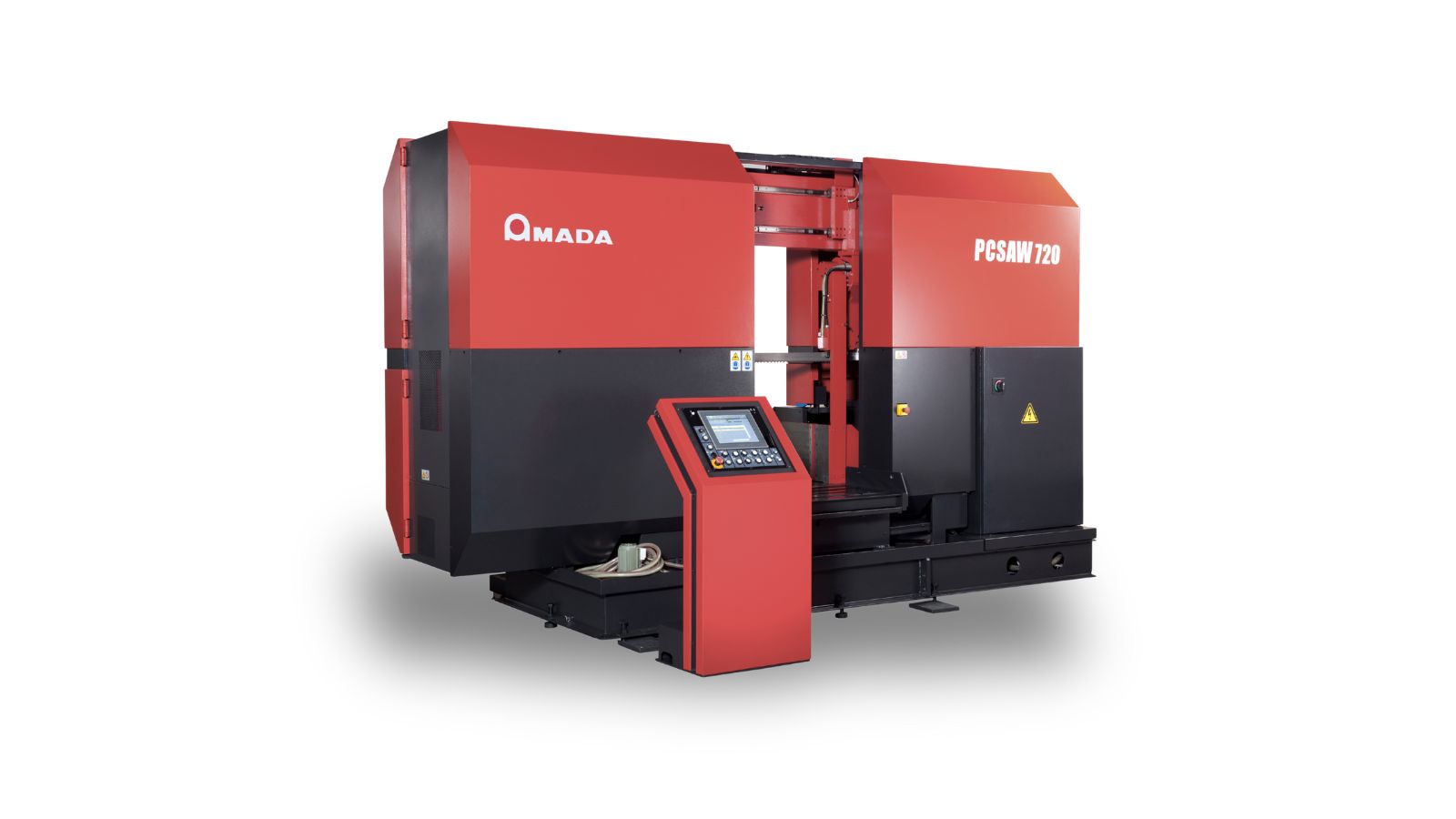

Hotspots

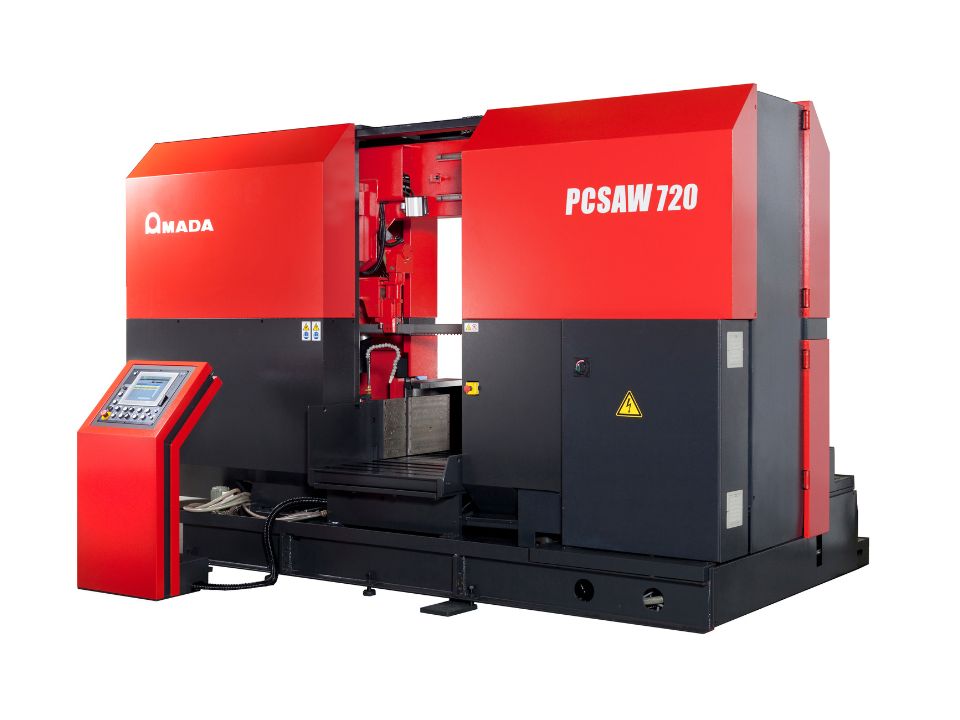

MOBILE CONTROL CONSOLE The control console can be positioned to suit operational requirements and used independently of the machine body, providing greater flexibility and ease of operation during cutting processes.

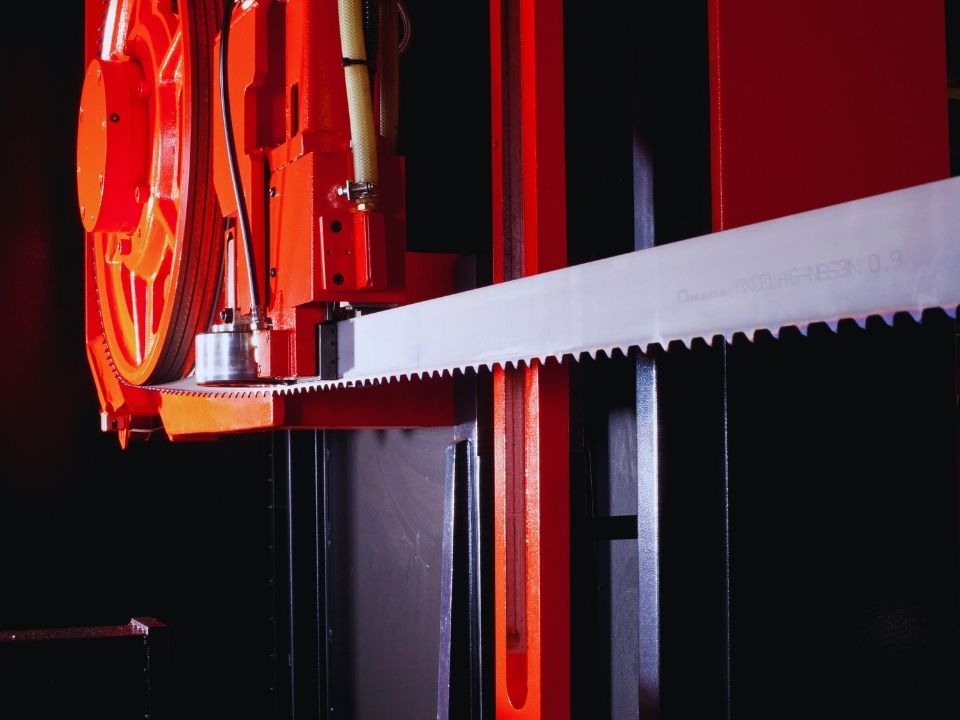

LASER APPROACH SYSTEM The integrated laser assists in quick and accurate workpiece alignment, reducing setup time and improving positioning precision for large-diameter materials.

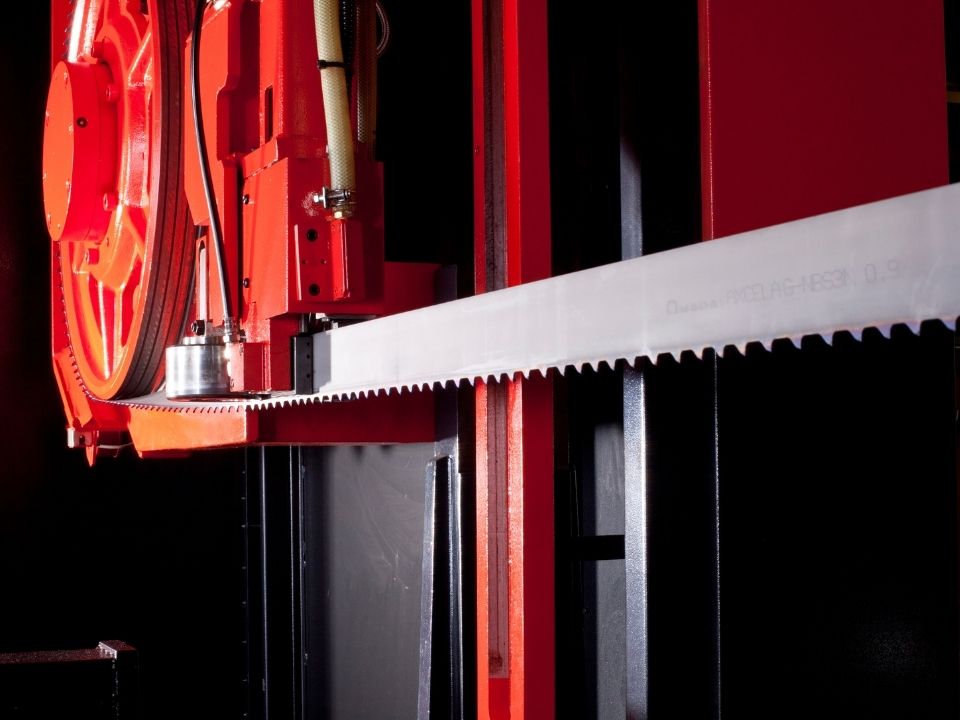

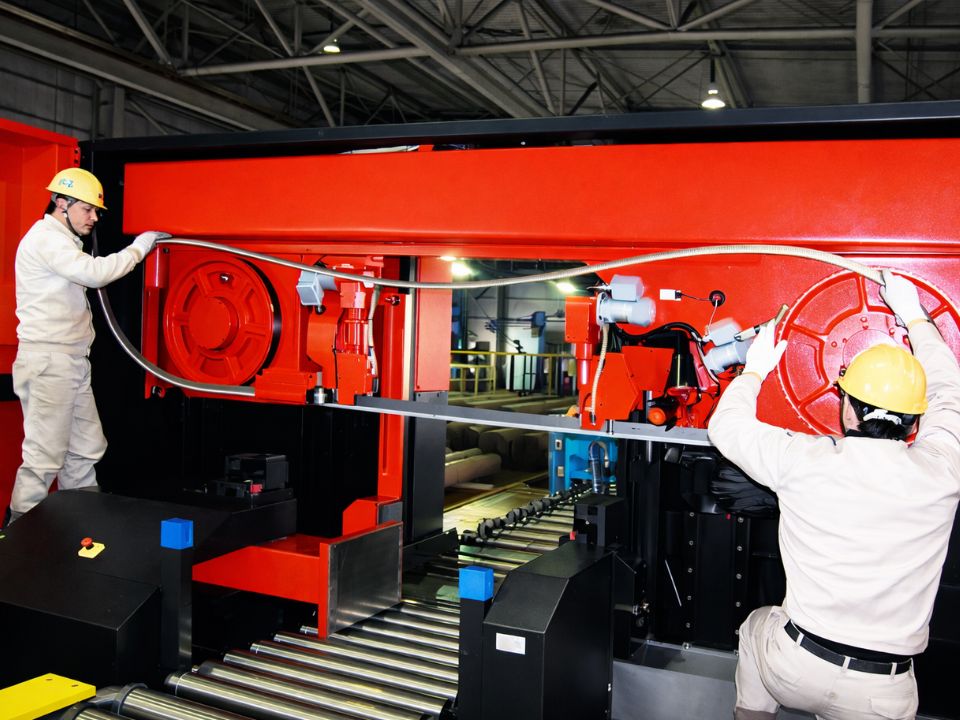

ADJUSTABLE BLADE SUPPORT The adjustable support facilitates blade installation, simplifying operations and reducing operator effort.

LASER APPROACH SYSTEM The integrated laser assists in quick and accurate workpiece alignment, reducing setup time and improving positioning precision for large-diameter materials.

ADJUSTABLE BLADE SUPPORT The adjustable support facilitates blade installation, simplifying operations and reducing operator effort.

			PCSAW 720
Cutting capacity	Round material	mm	φ 290 ~ φ 720
	Min. square material	mm	☐ 20 ~ ☐ 715
	Max. square material	mm	☐ 290 ~ ☐ 815
Bundle cutting capacity	Yes
	Max. bundle cutting capacity	mm	320 x 400
Minimum cutting length manual mode		mm	10
Minimum cutting length automatic mode		mm	20
Blade drive motor		kW	11
Installed power		kVA	25
Blade size	(W x T x L)	mm	67 × 1.6 × 8300
Blade speed		m/min	15 ~ 110
Feed carriage stroke	Single repeatable stroke	mm	500
Control unit	CNC
Maximum load capacity		kg	8000
Table height		mm	700
Machine dimensions	(W x L x H)	mm	4387 × 2181 × 2812
Machine weight		kg	8000

Subject to technical modifications / Illustrations partially with special accessories
