TECHSTER 64

POWER AND PRECISION FOR HIGH-LEVEL GRINDING PERFORMANCE

/
Back to list
  1. Products
  2. Cutting, Milling & Grinding
  3. Grinding Machines
  4. Surface and Profile Grinding Machines
  5. TECHSTER 64

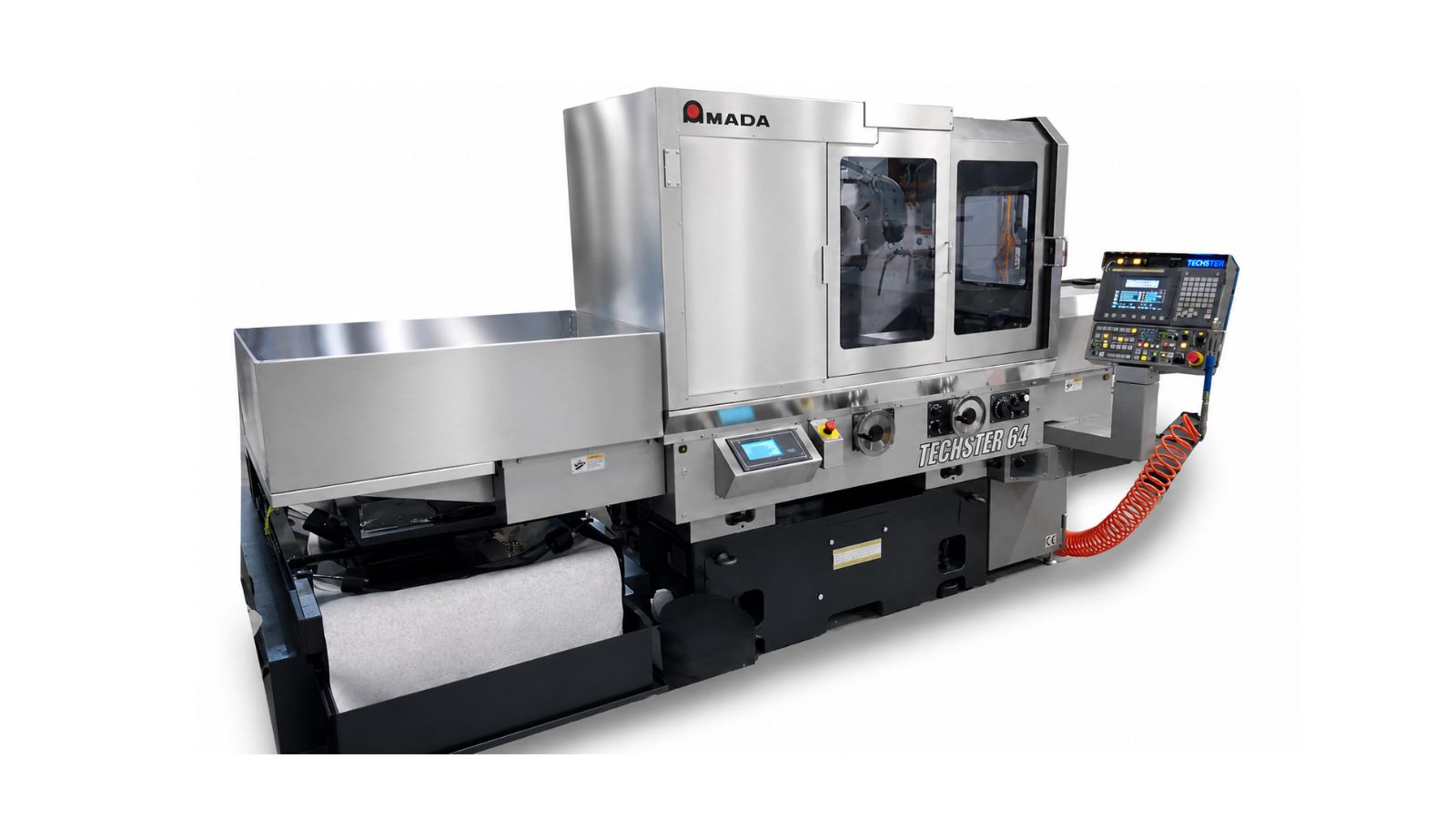

The perfect balance of control, power, and absolute precision

The Techster 64 is engineered to deliver high performance and absolute precision in both profile and surface grinding. Its robust cast-iron structure, equipped with hand-scraped dual-V slideways and a low-center-of-gravity design, ensures exceptional stability and flawless results even on demanding materials such as steel, carbide, and ceramics.
Thanks to the high-resolution digital measuring system and the latest Fanuc control, the Techster 64 offers accurate axis positioning and simplified execution of complex grinding cycles. Standard programs for surfaces, slots, interpolations, and profiles streamline operations and make the machine accessible even to less-experienced operators.
The combination of high-speed table motion up to 300 strokes/min, advanced wheel profiling with the TP3 dresser, and a wide range of available options makes the Techster 64 a versatile and highly capable solution. It is ideal for manufacturers who require repeatable precision, fast setup times, and continuous production reliability.

FORMED WHEEL DRESSING

Several optional dressers are available, including a swivelling rotary dresser. The integrated digital vision system ensures high precision in defining and controlling the formed profile.

ECO MACHINE WITHOUT HYDRAULIC SYSTEM

The fully supported V-V guideway table driven by a ball screw enables precise grinding at any speed, reducing CO₂ emissions by up to 80% and significantly lowering overall environmental impact (Capability of grinding concave forms and tapered profiles).

SPACE-SAVING DESIGN

The sophisticated moving column structure ensures one of the smallest floor space requirements in its class, optimising workshop layout.

FRONT-SIDE OPERATION

Controls positioned on the front side improve machine ergonomics and simplify daily operator tasks.

Hotspots

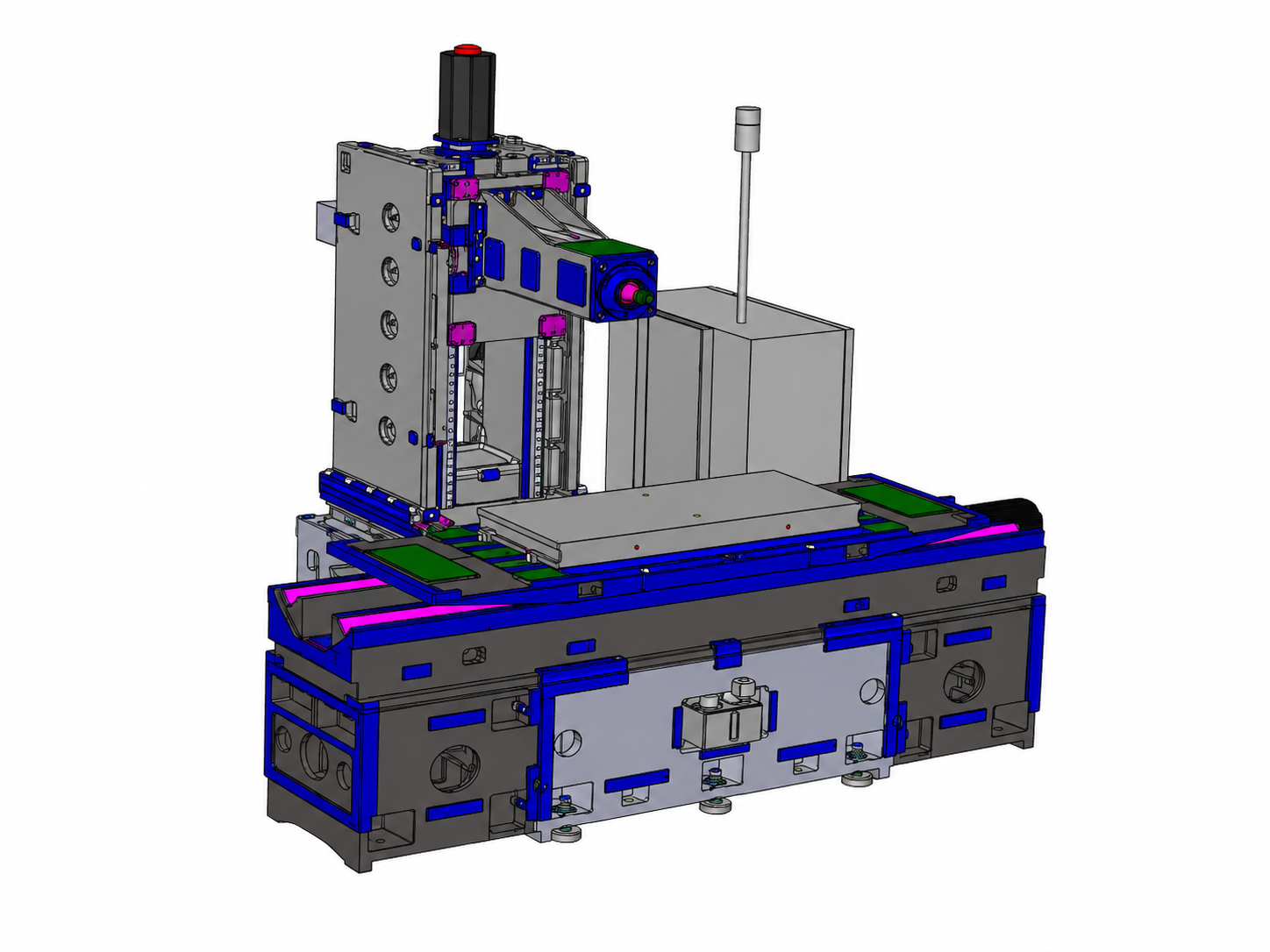

HIGH-RIGIDITY C-FRAME STRUCTURE The C-frame structure is engineered to provide outstanding rigidity and minimise deformation during grinding. This configuration ensures consistent accuracy, excellent axis stability and high machining quality, even in the most demanding applications.

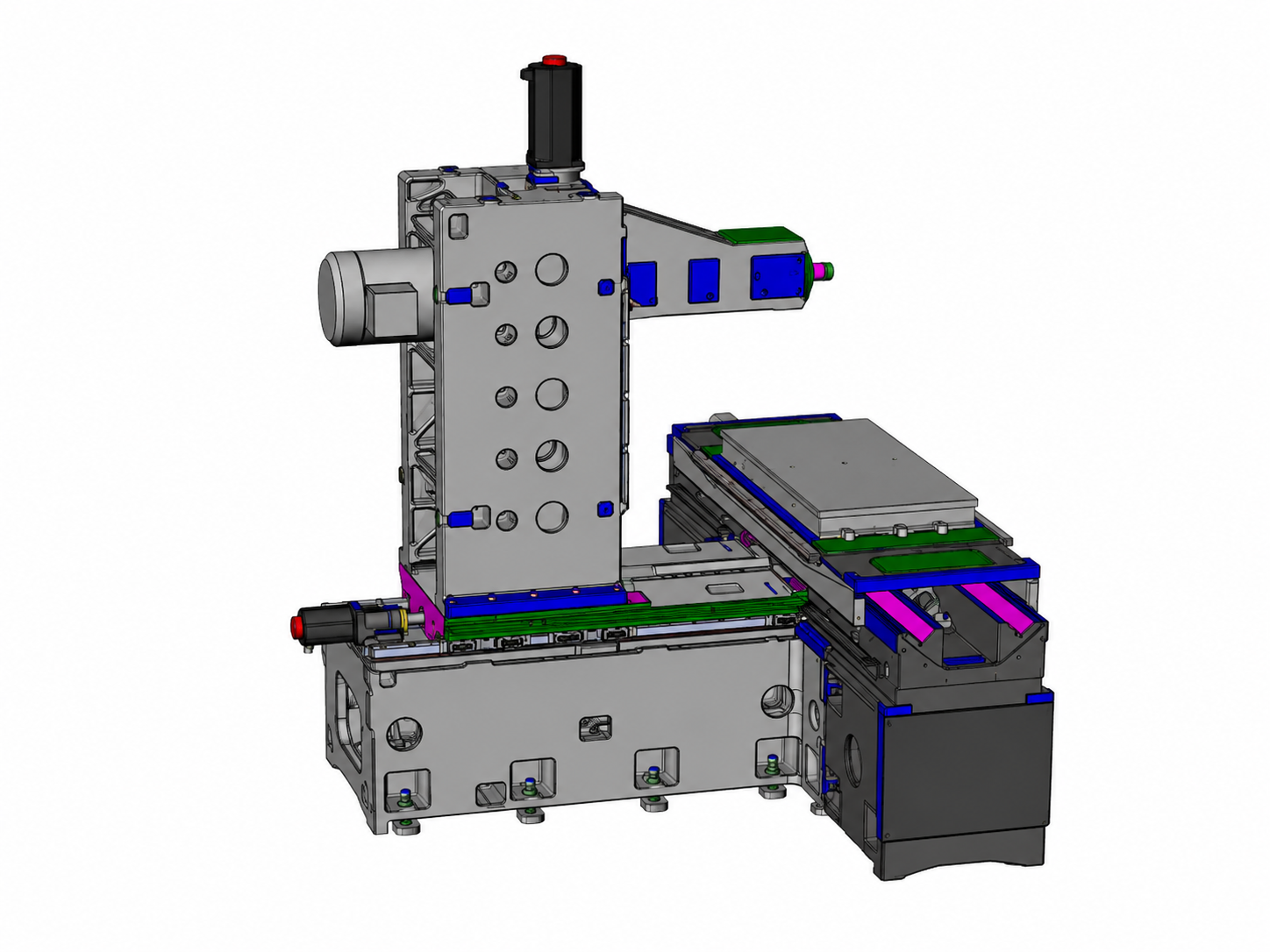

LOW CENTRE-OF-GRAVITY MACHINE FRAME The T-shaped base with a low centre of gravity ensures optimal weight distribution and exceptional machine stability. This design helps minimise vibration and deformation, maintaining accuracy and repeatability over time.

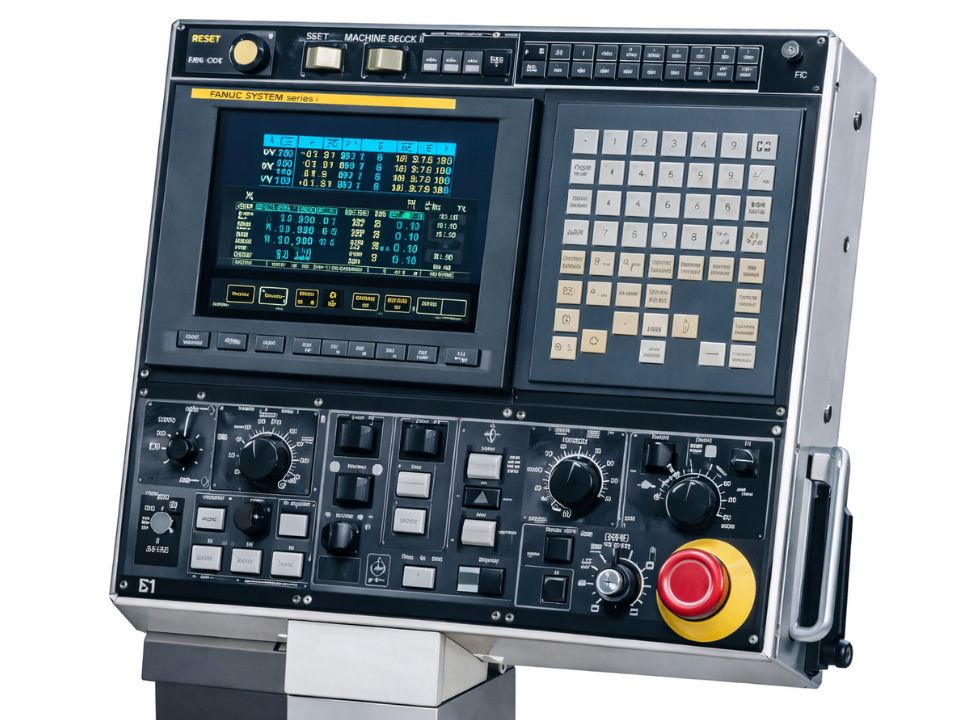

FANUC 32i-FB CNC CONTROL Modern and intuitive CNC control with a clear menu structure and straightforward programming. Designed for fast, efficient operation, it simplifies machine use even for less experienced operators.
HIGH-RIGIDITY C-FRAME STRUCTURE The C-frame structure is engineered to provide outstanding rigidity and minimise deformation during grinding. This configuration ensures consistent accuracy, excellent axis stability and high machining quality, even in the most demanding applications.
LOW CENTRE-OF-GRAVITY MACHINE FRAME The T-shaped base with a low centre of gravity ensures optimal weight distribution and exceptional machine stability. This design helps minimise vibration and deformation, maintaining accuracy and repeatability over time.
FANUC 32i-FB CNC CONTROL Modern and intuitive CNC control with a clear menu structure and straightforward programming. Designed for fast, efficient operation, it simplifies machine use even for less experienced operators.

Technical Data

      TECHSTER 64
Spindle speed   rpm 300 - 2500
Spindle power   kW 7.5
Grinding wheel (Ø ×Bore) mm 355 x 127
Longitudinal table travel (X / Y) mm 780 x 450
Maximum feed rate   mm/min 30000
Minimum increment   µm 0.1
Magnetic chuck size (L × W) mm 600 x 400
Maximum workpiece load   kg 350

Specifications may vary depending on configuration and optional equipment.
