PMH 0804

IDEAL FOR ACHIEVING PRECISE FINISHING ON UPPER AND LOWER SURFACES

/
Back to list
  1. Proizvodi
  2. Cutting, Milling & Grinding
  3. Milling Machines
  4. Plate Milling Machines
  5. PMH 0804

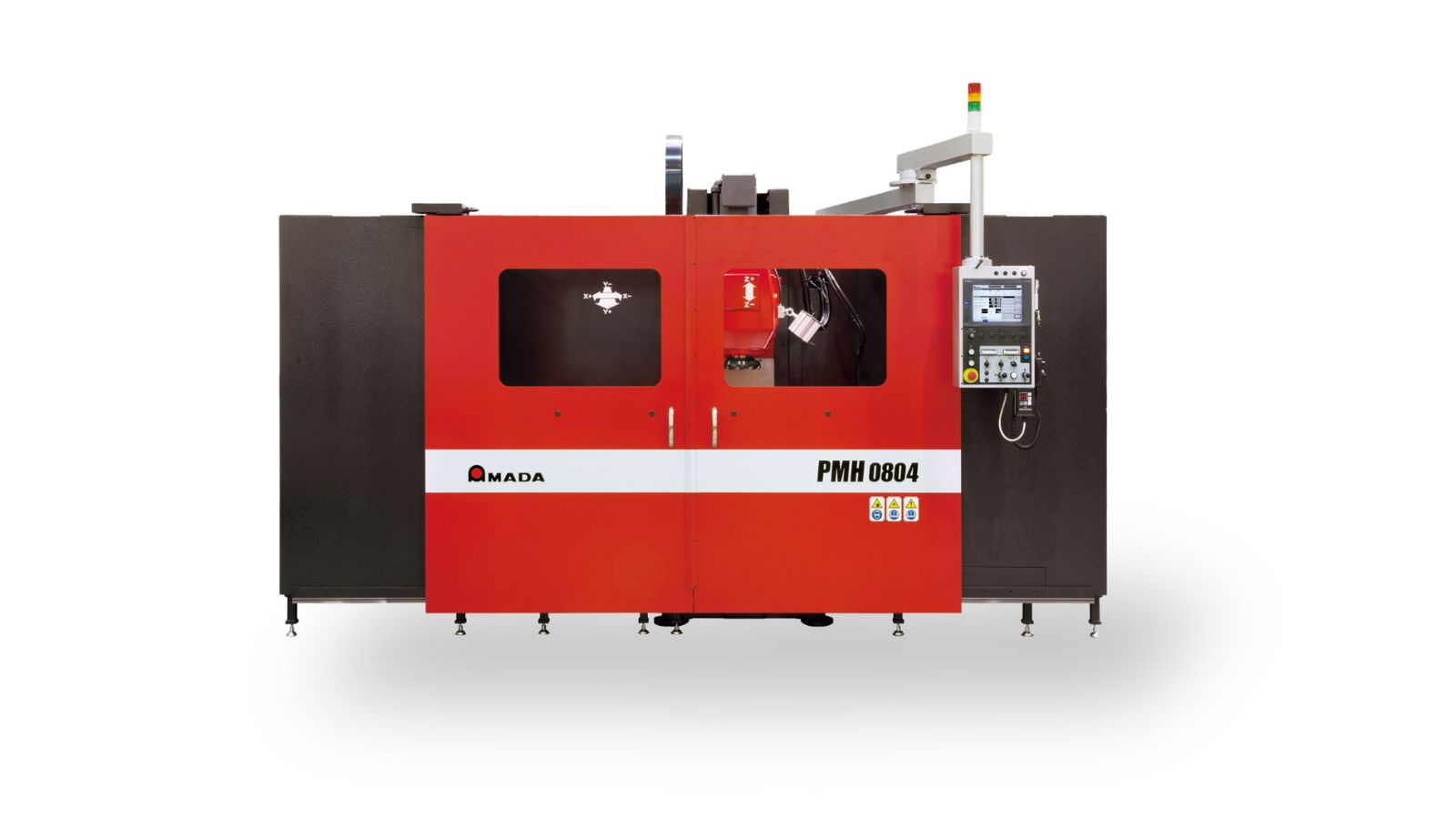

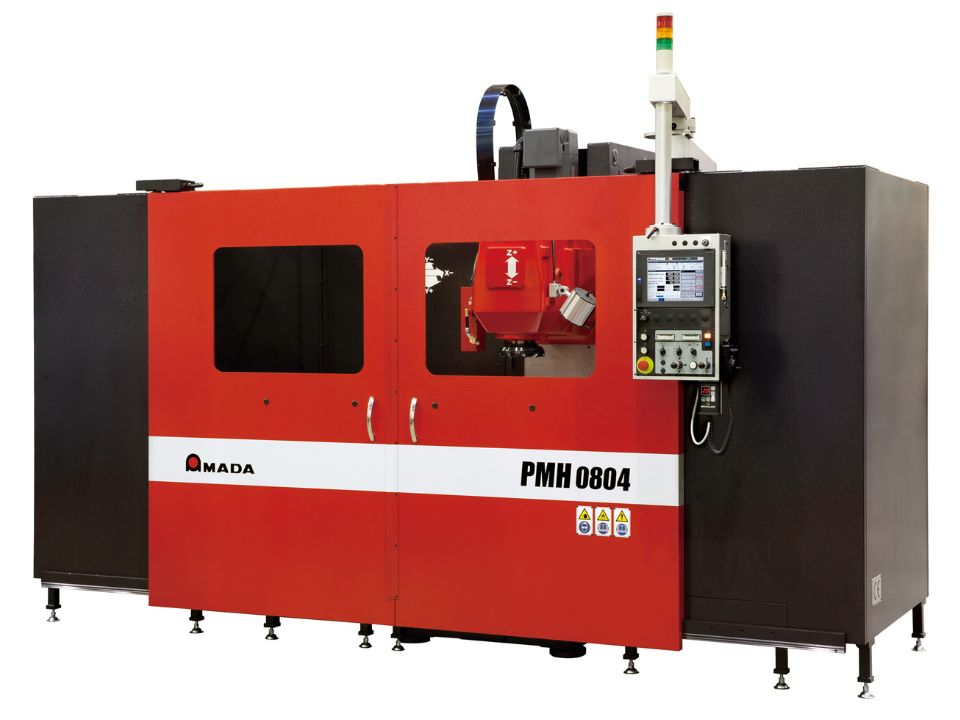

Medium-format plate milling

The PMH 0804 is designed for machining plates up to 800 × 400 × 200 mm, ensuring a uniform finish on both surfaces in a single pass.
Its compact structure facilitates material handling within the working area, making the positioning of heavy or difficult-to-handle parts easier and more efficient.
The CNC control is the same as that used in the THV series, featuring an intuitive interface that simplifies parameter setup and cycle management. Operation via the control panel is immediate and accessible even to less experienced operators.

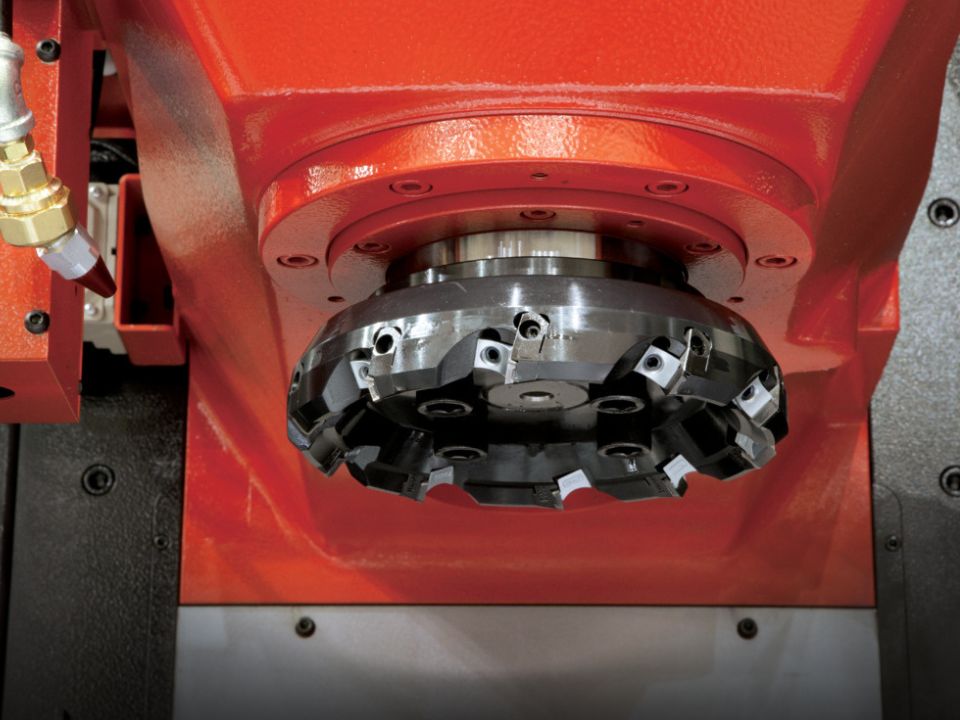

MILLING HEAD

Specifically designed for plate milling, with minimal head inclination to ensure consistent precision and surface quality.

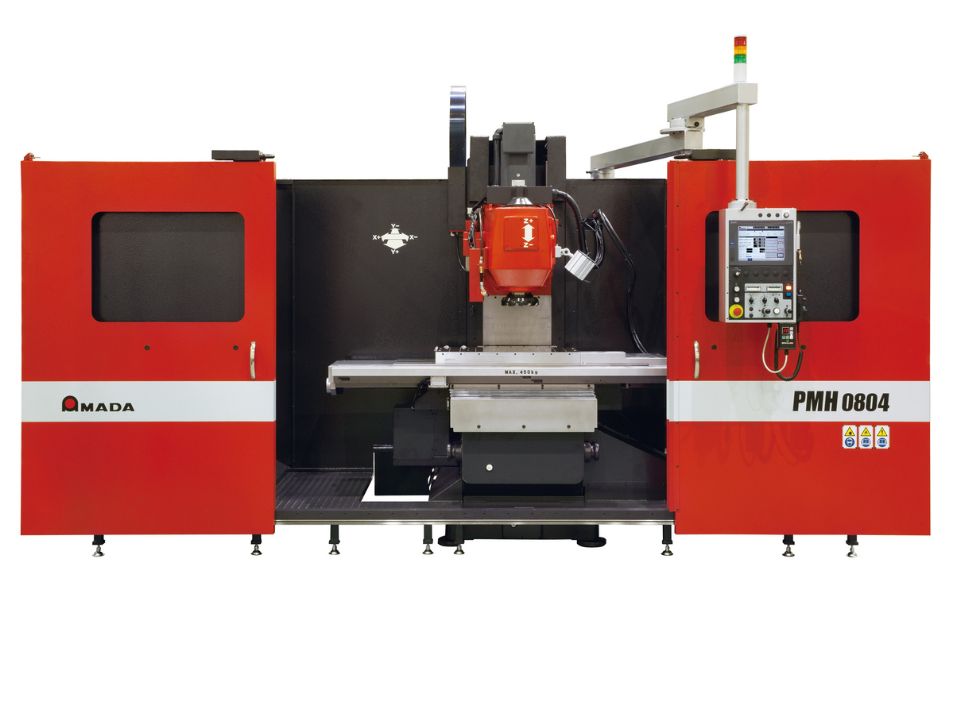

EASILY ACCESSIBLE WORKING AREA

The machine structure is designed to facilitate loading and material handling operations, improving ergonomics and operational speed.

IDEAL COMPLEMENT TO THE THV 460

Clear interface shared with the THV series, enabling fast and straightforward setup.

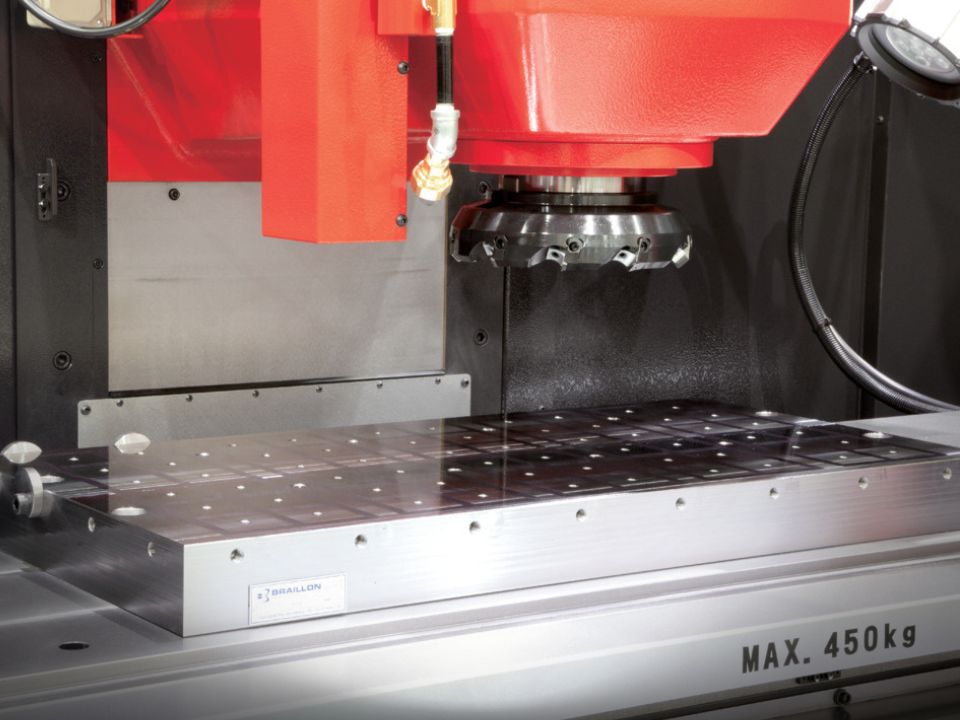

ELECTRO-PERMANENT MAGNETIC CHUCK

Equipped with an electro-permanent magnetic chuck connected to the CNC.

Hotspots

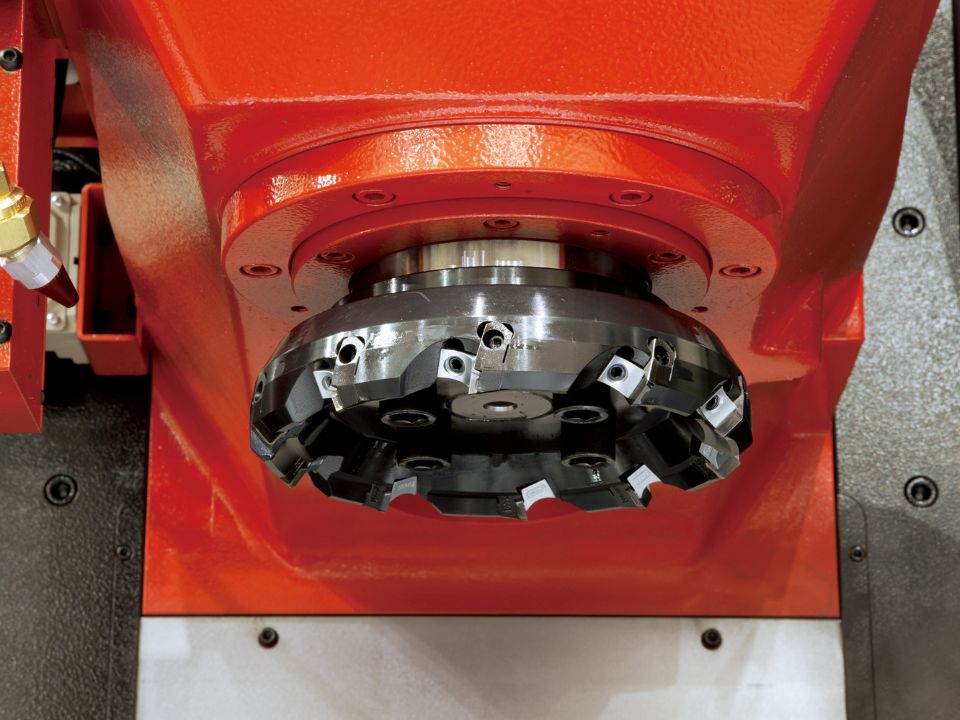

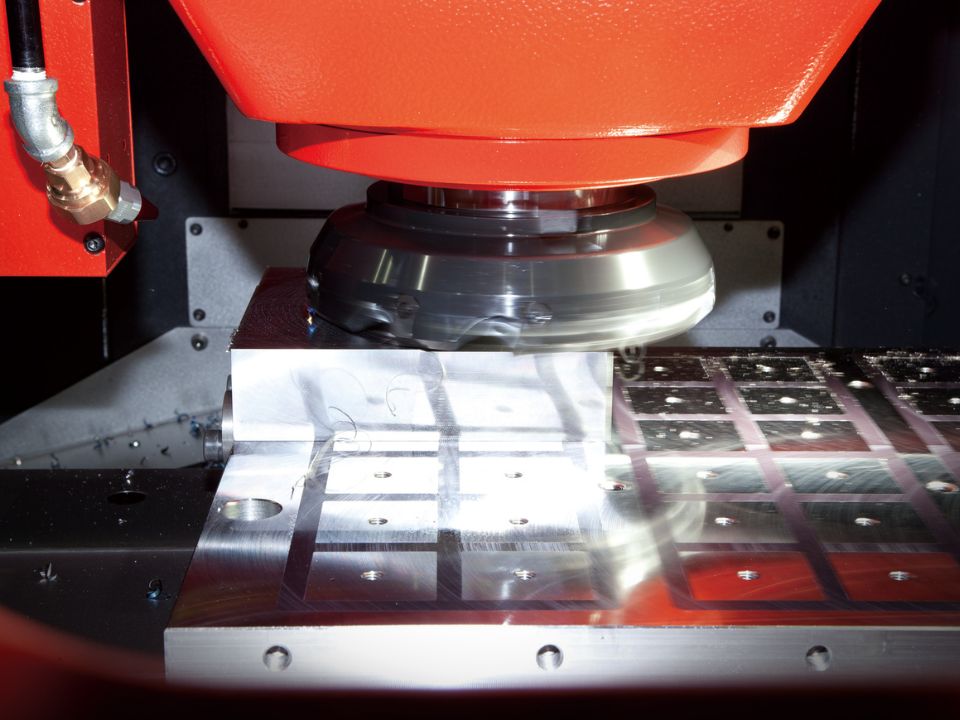

200 MM CUTTER DIAMETER The milling head with a 200 mm diameter ensures precision and stability during machining.
CNC CONTROL SCREEN The CNC control with interactive interface simplifies machine operation, making it accessible even to non-specialized operators.

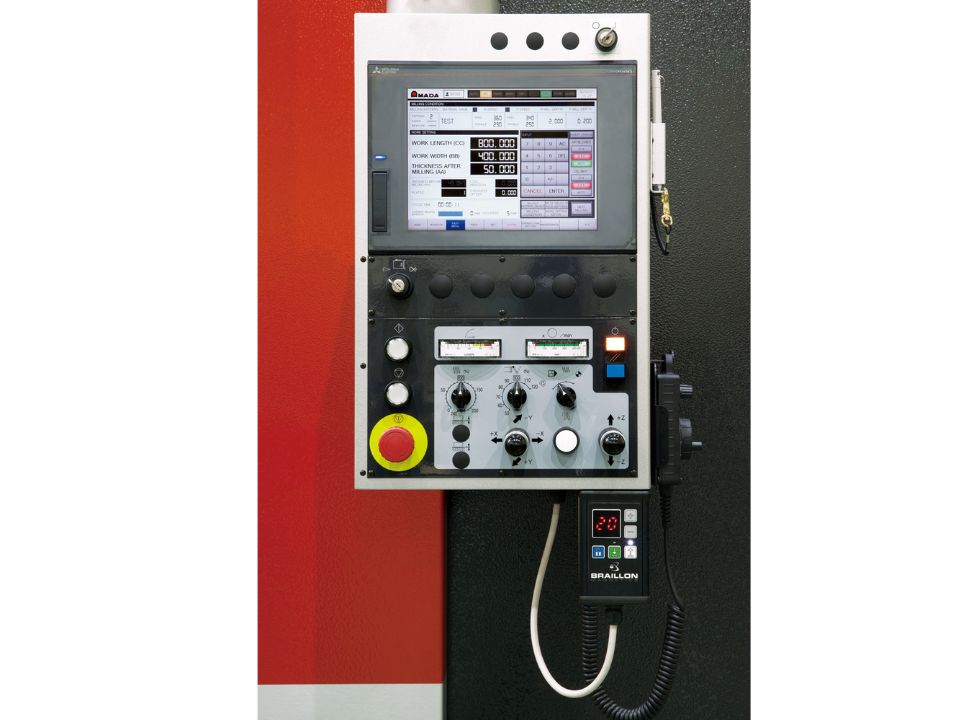

CNC CONTROL Simply entering the raw material dimensions, finished part dimensions, and material type allows the CNC to automatically manage the entire machining process.
200 MM CUTTER DIAMETER The milling head with a 200 mm diameter ensures precision and stability during machining.

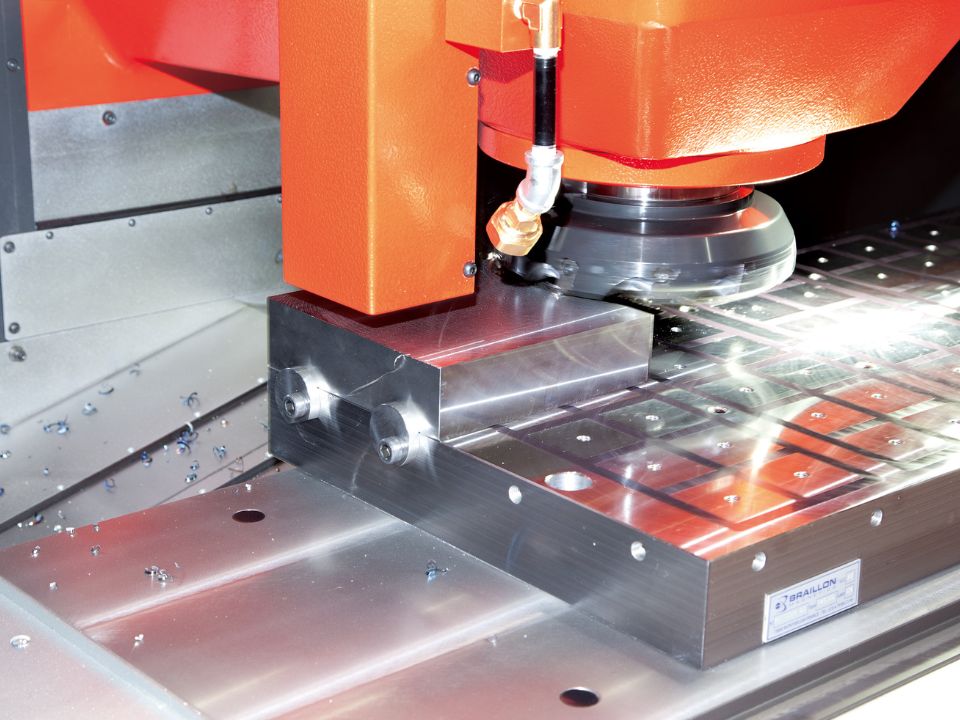

CNC CONTROL SCREEN The CNC control with interactive interface simplifies machine operation, making it accessible even to non-specialized operators.
CNC CONTROL Simply entering the raw material dimensions, finished part dimensions, and material type allows the CNC to automatically manage the entire machining process.

Technical Data

      PMH 0804
Maximum workpiece dimensions (W x L x H) mm 800 × 400 × 200
Cutter diameter   mm 200
Maximum power per spindle   kW 11
Maximum torque per spindle   Nm 403
Maximum workpiece weight   kg 450
Machine weight   kg 5000
