PMH 3015

PERFORMANCE DEDICATED TO MILLING LARGE-SURFACE PLATES

/
Back to list
  1. Proizvodi
  2. Cutting, Milling & Grinding
  3. Milling Machines
  4. Plate Milling Machines
  5. PMH 3015

Designed to ensure stability, consistency and high-quality finishing on very wide surfaces

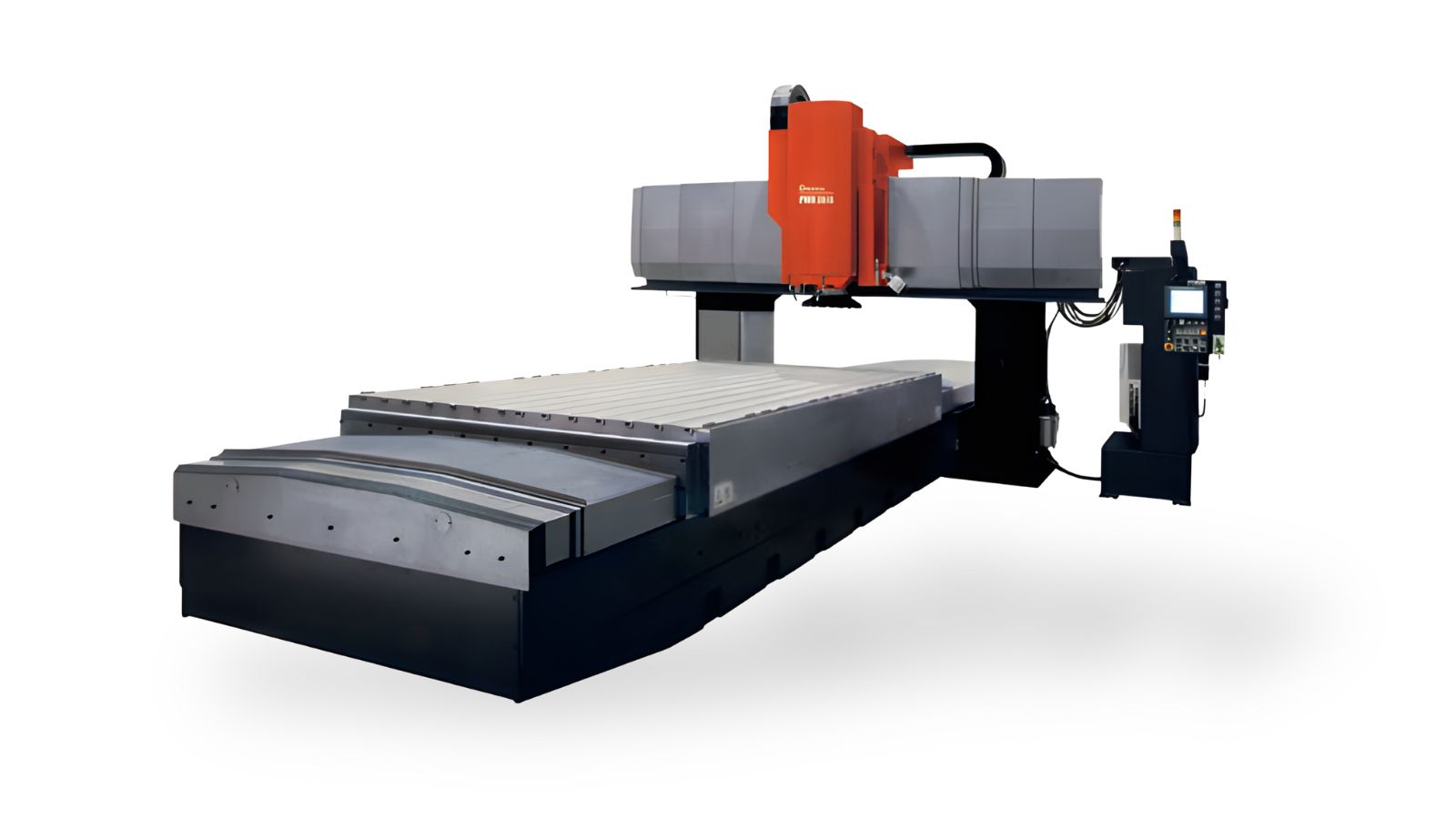

The PMH 3015 is designed for machining large plates, where precision, flatness, and surface uniformity must be maintained across particularly wide working areas.
The moving table facilitates loading and positioning operations, improving ergonomics and making workpiece handling faster and more efficient.
The PMH 3015 ensures rapid chip removal and, thanks to the intuitive CNC control, significantly increases the efficiency and productivity of machining processes.

MILLING HEAD

Specifically designed for plate milling, with minimal head inclination to ensure consistent precision and surface quality.

CLEAN AND PROTECTED WORKING ENVIRONMENT

The full enclosure ensures effective containment of chips and coolant.

UNIFORM AND HIGH-QUALITY SURFACES

The large-diameter Ø 525 mm cutter enables machining of plates up to 500 mm in width in a single pass, eliminating steps and transition marks.

NEARLY TRIPLE TORQUE COMPARED TO CONVENTIONAL MILLING MACHINES

The PMH 3015 is equipped with a high-performance ISO-60 spindle that, under comparable operating conditions, delivers up to 2,163 Nm of torque, nearly three times that of conventional milling machines with ISO-50 spindles.

Hotspots

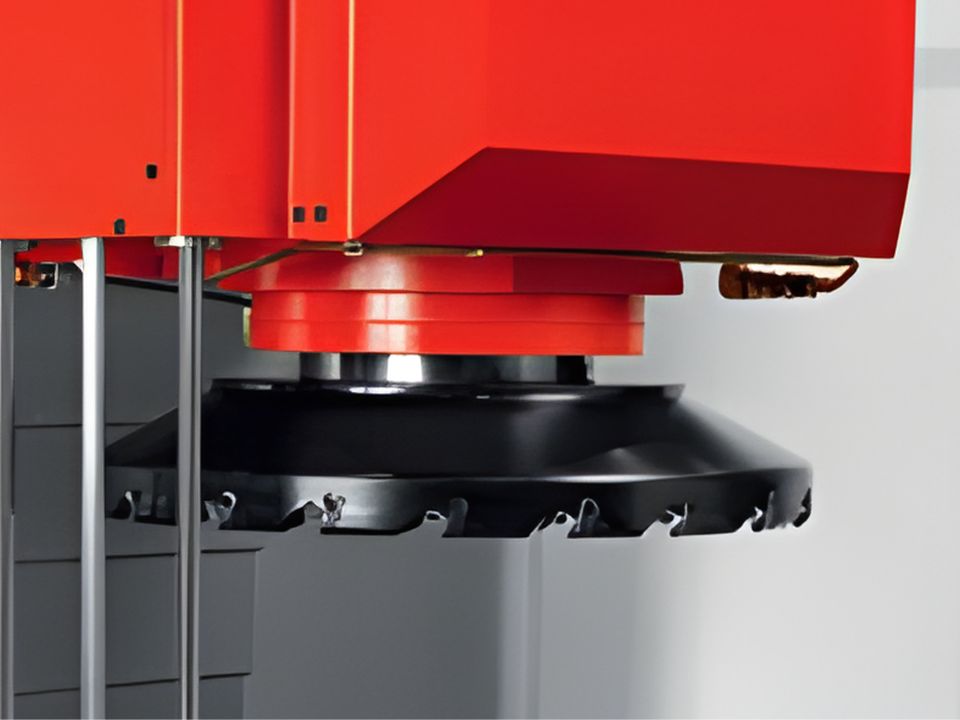

525 MM CUTTER DIAMETER The milling head with a 525 mm diameter ensures precision and stability during machining.
CNC CONTROL Simply entering the raw material dimensions, finished part dimensions, and material type allows the CNC to automatically manage the entire machining process.

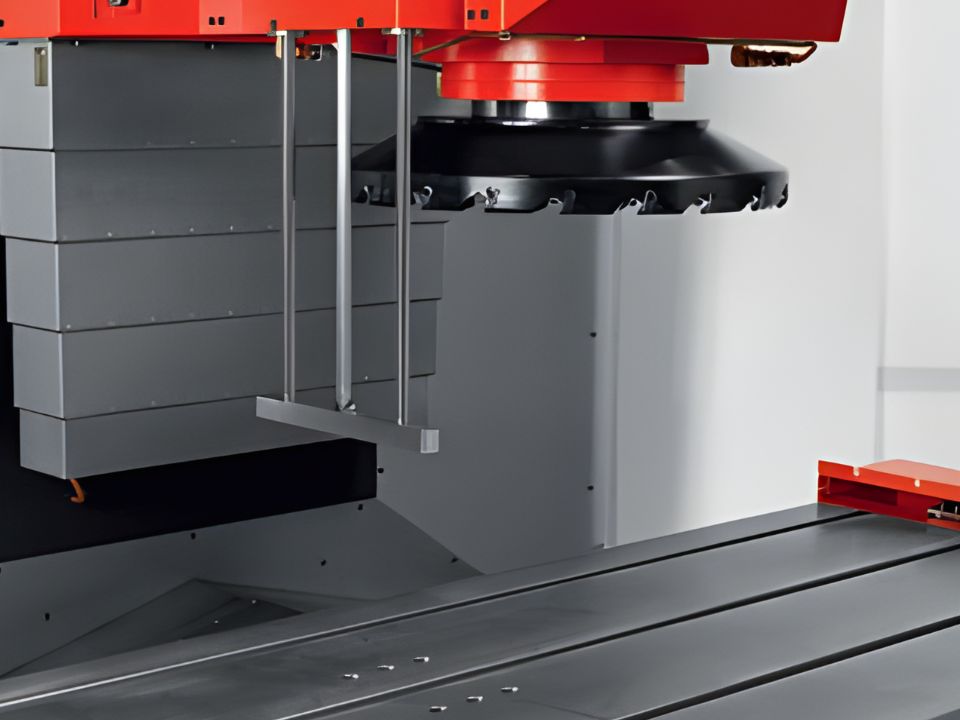

CNC CONTROL SCREEN The CNC control with an interactive interface simplifies machine operation, making it accessible even to non-specialized operators.
525 MM CUTTER DIAMETER The milling head with a 525 mm diameter ensures precision and stability during machining.
CNC CONTROL Simply entering the raw material dimensions, finished part dimensions, and material type allows the CNC to automatically manage the entire machining process.
CNC CONTROL SCREEN The CNC control with an interactive interface simplifies machine operation, making it accessible even to non-specialized operators.

Technical Data

      PMH 3015 Standard Spindle PMH 3015 High-Speed Spindle*
Maximum workpiece dimensions (W x L x H) mm 3000 × 1500 × 350 3000 × 1500 × 350
Cutter diameter   mm 525 525
Maximum power per spindle   kW 30 30
Maximum torque per spindle   Nm 2163 1746
Maximum spindle speed   min⁻¹ 250 500
Maximum workpiece weight   kg 13000 13000
Machine weight   kg 22000 22000

*Optional
