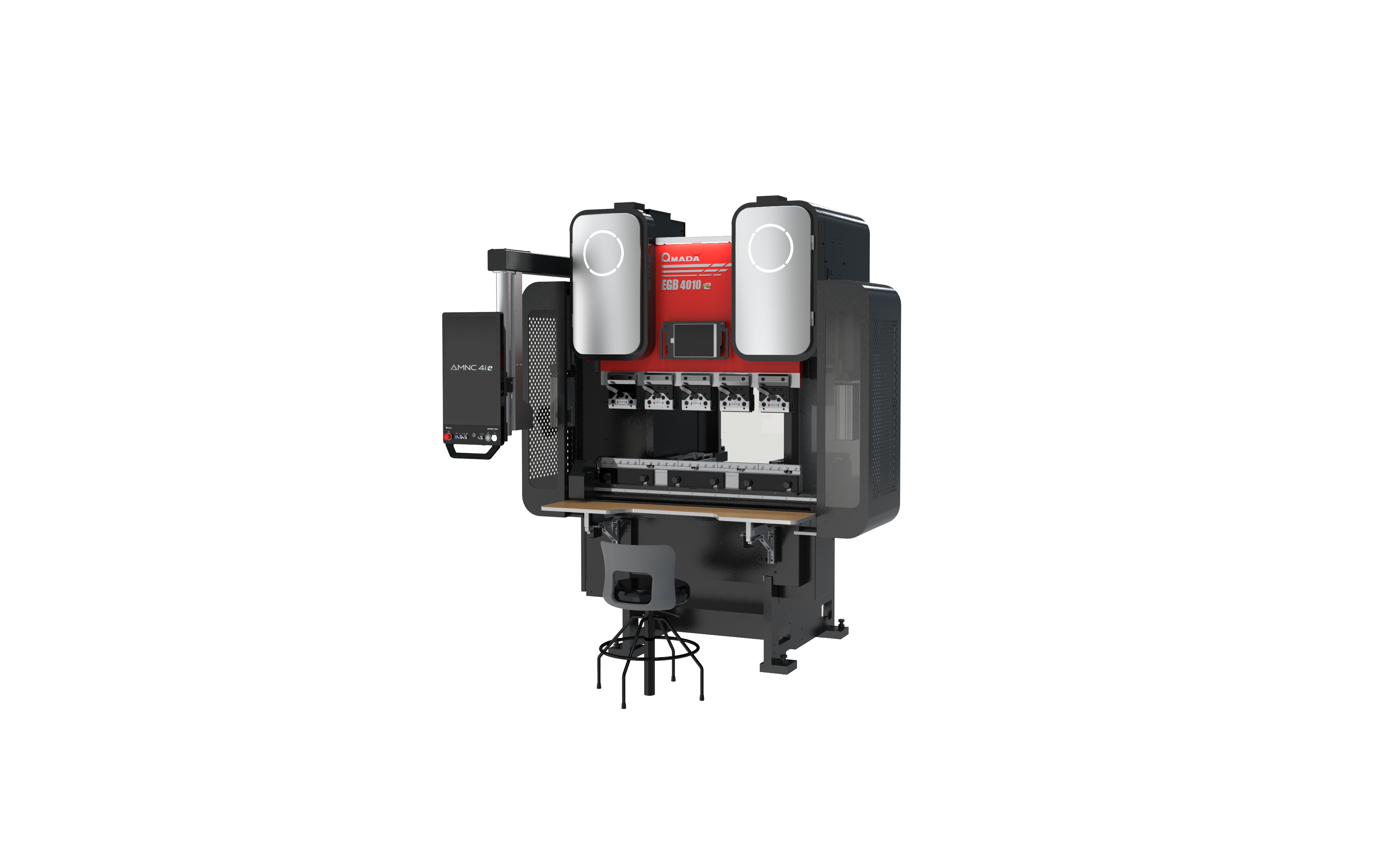

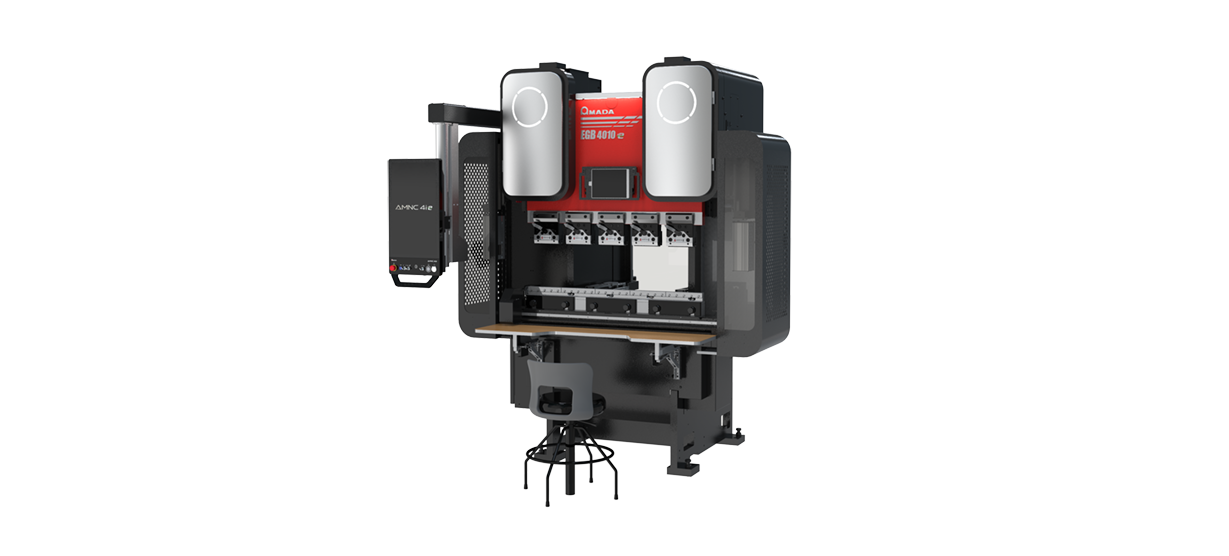

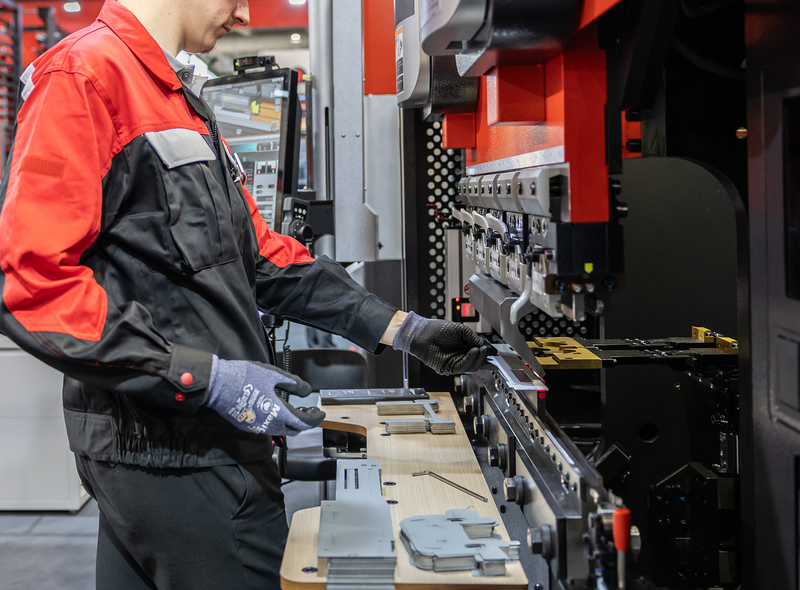

AMADA expands its line of ergonomic press brakes with the EGB-4010e, an ideal compact solution that makes work easier, increases part output and quality, and provides a comfortable and safe environment for the operator.
The AMADA EGB-4010e represents the ultimate machine for flexible and efficient production of small complex components.
The EGB servo-electronic press brake is equipped with new motors, bringing together more than 20 years of experience in developing this technology to achieve high approach, bending and return speeds for fast part cycle times.

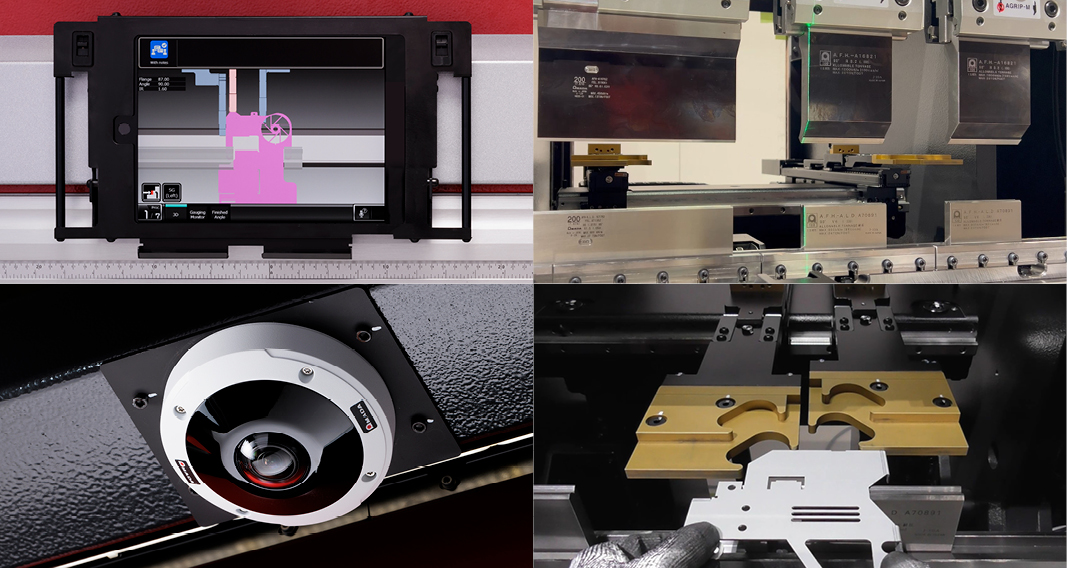

The EGB-4010e is equipped with the new AMNC 4ie numerical control with a Lite mode and an augmented reality camera for rapid and controlled positioning of complex parts. It is also predisposed to receive a remote HMI tablet and can be associated with a new bending indicator Bi-S II.
| EGB-4010e | |
|---|---|
| Numerical Control | AMNC 4ie |
| Press capacity (kN) | 400 |
| Distance between frames (mm) | 710 |
| Open height (mm) | 420 |
| Stroke (mm) | 150 |
| C-throat (mm) | 230 |
| Oil capacity (l) | 0 |
| Approach speed (mm/s) | 250 |
| Bending speed (mm/s) | 25 |
| Return speed (mm/s) | 250 |
| Num. of Axis | 7 |
Dimensions: | |
| Length (mm) | 1890 |
| Width (mm) | 1624 |
| Height (mm) | 2300 |
| Weight | 2800 |
Some devices of functions could be available as option or separately from the machine.
